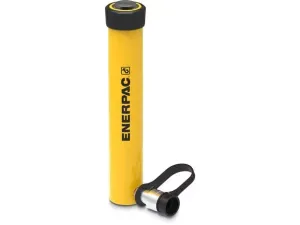

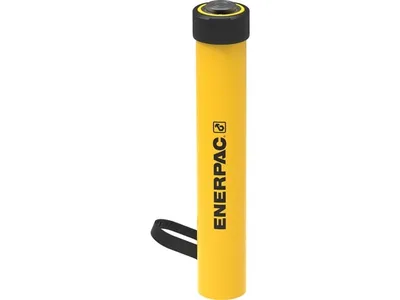

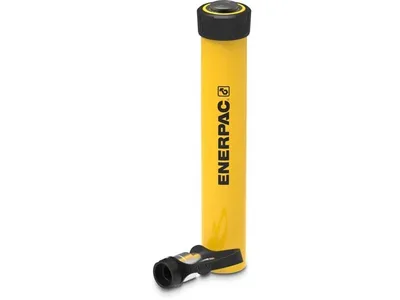

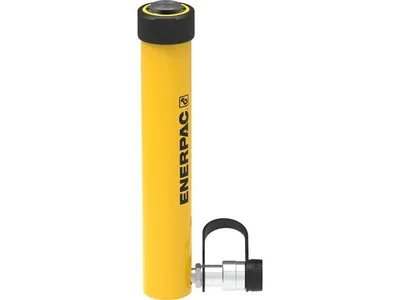

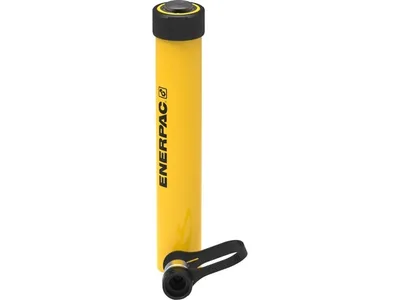

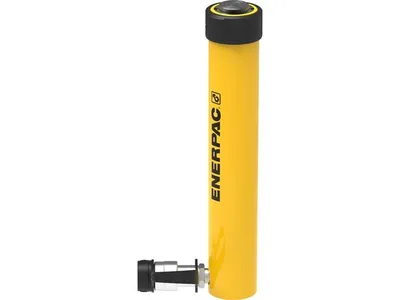

Enerpac RC1010 10 Ton Hydraulic Cylinder

RC1010 is a single-acting, spring-return general purpose hydraulic cylinder from the Enerpac RC Series (RC-TRIO). Its pre-tensioned Trio hybrid spring system provides fast plunger retraction. A bearing system with composite wear bands and a strengthened stop ring provides resistance to side loads. Key specifications: 10 ton class (11.2 ton) capacity, 257 mm (10.13 in) stroke, 349 mm collapsed height, 57 mm outside diameter and 6.4 kg weight. The collar thread is 2 1/4" - 14 UN and the base mounting hole bolt circle is 40 mm. The surface is painted. It is supplied with a CR400 coupler and dust cap. It is designed for lifting and pushing applications and can be used in all positions. Typical uses include maintenance, assembly, heavy equipment positioning and general industrial hydraulic work.
