How can I get a price quote for Enerpac RR1012?

You can request a fast quote for Enerpac RR1012 from Yılsa Engineering. Reference part number CEY-8EF3B033DA94. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RR1012 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RR1012 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RR1012?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

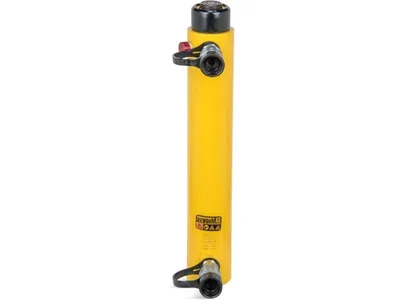

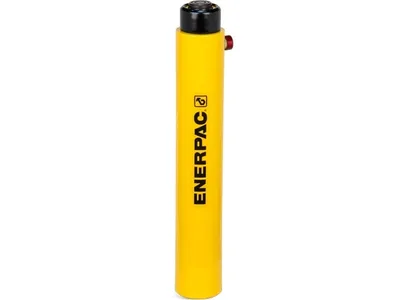

Enerpac RR1012 11.1 ton Hydraulic Cylinder

Enerpac RR1012; 11.1 ton capacity, 305 mm stroke, double-acting general purpose hydraulic cylinder with hydraulic return.

EnerpacMFR # RR1012SKU # CEY-8EF3B033DA94

Cylinder Class10 ton

Stroke305 mm (12 in)

Collapsed Height (A)457 mm (18 in)

Outside Diameter D73 mm (2.88 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U– mm

Have questions?Chat on WhatsApp

About This Product

RR1012 is a double-acting general purpose hydraulic cylinder from the RR series. It offers 11.1 ton capacity and 305 mm (12 in) stroke; the plunger is driven hydraulically in both directions, allowing controlled plunger speed. Collapsed height is 457 mm, outside diameter is 73 mm and weight is 14 kg. It has a painted finish and a 2 1/4" - 14 collar thread. A CR400 coupler is included. It is used for lifting, lowering, pushing and pulling in high-cycle applications in construction and manufacturing.

Features and Benefits

Collar and plunger threads for easy fixturing
Baked enamel finish for increased corrosion resistance
Removable hardened saddle protects the plunger during lifting and pressing
Built-in safety valve prevents accidental over-pressurization
Plunger wiper reduces contamination and extends cylinder life
CR400 coupler included

Enerpac RR1012

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class10 ton

Stroke305 mm (12 in)

Collapsed Height (A)457 mm (18 in)

Outside Diameter D73 mm (2.88 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U– mm

Collar Thread (W)2 1/4" - 14 (2¼”- 14)

Surface TreatmentPaint

Weight14 kg (31 lbs)

Oil Capacity (Advance)442 cm³ (26.8 in³)

Base Mounting Holes Thread Depth Z– mm

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)147 cm³ (9 in³)

ApplicationsLift, Lower, Push, Pull

Base Mounting Holes Thread V–

Maximum Cylinder Capacity (Advance)101 kN (11.1 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)42,9 mm (1.69 in)

Product TypeGeneral Purpose Cylinder

SeriesRR

Plunger Internal Thread1" - 8

Base to Advance Port H36 mm (1.44 in)

Model Type11.1 Ton Capacity, 12 in. Stroke

Max. Cylinder Retract Capacity4 ton

Optional Tilt Saddle Diameter (J1)1.38 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)57 mm (2.25 in)

Plunger Internal Thread O1"- 8

Saddle Diameter J35 mm (1.38 in)

Country of OriginUnited States

Collar Thread Length (X)26 mm (1.06 in)

Saddle Diameter J135 mm

Extended Height (B)762 mm (30 in)

Cylinder Effective Area (Advance)14,5 cm² (2.23 in²)

Cylinder Effective Area (Retract)4,8 cm²

Plunger TypeSolid

Cylinder Effective Area (Retract)0.8 in²

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)14 mm (0.55 in)

Saddle Protrusion from Plunger K6 mm (0.24 in)

Saddle Protrusion from Plunger K16 mm

Plunger Thread Length (P)25 mm (1 in)

Plunger Diameter F34,9 mm (1.38 in)

Documents & CAD

For this product 1

2D DrawingRR1012 drawingPDF·1.1 MB

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetHydraulic Ram - 10 TonPDF·79 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·174 KB·English

BrochureRR-Series Cylinders Double-Acting Long Stroke; EnglishPDF·409 KB

CAD Files 3

3D Model
