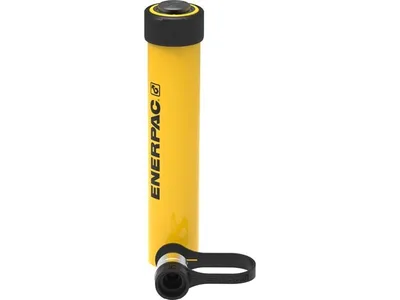

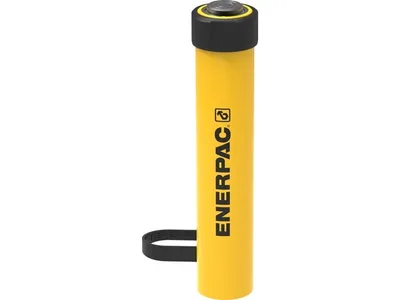

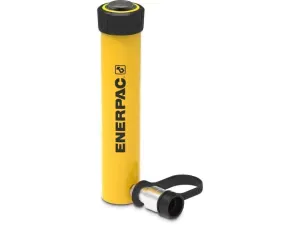

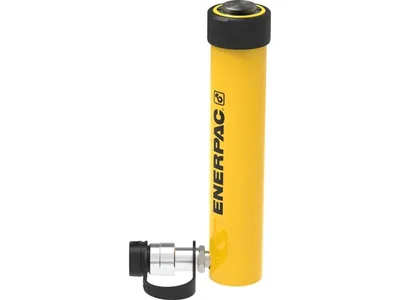

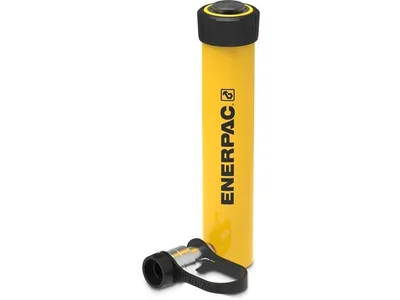

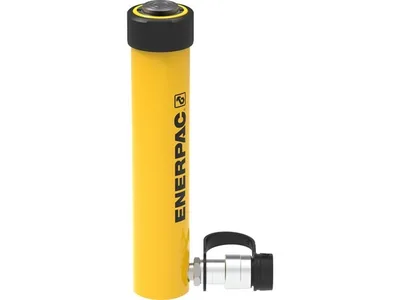

Enerpac RC108 11.2 ton Hydraulic Cylinder

Enerpac RC108; 11.2 ton capacity, 203 mm stroke, single-acting spring-return general purpose hydraulic cylinder.

EnerpacMFR # RC108SKU # CEY-8EF3B033E74F

Cylinder Class10 ton

Stroke203 mm (8 in)

Collapsed Height (A)298 mm (11.75 in)

Outside Diameter D57 mm (2.25 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U40 mm (1.56 in)

Have questions?Chat on WhatsApp

About This Product

RC108 is a single-acting, spring-return general purpose hydraulic cylinder from the RC series. It has a capacity of 11.2 ton and a stroke of 203 mm, and is used for lifting and pushing applications. Collapsed height is 298 mm, outside diameter is 57 mm and weight is 5.4 kg. Base mounting holes are on a 40 mm bolt circle and the collar thread is 2 1/4" - 14 UN. The surface is painted. A CR400 coupler and dust cap are included. It can be used in any position and suits maintenance, assembly and general industrial work.

Features and Benefits

Bearing system with composite wear bands for sideload resistance
Trio Hybrid pre-tensioned spring system for faster retraction
Strengthened stop ring improves durability
Polyethylene seals and plunger wiper for long service life
Collar threads and base mounting holes for easy fixturing
Baked enamel finish; CR400 coupler and dust cap included

Enerpac RC108

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class10 ton

Stroke203 mm (8 in)

Collapsed Height (A)298 mm (11.75 in)

Outside Diameter D57 mm (2.25 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U40 mm (1.56 in)

Collar Thread (W)2 1/4" - 14 UN

Surface TreatmentPaint

Weight5,4 kg (12 lbs)

Oil Capacity (Advance)294 cm³ (17.89 in³)

Base Mounting Holes Thread Depth Z12 mm (0.5 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V5/16"- 18 un

Maximum Cylinder Capacity (Advance)101 kN (11.2 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)42,8 mm (1.69 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal Thread1" - 8

Base to Advance Port H19 mm (0.75 in)

Model Type11.2 Ton Capacity, 8 in. Stroke

Optional Tilt Saddle Diameter (J1)1.38 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J35 mm (1.38 in)

Country of OriginChina

Collar Thread Length (X)27 mm (1.06 in)

Saddle Diameter J135 mm

Extended Height (B)501 mm (19.75 in)

Cylinder Effective Area (Advance)14,4 cm² (2.24 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)14 mm (0.55 in)

Saddle Protrusion from Plunger K6 mm (0.25 in)

Saddle Protrusion from Plunger K16 mm

Plunger Thread Length (P)19 mm (0.75 in)

Plunger Diameter F38,1 mm (1.5 in)

Documents & CAD

Series documents 7· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetParts Kits (Europe Only)PDF·225 KB·English

Repair Parts SheetCylinders - RC-101, RC-102, RC-104, RC-106, RC-108, RC-1010, RC-1012, RC-1014PDF·64 KB·English

Repair Parts SheetRC Duo Hydraulic Cylinders RPSPDF·334 KB·English

Repair Parts SheetRC10 Series Hydraulic Cylinders RPSPDF·507 KB·English

BrochureRC-Series General Purpose Cylinders; EnglishPDF·591 KB

CAD Files 3

3D Model
