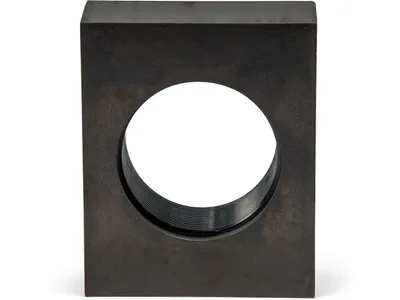

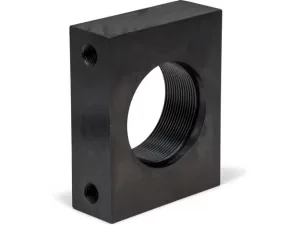

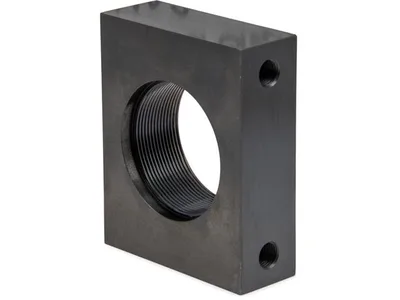

Enerpac AW102 10 ton Mounting Block
Enerpac AW102; mounting block for 10 ton RC cylinders, 2 1/4"-14 UN thread, 100 × 82 mm dimensions.
Dimension G7/16" - 20 UN mm (7/16" - 20 in)
Dimension E30 mm (1.18 in)
Country of OriginUnited States
Dimension F76 mm (3 in)
Dimension D16 mm (0.63 in)
Compatible Cylinder SeriesRC
About This Product
The AW102 is a cylinder mounting block from the Enerpac AW series. It is used to fix 10 ton RC series hydraulic cylinders in place.
The cylinder mounting thread is 2 1/4"-14 UN. Main dimensions are B: 100 mm, C: 82 mm, D: 16 mm, E: 30 mm, F: 76 mm and H: 58 mm; the mounting bolt thread G is 7/16-20 UN. Country of origin is the United States.
In industrial tool and workholding applications, it provides a secure and repeatable way to mount RC cylinders to fixtures, presses or machine frames.
Features and Benefits
- Compatible with 10 ton RC series cylinders
- 2 1/4"-14 UN cylinder mounting thread
- 7/16-20 UN mounting holes for easy installation
- Compact dimensions: 100 × 82 mm, 58 mm height
Enerpac AW102
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension G7/16" - 20 UN mm (7/16" - 20 in)
Dimension E30 mm (1.18 in)
Country of OriginUnited States
Dimension F76 mm (3 in)
Dimension D16 mm (0.63 in)
Compatible Cylinder SeriesRC
Dimension C82 mm (3.25 in)
Dimension B100 mm (3.94 in)
Compatible Cylinder SeriesRC
Dimension H58 mm (2.31 in)
Product TypeMounting Block
SeriesAW
Capacity Class10 ton
For Use with Cylinder Capacity10 ton
Dimension A2 1/4" - 14UN mm (2 1/4" - 14 in)
Product LineIndustrial Tools, Workholding Tools
