How can I get a price quote for Enerpac RC101?

You can request a fast quote for Enerpac RC101 from Yılsa Engineering. Reference part number CEY-55221B12DC56. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RC101 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RC101 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RC101?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

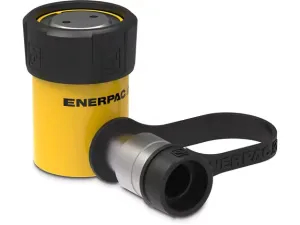

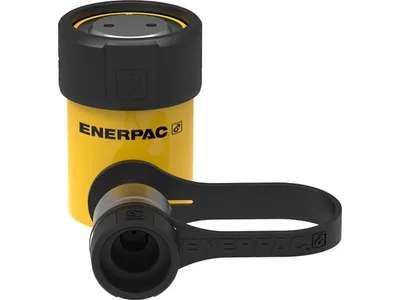

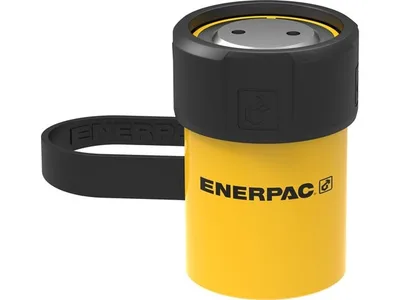

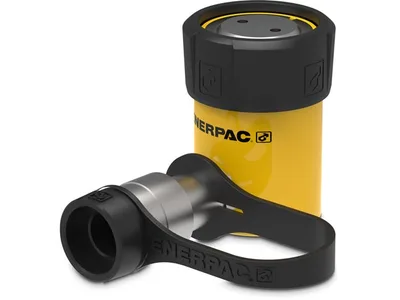

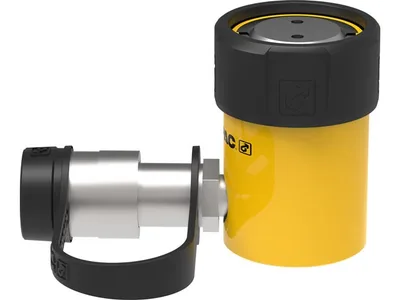

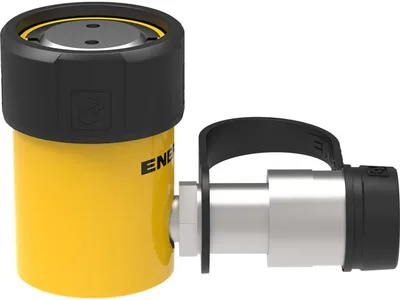

Enerpac RC101 11.2 ton Hydraulic Cylinder

Enerpac RC101; 11.2 ton capacity, 26 mm stroke, single-acting, spring-return general purpose hydraulic cylinder.

EnerpacMFR # RC101SKU # CEY-55221B12DC56

Cylinder Class10 ton

Stroke26 mm (1 in)

Collapsed Height (A)90 mm (3.53 in)

Outside Diameter D57 mm (2.25 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U40 mm (1.56 in)

Have questions?Chat on WhatsApp

About This Product

RC101 is a single-acting, spring-return general purpose hydraulic cylinder from the RC series. It offers 11.2 ton capacity, 26 mm (1.00 in) stroke and 90 mm collapsed height. Outside diameter is 57 mm, the base mounting hole bolt circle is 40 mm, collar thread is 2 1/4"-14 UN and weight is 1.8 kg. The plunger advances under hydraulic pressure and retracts via a pre-tensioned Trio Hybrid spring system. A bearing system with composite wear bands and a strengthened stop ring provide side load resistance. The baked enamel finish improves corrosion resistance, and the cylinder can be used in any position. It is used for lifting and pushing in assembly, maintenance and workshop applications where a short stroke is sufficient. It is supplied with a CR400 coupler and dust cap.

Features and Benefits

Trio Hybrid pre-tensioned spring system provides faster retraction
Bearing system with composite wear bands improves side load resistance
High-grade polyethylene seals and plunger wiper extend service life
Collar and plunger threads and base mounting holes enable easy fixturing
Designed for use in all positions; baked enamel finish
Includes CR400 coupler and dust cap

Enerpac RC101

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class10 ton

Stroke26 mm (1 in)

Collapsed Height (A)90 mm (3.53 in)

Outside Diameter D57 mm (2.25 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U40 mm (1.56 in)

Collar Thread (W)2 1/4" - 14 UN

Surface TreatmentPaint

Weight1,8 kg (4 lbs)

Oil Capacity (Advance)38 cm³ (2.24 in³)

Base Mounting Holes Thread Depth Z12 mm (0.5 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V5/16"- 18 un

Maximum Cylinder Capacity (Advance)101 kN (11.2 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)42,8 mm (1.69 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal Thread#10 - 24un

Base to Advance Port H19 mm (0.75 in)

Model Type11.2 Ton Capacity, 1 in. Stroke

Product LineIndustrial Tools

Saddle Diameter J- mm

Country of OriginChina

Collar Thread Length (X)27 mm (1.06 in)

Extended Height (B)116 mm (4.53 in)

Cylinder Effective Area (Advance)14,4 cm² (2.24 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Saddle Protrusion from Plunger K- mm

Plunger Thread Length (P)6 mm (0.25 in)

Plunger Diameter F38,1 mm (1.5 in)
