How can I get a price quote for Enerpac ATM2?

You can request a fast quote for Enerpac ATM2 from Yılsa Engineering. Reference part number CEY-55221B118E25. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ATM2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ATM2 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ATM2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

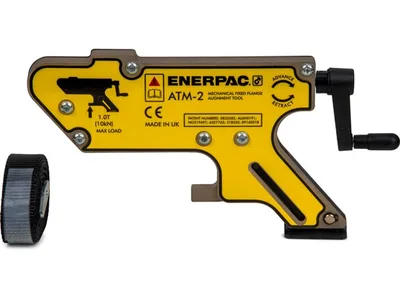

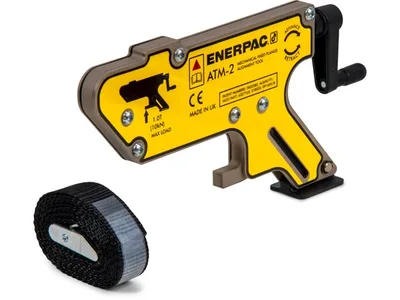

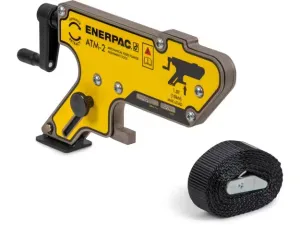

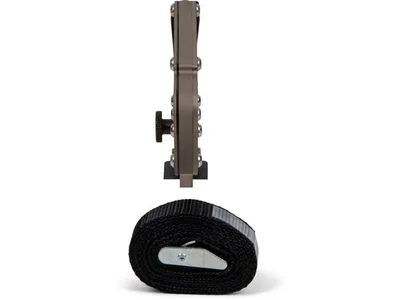

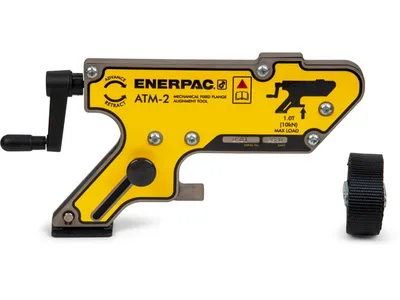

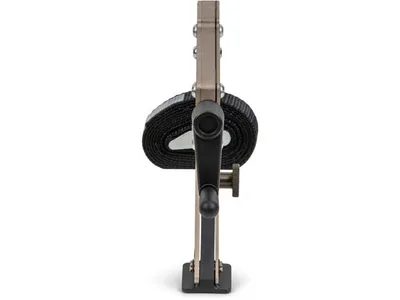

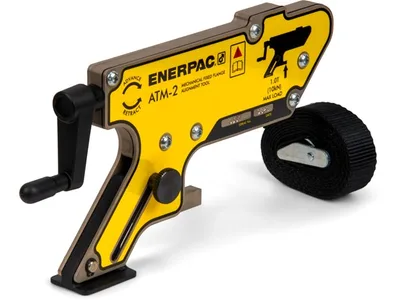

Enerpac ATM2 1 Ton Flange Alignment Tool

Enerpac ATM2; 1 ton (10 kN) capacity, 14–82 mm flange wall thickness, min. 16 mm bolt, mechanical flange alignment tool requiring no external power.

EnerpacMFR # ATM2SKU # CEY-55221B118E25

Maximum Reaction Force10 kN (1 ton)

Country of OriginUnited Kingdom

Length292 mm (11.5 in)

Flange Wall Thickness14 - 82 mm (.55 - 3.29 in)

ApplicationsLift, Lower

Product TypeMechanical Flange Alignment Tool

Have questions?Chat on WhatsApp

About This Product

ATM2 is a mechanical flange alignment tool from the Enerpac ATM series. It corrects twist and rotational flange misalignment during pipework construction or maintenance so that bolts can be placed into the joint, without the need for an external power source. Maximum reaction force is 1 ton (10 kN), for flange wall thicknesses of 14–82 mm (0.55–3.29 in). Minimum bolt size and minimum bolt hole diameter are 16 mm. Dimensions are 292 mm length and 193 mm height, and weight is 1.6 kg (3.5 lbs). Country of origin is the United Kingdom. It is suitable for most ANSI, API, BS and DIN flanges. No slings, hooks or lifting gear are required, and it can be used in any position, horizontally or vertically. It is used for pipe joint work in petrochemical, energy and process plants.

Features and Benefits

Rectifies twist and rotational misalignment quickly and safely without an external power source
1 ton (10 kN) maximum reaction force
14–82 mm flange wall thickness, min. 16 mm bolt
Suitable for most ANSI, API, BS and DIN flanges
No slings, hooks or lifting gear required; horizontal or vertical use
Portable, lightweight design at 1.6 kg

Enerpac ATM2

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Reaction Force10 kN (1 ton)

Country of OriginUnited Kingdom

Length292 mm (11.5 in)

Flange Wall Thickness14 - 82 mm (.55 - 3.29 in)

ApplicationsLift, Lower

Product TypeMechanical Flange Alignment Tool

Minimum Bolt Hole Diameter B16 mm

SeriesATM

Capacity1 ton

Maximum Reaction Force 21 ton

Minimum Bolt Size16 mm (0.63 in)

Product LineBolting Tools

Height193 mm (7.6 in)

Weight1.6 kg (3.5 lbs)

Minimum Misalignment M0 mm

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualEnerpac FA1TMSTD (ATM2), FA4TMSTD (ATM4), FA9TESTD (ATM9) Flange Alignment ToolsPDF·3.7 MB

Instruction ManualFlange Alignment Tool, Model ATM-2PDF·1.0 MB

BrochureATM-Series Flange Alignment Tools; EnglishPDF·516 KB

Alternative Names & Search Terms

ATM2ATM-2ATM 2Enerpac ATM2Enerpac ATM-2ATM2 flange alignment toolATM-2 flange alignmentEnerpac ATM seriesEnerpac flange alignment toolmechanical flange alignment tool1 ton flange alignment tool10 kN flange alignment toolflange alignerflange misalignment correction toolpipe flange alignment tool16 mm bolt flange alignmentANSI DIN flange alignment tool
