How can I get a price quote for Enerpac ATM9?

You can request a fast quote for Enerpac ATM9 from Yılsa Engineering. Reference part number CEY-937FC77D9385. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ATM9 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ATM9 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ATM9?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

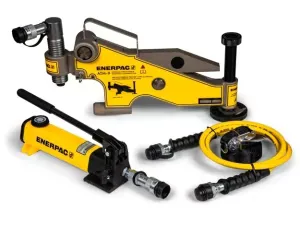

Enerpac ATM9 9 Ton Flange Alignment Tool

Enerpac ATM9; 9 t (90 kN) reaction force, 93–223 mm flange wall thickness, min. 35.5 mm bolt hole, hydraulic flange alignment tool set with hand pump.

EnerpacMFR # ATM9SKU # CEY-937FC77D9385

Maximum Reaction Force90 kN (9 ton · 10 ton)

Country of OriginUnited Kingdom

Length656 mm (25.83 in)

Flange Wall Thickness93 - 223 mm (3.66 - 9.00 in)

ApplicationsLift, Lower

Product TypeHydraulic Flange Alignment Tool

Have questions?Chat on WhatsApp

About This Product

The ATM9 is a hydraulic flange alignment tool set with hand pump from the Enerpac ATM series. It corrects twist and rotational flange misalignment during pipework construction or maintenance, allowing bolts to be placed into the joint. No external power source is required. Maximum reaction force is 9 metric tons (90 kN; 10 short tons) and maximum operating pressure is 700 bar (10,000 psi). It suits flange wall thicknesses of 93–223 mm and bolt holes of at least 35.5 mm. Dimensions are 656 × 294 mm and weight is 14.5 kg. The set includes CR400, HC7206C, FZ1055 and P142 components. It is suitable for most ANSI, API, BS and DIN flanges and is used in pipe maintenance at petrochemical, power and process plants. Country of origin is the United Kingdom.

Features and Benefits

Corrects flange misalignment and allows bolts to be placed into joints
Rectifies twist and rotational misalignment quickly and safely without external power
Suitable for most ANSI, API, BS and DIN flanges
No slings, hooks or lifting gear required
Can be installed and used in any position, horizontal or vertical
Portable, lightweight design (14.5 kg)

Enerpac ATM9

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Reaction Force90 kN (9 ton · 10 ton)

Country of OriginUnited Kingdom

Length656 mm (25.83 in)

Flange Wall Thickness93 - 223 mm (3.66 - 9.00 in)

ApplicationsLift, Lower

Product TypeHydraulic Flange Alignment Tool

Minimum Bolt Hole Diameter B35,5 mm

Maximum Operating Pressure10,000 psi

SeriesATM

Capacity9 ton

Maximum Reaction Force 29 ton (10 ton)

Minimum Bolt Size35,5 mm (1.40 in)

Product LineBolting Tools

Height294 mm (11.57 in)

Weight14.5 kg (32 lbs)

Minimum Misalignment M0 mm

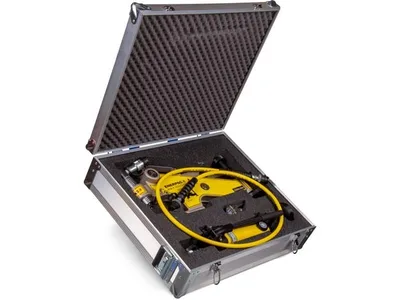

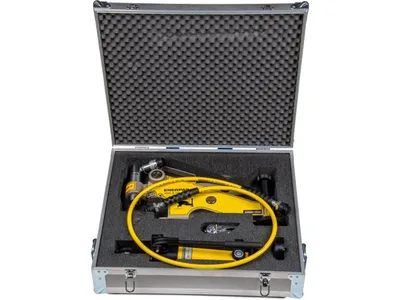

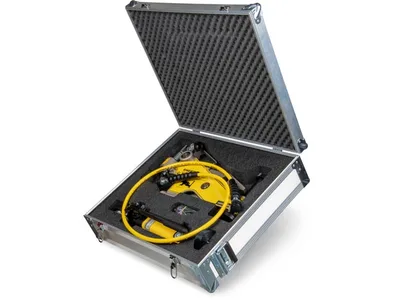

Set IncludesCR400,HC7206C,FZ1055,P142

Documents & CAD

For this product 1

Instruction ManualFlange Alignment Tool, Model ATM-9PDF·2.2 MB

Series documents 2· shared by this product series

Instruction ManualEnerpac FA1TMSTD (ATM2), FA4TMSTD (ATM4), FA9TESTD (ATM9) Flange Alignment ToolsPDF·3.7 MB

BrochureATM-Series Flange Alignment Tools; EnglishPDF·516 KB
