How can I get a price quote for Enerpac S1500X?

You can request a fast quote for Enerpac S1500X from Yılsa Engineering. Reference part number YLSOENH24E8JOY2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac S1500X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac S1500X genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac S1500X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

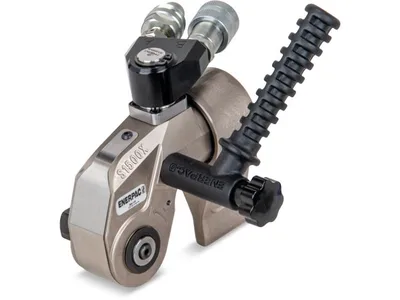

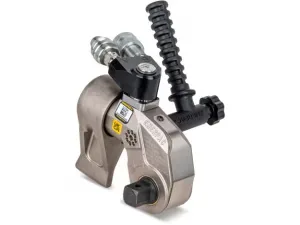

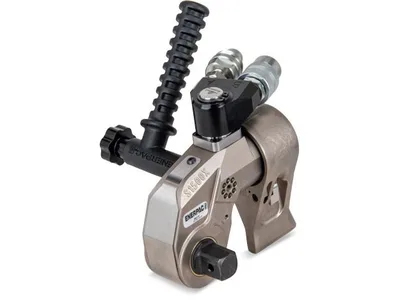

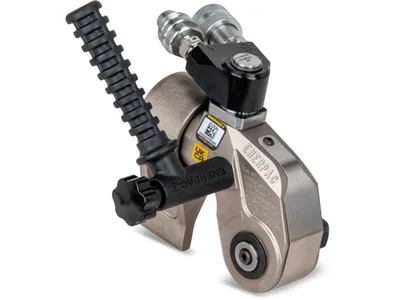

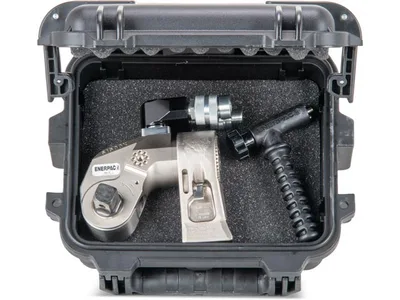

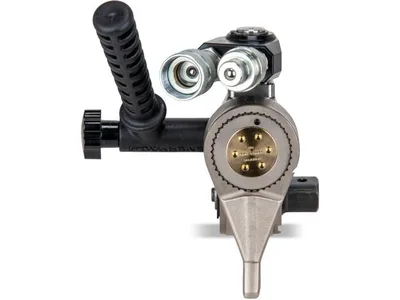

Enerpac S1500X 1952 Nm Hydraulic Torque Wrench

Enerpac S1500X; 1952 Nm (1440 ft.lb) maximum torque, 3/4 in square drive hydraulic torque wrench without swivel manifold.

EnerpacMFR # S1500XSKU # YLSOENH24E8JOY2

MaterialSteel

Maximum Torque Output1952 Nm (1440 ft-lbs)

Minimum Torque195 Nm (144 ft-lbs)

Square Drive3/4 in

Weight3.2 kg (7 lbs)

Country of OriginUnited Kingdom

Have questions?Chat on WhatsApp

About This Product

S1500X is a square drive hydraulic torque wrench from the Enerpac S-Series bolting tools range. Maximum torque output is 1952 Nm (1440 ft.lb), minimum torque is 195 Nm (144 ft.lb), the square drive size is 3/4 in and the weight is 3.2 kg. It is the model without swivel manifold. The single-body steel construction provides durability in heavy and repetitive use. A 35 degree rotation angle and rapid return stroke allow fast operation. The 360 degree click-on reaction arm and a handle that mounts on both sides make handling easier. S-Series X-edition tools are CE - ATEX declared and are shipped with a calibration certificate. The tool is used for heavy industrial bolt tightening and loosening. The optional TSP300 swivel manifold adds horizontal and vertical maneuverability.

Features and Benefits

1952 Nm (1440 ft.lb) maximum torque, 195 Nm minimum torque
3/4 in square drive; push button release to reverse the drive for tightening or loosening
Compact, high-strength single-body steel construction with small operating radius
35 degree rotation angle and rapid return stroke
360 degree click-on reaction arm and handle that mounts on both sides
CE - ATEX declared, calibration certificate included

Enerpac S1500X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

MaterialSteel

Maximum Torque Output1952 Nm (1440 ft-lbs)

Minimum Torque195 Nm (144 ft-lbs)

Square Drive3/4 in

Model Typewithout swivel manifold (1440 Ft.Lbs. Torque, 3/4 in. Square Drive)

Weight3.2 kg (7 lbs)

Country of OriginUnited Kingdom

Length136 mm (5.35 in)

Dimension E136 mm

Minimum Torque Rated At1000 psi 69 bar

ApplicationsTorque

Dimension D97 mm

Nominal Torque1952 Nm (1440 ft-lbs)

Product TypeSquare Drive Torque Wrench

Width108 mm (4.25 in)

Maximum Operating Pressure10,000 psi

SeriesS

Dimension A39 mm (1.54 in)

Product LineBolting Tools

Nominal Torque Rated At10,000 psi 690 bar

Height122 mm (4.82 in)

Dimension C108 mm

Dimension B65 mm

Set IncludesSWH6A,SD15012

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualS-Series Hydraulic Torque Wrench, S1500X, S3000X, S6000X, S11000X, S25000XPDF·5.7 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, S1500X and S1500PXPDF·871 KB·English

BrochureS-Series Square Drive Torque Wrenches; EnglishPDF·1.0 MB

CAD Files 19

3D Model

2D Drawing
