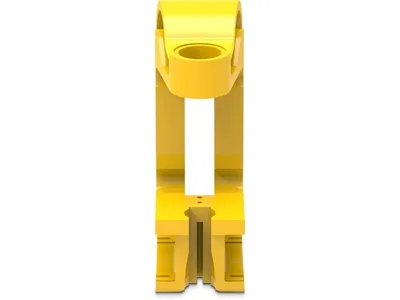

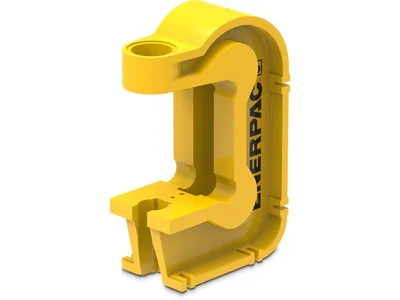

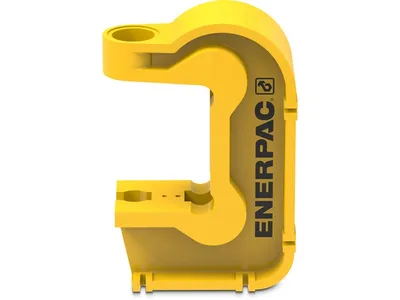

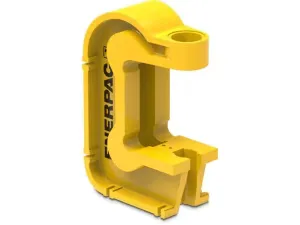

Enerpac A330 30 Ton Hydraulic Press
Enerpac A330; 30 ton (267 kN) capacity, 260 mm maximum vertical daylight, 178 mm bed width, arbor-type hydraulic press. Weight 100 kg.
Press Capacity267 kN (30 ton)
Max. Vertical Daylight260 mm (10 in)
Maximum Bed Width178 mm
Weight100 kg (220 lbs)
Dimension N98 mm (3.88 in)
Dimension G63 mm (2.5 in)
About This Product
The A330 is a 30 ton (267 kN) arbor-type hydraulic press from the Enerpac A series. Its compact frame is designed for pressing work on a workbench or a fixed mounting surface.
The press offers 260 mm maximum vertical daylight and 178 mm maximum bed width, with a weight of 100 kg. Foot mounting holes allow horizontal or vertical positioning. Machined work surfaces make fixturing easier, and the slotted back simplifies loading and unloading of longer parts.
Typical applications include installing and removing bearings and bushings, pressing shafts and pins, straightening, and general maintenance and repair shop work.
Features and Benefits
- 30 ton (267 kN) pressing capacity
- 260 mm maximum vertical daylight and 178 mm bed width
- Foot mounting holes for horizontal or vertical positioning
- Machined work surfaces for easier fixturing
- Slotted back simplifies loading and unloading of longer parts
Enerpac A330
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Press Capacity267 kN (30 ton)
Max. Vertical Daylight260 mm (10 in)
Maximum Bed Width178 mm
Weight100 kg (220 lbs)
Dimension N98 mm (3.88 in)
Dimension G63 mm (2.5 in)
Dimension E178 mm (7 in)
Country of OriginUnited States
Length353.0 mm (13.88 in)
Dimension F3 5/16"-12 UNS mm (3 5/16 - 12 un in)
Dimension O276 mm (10.88 in)
Dimension D188 mm (7.4 in)
Max. Operating Pressure10,000 psi
Dimension C254 mm (10 in)
Maximum Operating Pressure700 bar (10,000 psi)
Capacity267 kN (30 ton)
Dimension B356 mm (14.02 in)
Dimension K168 mm (6.63 in)
Dimension J28 mm (1.1 in)
Dimension H140 mm (5.5 in)
Max. Bed Width7 in
Product TypeArbor Press
Dimension L203 mm (8 in)
Width177.8 mm (7 in)
Dimension M67 mm (2.63 in)
SeriesA
Dimension A563 mm (22.18 in)
Product LineIndustrial Tools
Height557.28 mm (21.94 in)
