How can I get a price quote for Baldor ECS101M0K2P2DD4?

You can request a fast quote for Baldor ECS101M0K2P2DD4 from Yılsa Engineering. Reference part number YLS67CJDOX0NYUN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor ECS101M0K2P2DD4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor ECS101M0K2P2DD4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor ECS101M0K2P2DD4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor ECS101M0K2P2DD4

ECS101M0K2P2DD4

BaldorMFR # ECS101M0K2P2DD4SKU # YLS67CJDOX0NYUN

EnclosureTEFC

FrameD90S

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency2.200 KW @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor ECS101M0K2P2DD4 (ECS101M0K2P2DD4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor ECS101M0K2P2DD4 — price, stock availability and technical specifications.

Baldor ECS101M0K2P2DD4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameD90S

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency2.200 KW @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency190.0 V @ 50 HZ · 380.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · CULUS · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range5

Current at voltage7.100 A @ 190.0 V · 3.550 A @ 380.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.8 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.6 a

Frame prefixD

Heater indicatorNo Heater

Insulation classF

Inverter code03

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationTerminal Block

Motor lead quantity/wire size9 @ 16 AWG

Motor type3532B

Mounting arrangementB3

Number of poles4

Overall length12.95 IN

Power factor99

Product familyGeneral Purpose

Pulley face codeStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.945 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1500 rpm

Speed codeSingle Speed

Motor standardsIEC

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568993804

Product TypeGeneral Purpose Motors

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·117 KB·English

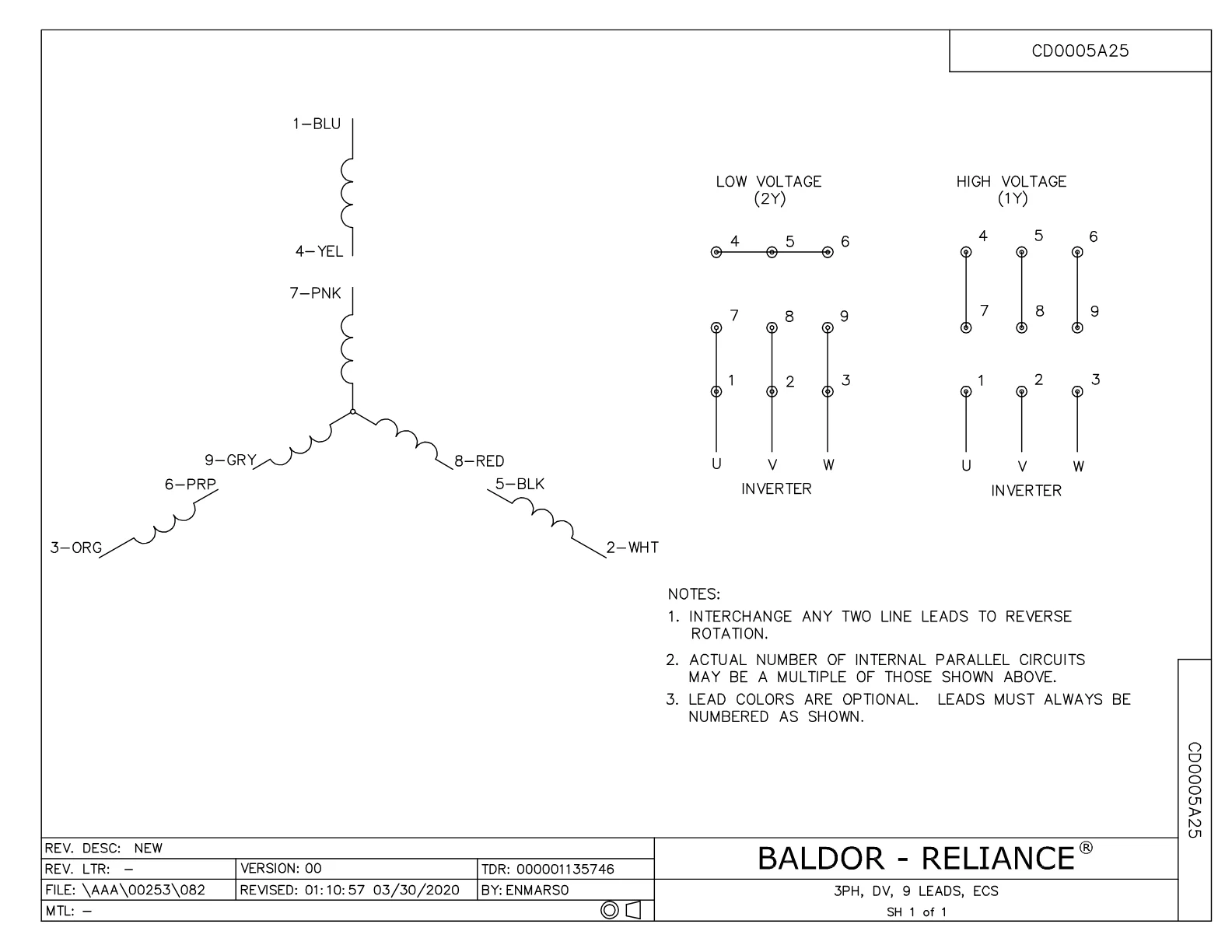

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·512 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor ECS101M0K2P2DD4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HA1005A05SP	SLINGER, OD 1.50, ID .659, 203 BRG	1 pcs	112 motors
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
MN451	EC Titanium Quick Start 06/22	1 pcs	224 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
