Baldor 1252

Baldor 1252 is a 3 HP, 1500/1800 rpm, three-phase 208-230/460 V 50/60 Hz, 3628M, TENV enclosed buffer motor.

BaldorMFR # 1252SKU # YLSSMCNBEDMFZXJ

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output3

Number of poles4

Have questions?Chat on WhatsApp

About This Product

Baldor 1252 is a 3 HP, 1500/1800 rpm, three-phase 208-230/460 V 50/60 Hz, 3628M, TENV enclosed buffer motor.

Baldor 1252

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output3

Number of poles4

Output at frequency3.000 HP @ 60 HZ · 3.000 HP @ 50 HZ

Phase3

Product styleGRINDER

Shaft diameter1.250 IN

Speed (rpm)1500 rpm · 1800 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)208 V · 230 V · 460 V

Voltage at frequency230.0 V @ 50 HZ · 208.0 V @ 60 HZ · 208.0 V @ 50 HZ · 460.0 V @ 60 HZ · 460.0 V @ 50 HZ · 230.0 V @ 60 HZ

Wheel bore size1.2500 IN

Wheel diameter12.0000 IN

Wheel face2.0000 IN

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage8.000 A @ 208.0 V · 7.400 A @ 230.0 V · 3.700 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

KVA codeG

Motor lead quantity/wire size9 @ 16 AWG

Motor type3628M

Mounting arrangementF1

Overall length39.32 IN

Product familyBuffer

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationPhase Seq-Opp Std Rot (CWODE)

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127551

Nameplate

Catalog number1252

Horsepower (HP)3

Voltage (V)208-230/460

Phase3

Current (A)8-7.4/3.7

Frequency (Hz)50//60

Speed (rpm)1500//1800

Specification numberG12-121C-0004

Nameplate numberNP3411L

Documents & CAD

For this product 2

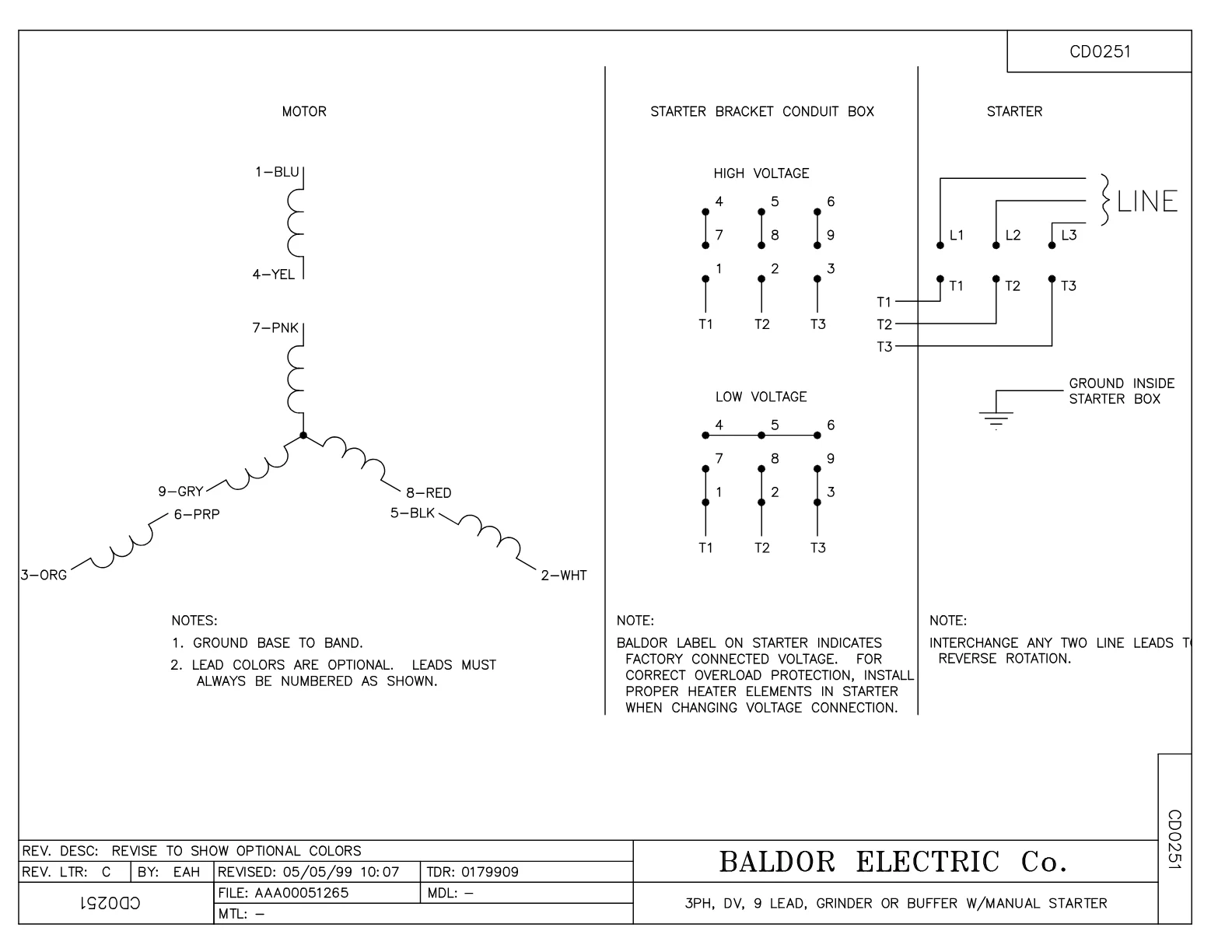

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·514 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·100 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor 1252 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
XZ2007A62SP	1 1/4-7 NUT LH HEX (NC)	1 pcs	18 motors
XZ2007A12SP	1 1/4-7 NUT RH HX(NC)(F/S	1 pcs	18 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
