How can I get a price quote for Baldor 1022W?

You can request a fast quote for Baldor 1022W from Yılsa Engineering. Reference part number YLSKUQ2NCDSKVYV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 1022W in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 1022W genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 1022W?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 1022W

Baldor-Reliance 1022W (28C 4P GRNDR W/EXH) is a 4-pole Grinder family AC motor rated 1.000 HP @ 60 Hz, 1800 rpm, 1 phase, 115/230 V @ 60 Hz, with TENV enclosure.

BaldorMFR # 1022WSKU # YLSKUQ2NCDSKVYV

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output1

Number of poles4

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance 1022W (28C 4P GRNDR W/EXH) is a 4-pole Grinder family AC motor rated 1.000 HP @ 60 Hz, 1800 rpm, 1 phase, 115/230 V @ 60 Hz, with TENV enclosure.

Baldor 1022W

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output1

Number of poles4

Output at frequency1.000 HP @ 60 HZ

Phase1

Shaft diameter0.875 IN

Speed (rpm)1800 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)115 V · 230 V

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage4.900 A @ 230.0 V · 9.800 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

Motor lead quantity/wire size4 @ 18 AWG

Motor type3528C

Mounting arrangementF1

Overall length24.12 IN

Product familyGrinder

Service factor1.00

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Motor standardsOther

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127162

Nameplate

Horsepower (HP)1

Voltage (V)115/230

Phase1

Current (A)9.8/4.9

Frequency (Hz)60

Speed (rpm)1800

Specification numberG10-164-2

Nameplate numberNP3118

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·173 KB·English

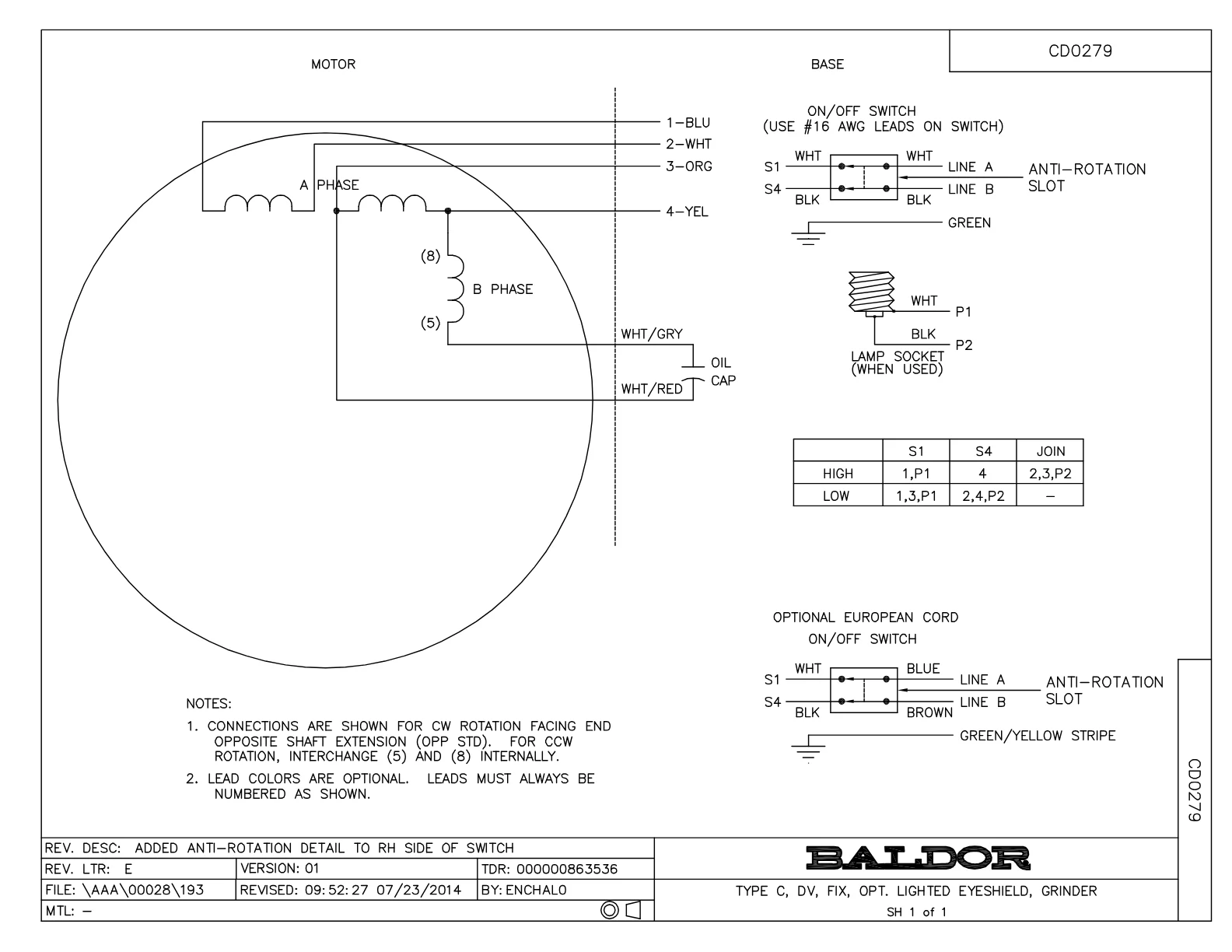

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·593 KB·English

Spare Parts 13

The genuine spare parts used for servicing and repairing the Baldor 1022W motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3012F12SP	CYL OIL CAP 12MFD/370V	1 pcs	13 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
G8EP3900A01SP	ENDPLATE, MACH	2 pcs	28 motors
G0FH1807A01SP	GUARD,LH,10"GRINDER	1 pcs	5 motors
HA6101A01SP	SUPPORT, TOOL REST MACH	2 pcs	5 motors
G8AP1003A01SP	TOOL REST	2 pcs	23 motors
G0AP1002SP	SPARK BREAKER ZINC PLATED	2 pcs	5 motors
B103	WHEEL, 10X1X7/8X60 GRIT	1 pcs	5 motors
XY8809A62SP	7/8-9 NUT L.H. HEX (NC)	1 pcs	9 motors
XY8809A12SP	7/8-9 NUT R.H. HEX (NC)	1 pcs	9 motors
SP9000SP	80600BJ A-H OR 1520237-2 TYCO;2PST,125/2	1 pcs	27 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN903	INSTR MANUAL FOR GRINDERS 9/03	1 pcs	37 motors

Accessories 16

Genuine accessories that can be used with the Baldor 1022W motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA20E	PEDESTAL LIGHT INDUSTRIAL,STEEL	35 motors
GA24	WATER POT	21 motors
B102	10" 36 GRIT GRINDING WHEEL	5 motors
B103	10" 60 GRIT GRINDING WHEEL	5 motors
GA9	PAIR LIGHTED EYESHIELDS	39 motors
GA9-1	SINGLE LIGHTED EYESHIELD	39 motors
GA9S	PAIR EYESHIELDS W/ ON-OFF SWITCH	39 motors
GA11	PAIR EYESHIELDS	39 motors
DC10	DUST CONTROL UNIT	5 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
BQ2-015-CC	1PH Brake,NEMA 1 208-230 VAC,50/60Hz	13 motors
BQ2-015-CP	1PH Brake, Panel 208-230 VAC, 50/60 Hz	13 motors
