Baldor EL11318M

General Purpose Motor - 1 hp, 1800 rpm, 1 ph, 115/230 V, 56H Frame, OPEN Enclosure, 60 Hz, 1750 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # EL11318MSKU # YLSU3NN9SW2PX60

EnclosureOPEN

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 1 hp, 1800 rpm, 1 ph, 115/230 V, 56H Frame, OPEN Enclosure, 60 Hz, 1750 rpm Base, Rigid Base Mount, Continuous Duty

Baldor EL11318M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.500 A @ 230.0 V · 9.000 A @ 115.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load82.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3528LC

Mounting arrangementF1

Number of poles4

Overall length11.75 IN

Power factor86

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1755 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568763964

Motor Supply Voltage115/230 V

Base RPM1750 rpm

Mounting TypeRigid Base

Weight44 lbs

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEL11318M

Specification number35E007G389G1

Horsepower (HP)1

Voltage (V)115/230

Current (A)8.8/4.4

Speed (rpm)1750

Frame size56H

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterL

Insulation classF

Full load average efficiency (%)82.6

Power factor89

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP3273L

Performance

General characteristics· 115 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)0.57842 Ω / 1.1449 Ohms B Ph

Temperature rise at rated load (°C)22° C

Temperature rise at service factor load (°C)27° C

Start configurationDOL

Breakdown torque9.12 lb-ft

Pull-up torque6.8 lb-ft

Locked-rotor torque13.7 lb-ft

Starting current (A)75.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	20	51	69	80	86	89	91	88
Efficiency %	0	65.7	78.3	82.3	82.7	81.4	78.7	81.9
Speed rpm	1796	1783.2	1769.4	1753.1	1736.2	1716	1689.1	1724
Line amps A	4.53	4.86	5.88	7.33	9.06	11.1	13.6	10.3
Power W	105	286	472	677	896	1143	1420	1044
Torque lb-ft	0	0.7407	1.47	2.237	3.006	3.818	4.657	3.49

Documents & CAD

For this product 3

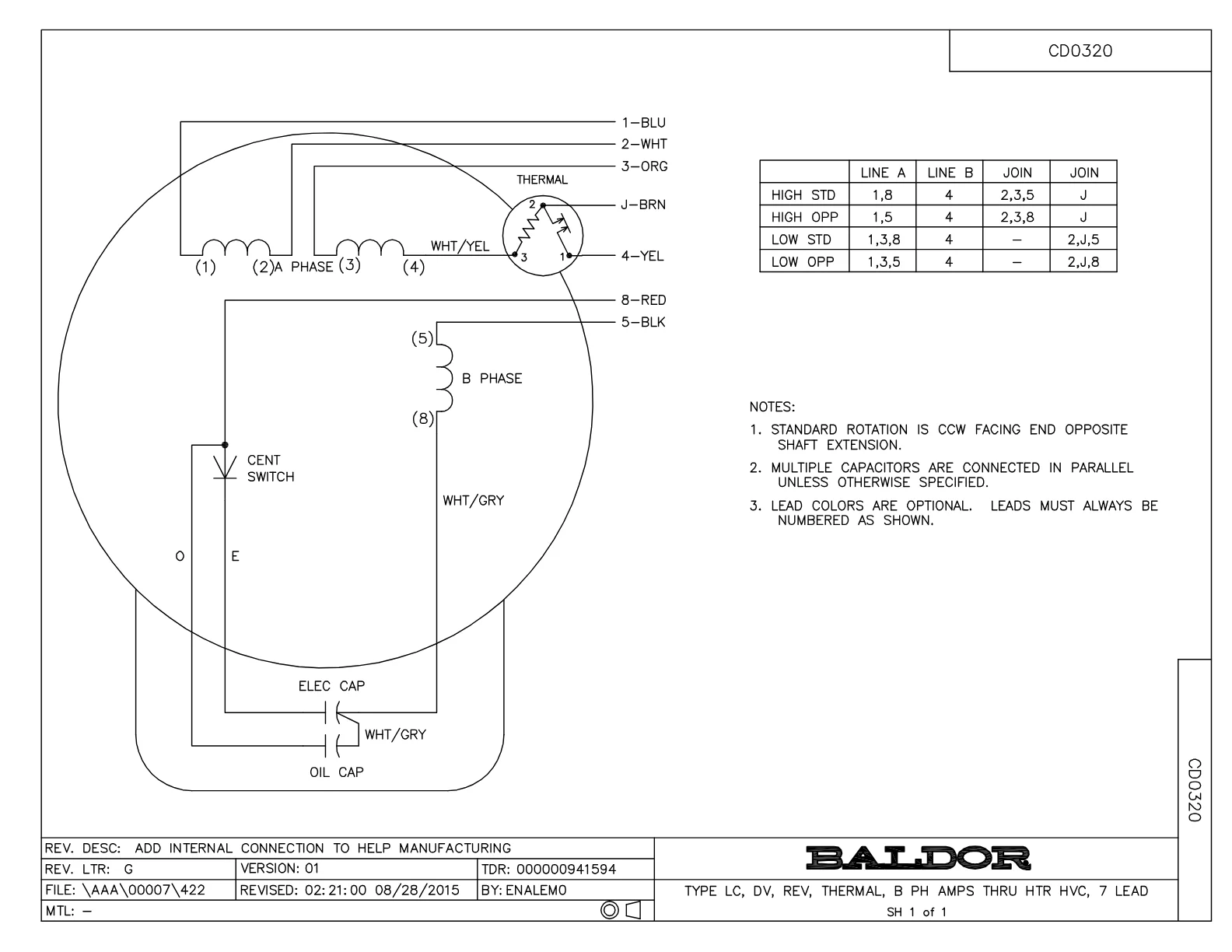

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·595 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·112 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EL11318M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3040F18SP	7YL OIL CAP 40MFD/370V	1 pcs	30 motors
EC1540A06SP	ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.	1 pcs	53 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
