Baldor D5060P

Baldor-Reliance D5060P is a 60 HP, 1750-2100 rpm DC electric motor with a 365-6AT frame and DPFG (drip-proof fully guarded) enclosure.

BaldorMFR # D5060PSKU # YLSBGRL2W0UH3C

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame365-6AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D5060P is a 60 HP, 1750-2100 rpm DC electric motor with a 365-6AT frame and DPFG (drip-proof fully guarded) enclosure.

Baldor D5060P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)150 V · 300 V

Frame365-6AT

Frame materialSteel

Output power60.000 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)98.6 a

Base indicatorRigid

Duty ratingCONT

Field winding typeSTAB SHUNT

Insulation classF

Mounting arrangementF1

Overall length35.88 IN

Service factor1.00

Shaft diameter2.375 IN

Motor standardsNEMA

UPC781568125366

Documents & CAD

For this product 3

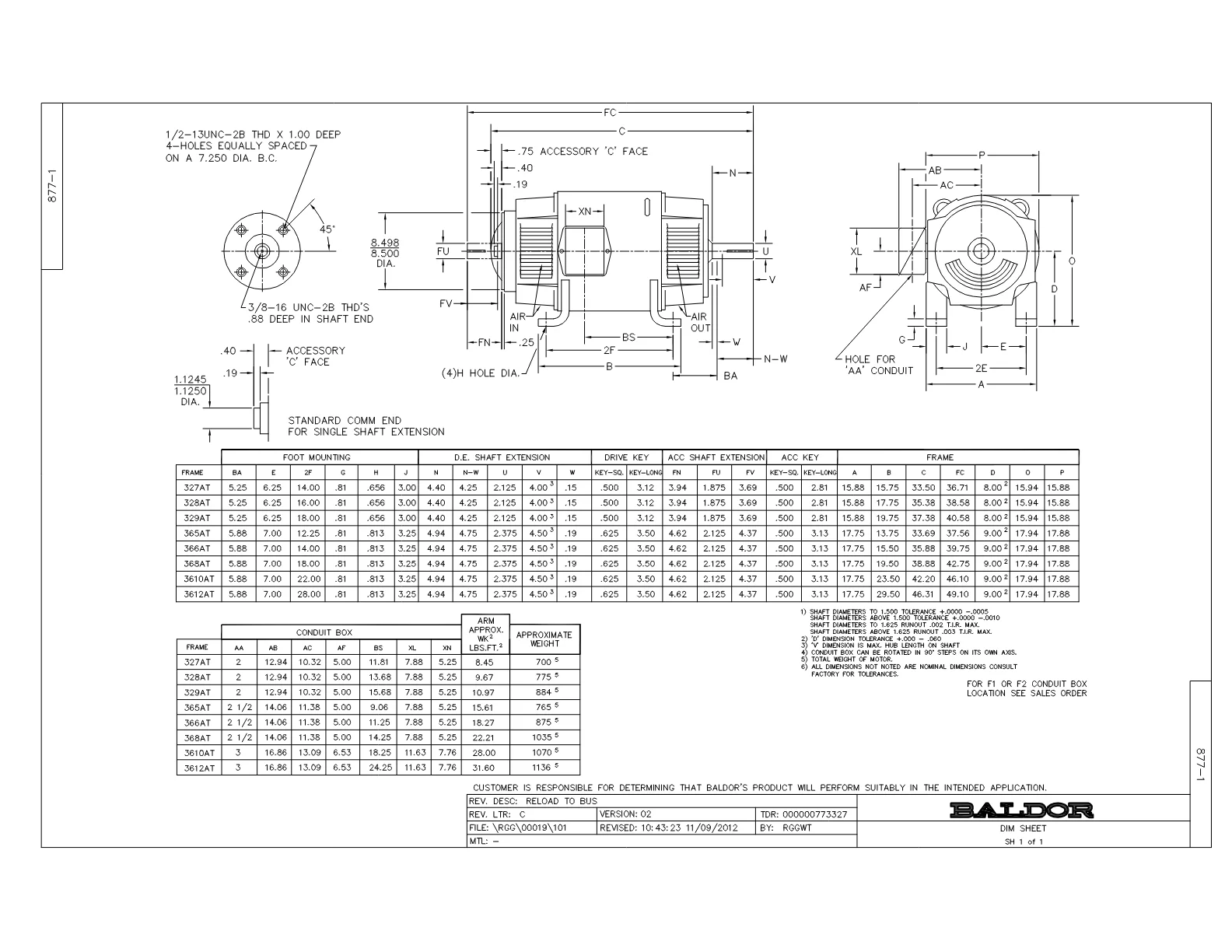

Dimension DrawingDimension SheetPDF·130 KB·English

Wiring DiagramWiring DiagramPDF·92 KB·English

DatasheetDatasheetPDF·592 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English
