How can I get a price quote for Baldor CD2105R?

You can request a fast quote for Baldor CD2105R from Yılsa Engineering. Reference part number YLSH8PEYJOSFFRH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CD2105R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CD2105R genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CD2105R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CD2105R

Baldor CD2105R is a DC motor rated 5 HP, 1750 rpm, 180 V armature / 200 V field, with DC2112ATCZ frame and TENV enclosure.

BaldorMFR # CD2105RSKU # YLSH8PEYJOSFFRH

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTENV

Field voltage (V)200 V

FrameDC2112ATCZ

Frame materialExposed Laminations

Have questions?Chat on WhatsApp

About This Product

Baldor CD2105R is a DC motor rated 5 HP, 1750 rpm, 180 V armature / 200 V field, with DC2112ATCZ frame and TENV enclosure.

Baldor CD2105R

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTENV

Field voltage (V)200 V

FrameDC2112ATCZ

Frame materialExposed Laminations

Output power5.000 HP

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Armature current (A)23.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Frame prefixDC

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF3

Overall length27.22 IN

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568461693

Documents & CAD

For this product 3

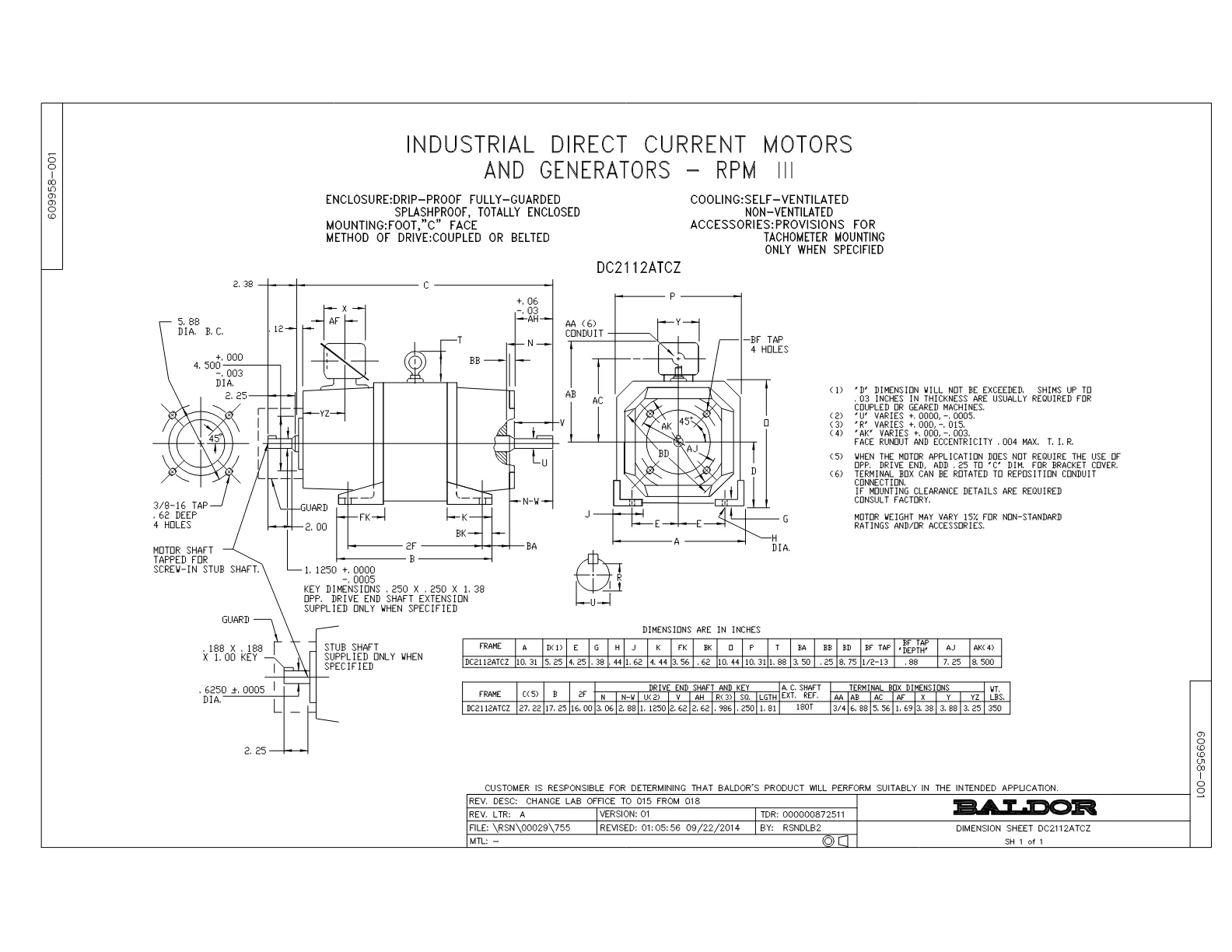

Dimension DrawingDimension SheetPDF·87 KB·English

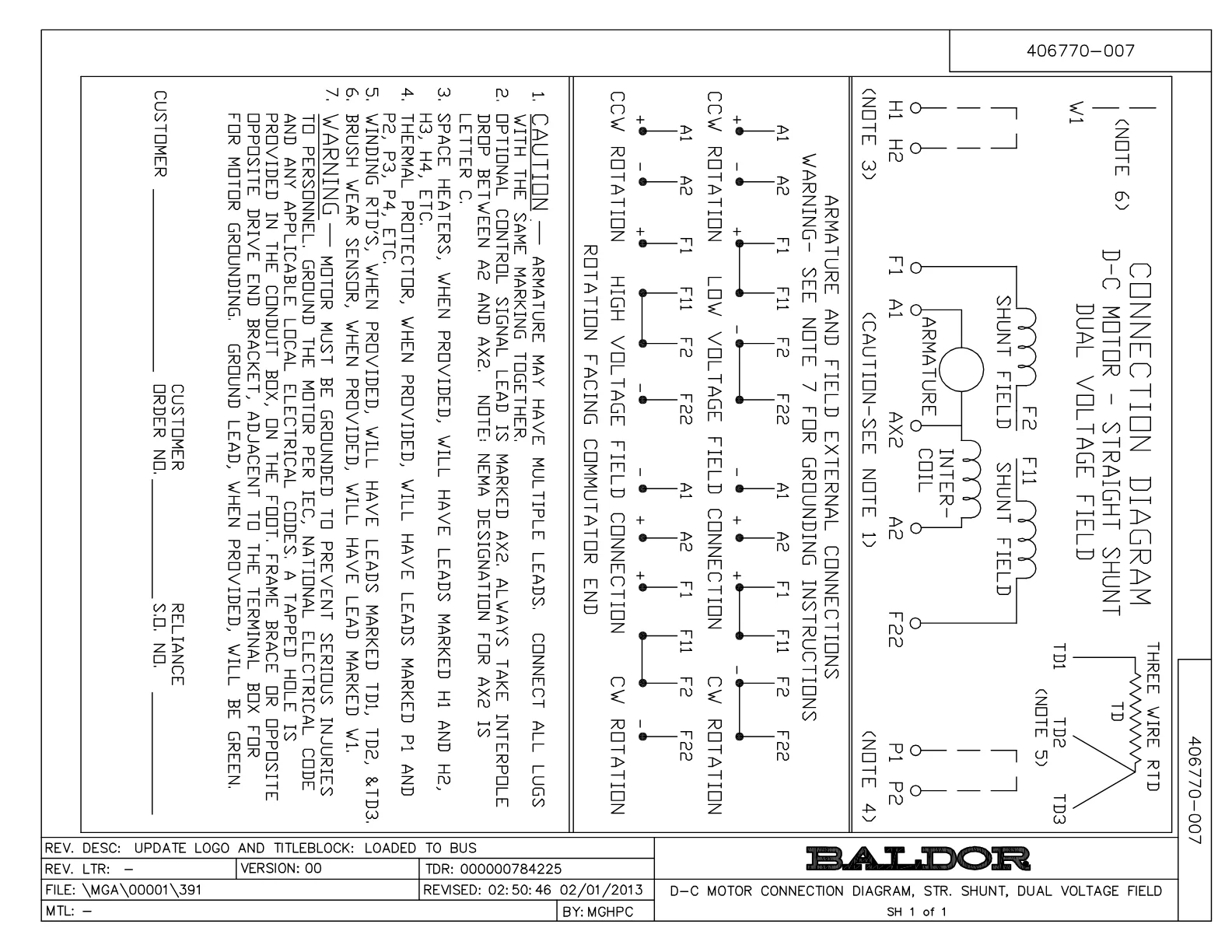

Wiring DiagramWiring DiagramPDF·62 KB·English

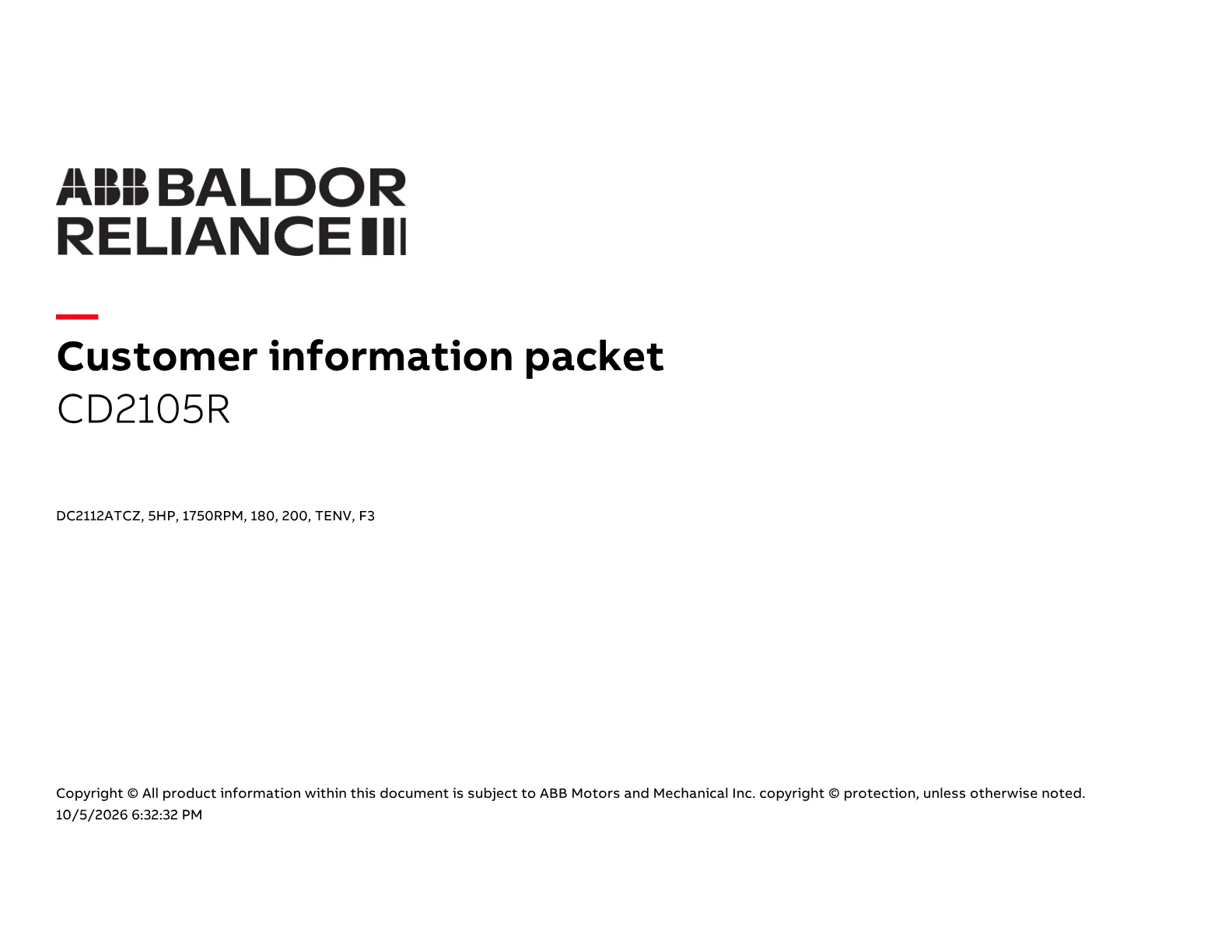

DatasheetDatasheetPDF·575 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor CD2105R motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
