Baldor CD2007R-2

Baldor CD2007R-2 is a DC motor rated 7.5 HP, 1750 rpm, 240 V armature / 240 V field, with C1812ATCZ frame and DP enclosure.

BaldorMFR # CD2007R-2SKU # YLSG87QS87GGD1G

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)240 V

FrameC1812ATCZ

Frame materialExposed Laminations

Have questions?Chat on WhatsApp

About This Product

Baldor CD2007R-2 is a DC motor rated 7.5 HP, 1750 rpm, 240 V armature / 240 V field, with C1812ATCZ frame and DP enclosure.

Baldor CD2007R-2

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDP

Field voltage (V)240 V

FrameC1812ATCZ

Frame materialExposed Laminations

Output power7.500 HP

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Armature current (A)27.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTAB SHUNT

Frame prefixC

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length28.00 IN

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568461679

Documents & CAD

For this product 3

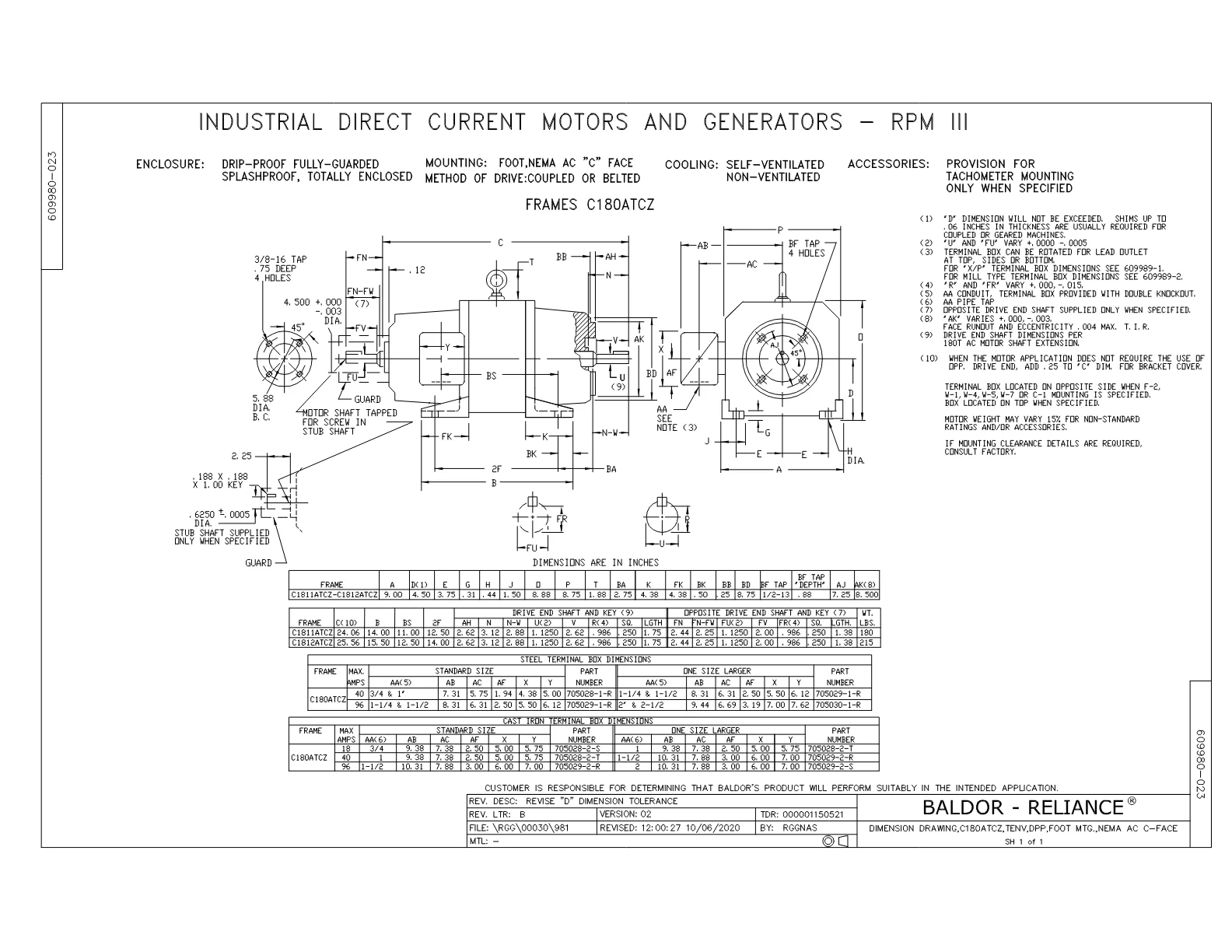

Dimension DrawingDimension SheetPDF·116 KB·English

Wiring DiagramWiring DiagramPDF·57 KB·English

DatasheetDatasheetPDF·536 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor CD2007R-2 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
