Baldor CD2007P-2

Baldor CD2007P-2 is a DC motor rated 7.5 HP, 1750/2300 rpm, with 1810ATC frame and DPFG enclosure.

BaldorMFR # CD2007P-2SKU # YLSKA5RTSSEQZW6

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)120 V · 240 V

Frame1810ATC

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor CD2007P-2 is a DC motor rated 7.5 HP, 1750/2300 rpm, with 1810ATC frame and DPFG enclosure.

Baldor CD2007P-2

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)240 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)120 V · 240 V

Frame1810ATC

Frame materialSteel

Output power7.500 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)27.8 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF3

Overall length23.78 IN

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568134061

Documents & CAD

For this product 3

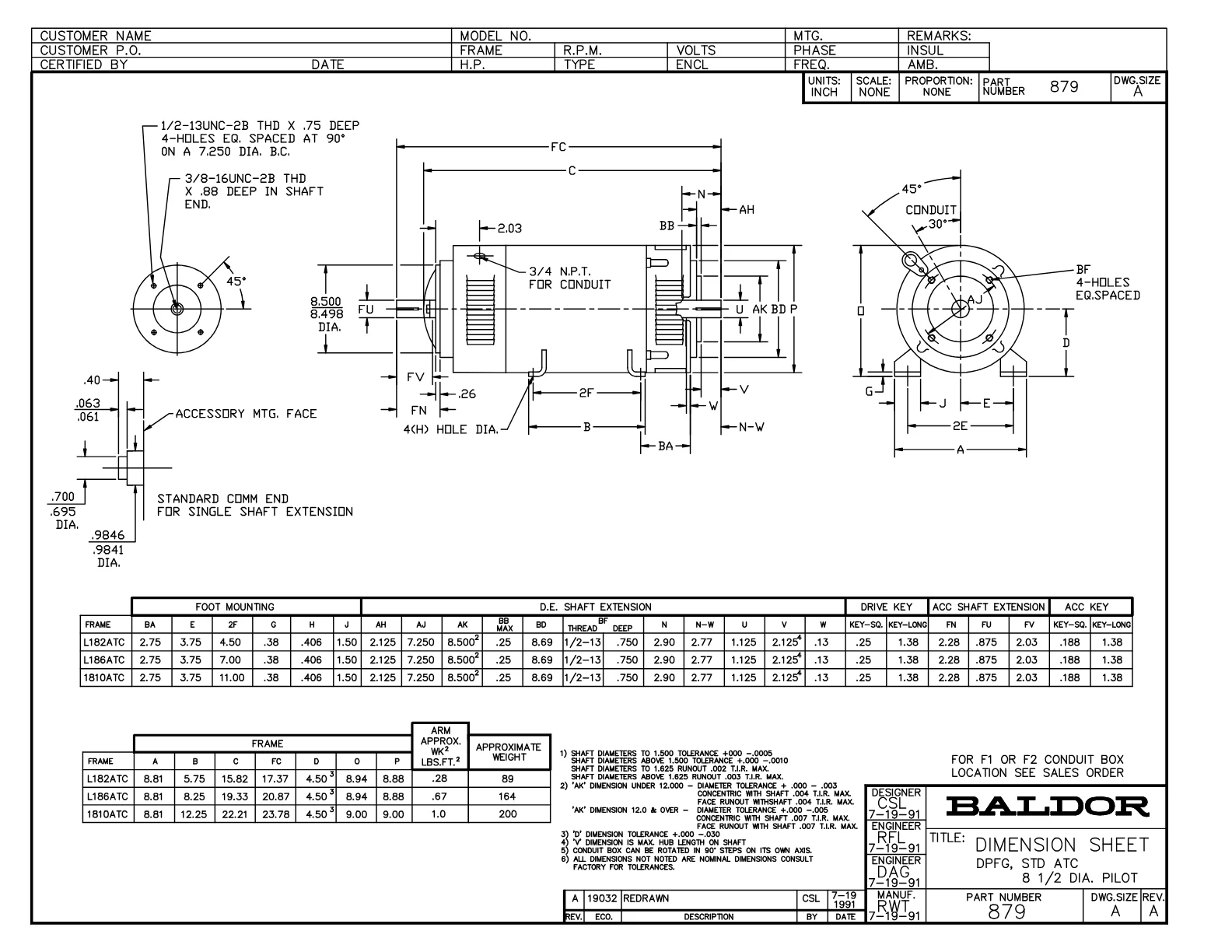

Dimension DrawingDimension SheetPDF·123 KB·English

Wiring DiagramWiring DiagramPDF·92 KB·English

DatasheetDatasheetPDF·579 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor CD2007P-2 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
