How can I get a price quote for Baldor D5050P-BV?

You can request a fast quote for Baldor D5050P-BV from Yılsa Engineering. Reference part number YLSPXIKER2X4ZX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor D5050P-BV in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor D5050P-BV genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor D5050P-BV?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor D5050P-BV

Baldor-Reliance D5050P-BV is a 50 HP, 1750 rpm, 500/300 V DC electric motor with a 328AT frame, DPFG (drip-proof fully guarded) enclosure and DPBV (blower ventilated) design.

BaldorMFR # D5050P-BVSKU # YLSPXIKER2X4ZX

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)300 V

Frame328AT

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance D5050P-BV is a 50 HP, 1750 rpm, 500/300 V DC electric motor with a 328AT frame, DPFG (drip-proof fully guarded) enclosure and DPBV (blower ventilated) design.

Baldor D5050P-BV

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)500 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)300 V

Frame328AT

Frame materialSteel

Output power50.000 HP

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)83.7 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSTR. SHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF1

Overall length35.38 IN

Service factor1.00

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568204375

Documents & CAD

For this product 4

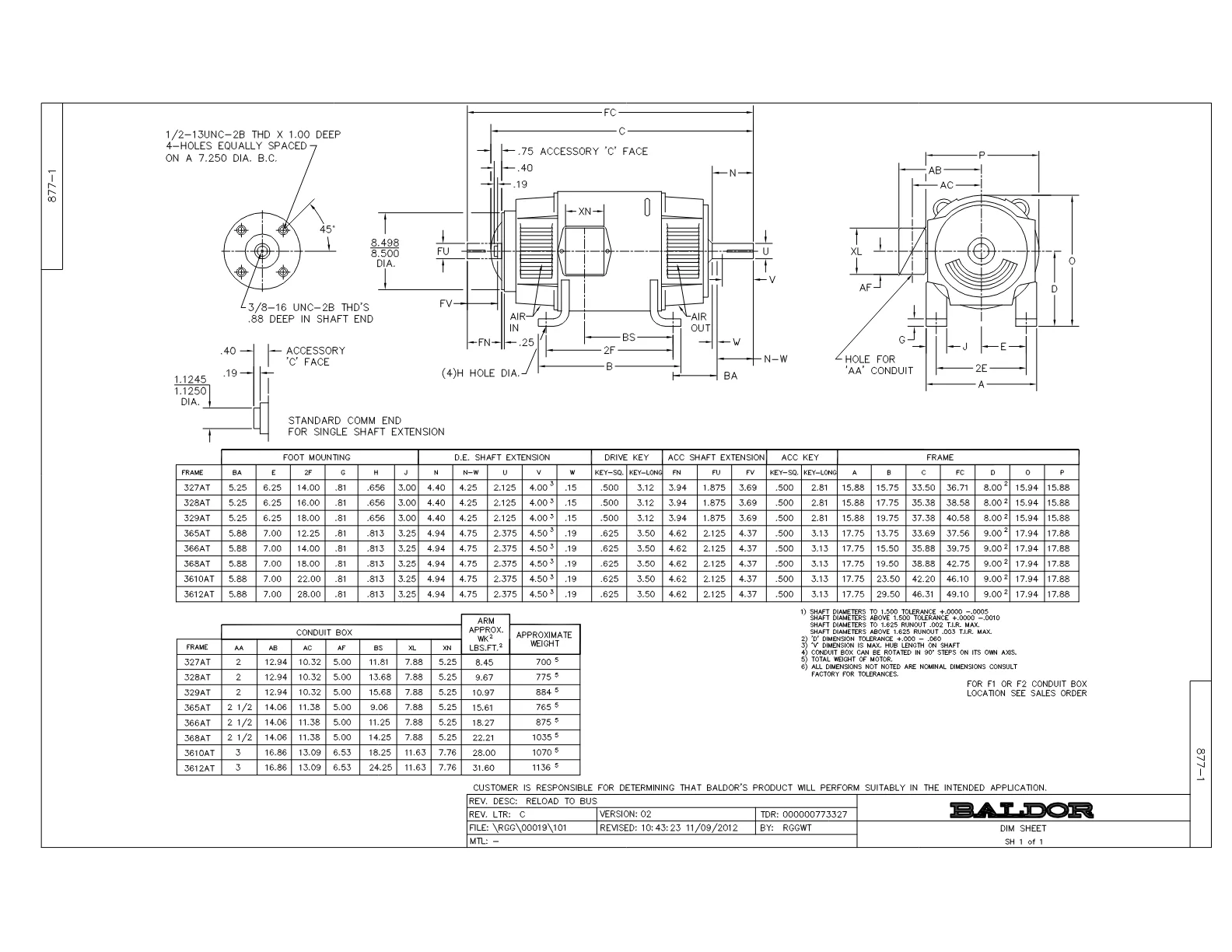

Dimension DrawingDimension SheetPDF·130 KB·English

Dimension DrawingDimension SheetPDF·44 KB·English

Wiring DiagramWiring DiagramPDF·92 KB·English

DatasheetDatasheetPDF·638 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor D5050P-BV motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
28610-2SP	BRUSH,280/320FR.,E-77	4 pcs	7 motors

Accessories 1

Genuine accessories that can be used with the Baldor D5050P-BV motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
