Siemens 6XV1878-2T
IE TP TRAIN kablo 4x 2; CAT7 TP installation kablo için Rail applications için bağlantı to FC M12 Plug PRO 4x 2, Railway-certified, 8-core, shielded, sold by the meter, max. teslimat ünite 1000 m, minimum order quantity 20 m.
product brand nameSIMATIC NET
suitability for useFor laying in rail vehicles ve buses
cable designationSF/FTP
wire lengthsold by the meter
at 10 MHz / maximum0,063 dB/m
at 100 MHz / maximum0,207 dB/m
Ürün Hakkında
IE TP TRAIN kablo 4x 2; CAT7 TP installation kablo için Rail applications için bağlantı to FC M12 Plug PRO 4x 2, Railway-certified, 8-core, shielded, sold by the meter, max. teslimat ünite 1000 m, minimum order quantity 20 m.
Siemens 6XV1878-2T
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor laying in rail vehicles ve buses
cable designationSF/FTP
wire lengthsold by the meter
electrical data
at 10 MHz / maximum0,063 dB/m
at 100 MHz / maximum0,207 dB/m
at 250 MHz / maximum0,343 dB/m
at 1 MHz ... 100 MHz100 Ω
coupling loss / at 30 MHz … 100 MHz / minimum60 dB
transfer impedance per length / at 10 MHz5 mΩ/m
loop resistance per length / maximum124 mΩ/m
insulation resistance coefficient5000 GΩ·m
RMS value125 V
mechanical data
number of electrical cores8

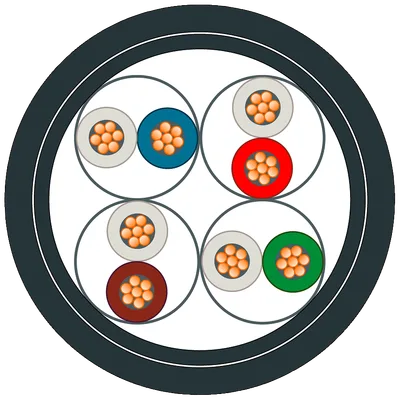

design of the shieldSF/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires with additional pair shielding
type of electrical connection / FastConnectYok
of AWG24 insulated conductor0,51 mm
of the wire insulation1,45 mm
of cable sheath8,1 mm
symmetrical tolerance of the outer diameter / of cable sheath0,4 mm
of the wire insulationpolyethylene (PE)
of cable sheathElastomer meshed electron beam
of the insulation of data wireswhite/blue, white/green, white/brown, white/orange
of cable sheathBlack
with single bend / minimum permissible53 mm
with multiple bends / minimum permissible53 mm
tensile load / maximum60 N
weight per length79 kg/km
ambient conditions
during operation-40... +80 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation-20... +60 °C
fire behaviorBS 6853, DIN5510-2 Brandschutzstufe 1-4, prEN 45545-2 Hazard Level HL 1-HL 3, EN 50306-4, NF F 16-101, NFPA130
to mineral oilEN 50306-4 (72h/100 °C, IRM 902, 168h/70 °C, IRM 903)
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeVar
PoE capabilityVar
PoE+ capabilityVar
PoE++ capabilityVar
silicon-freeVar
with 100BaseTX100 m
with 1000BaseT100 m
at AC / core-to-core1000 V
at AC / core shield1000 V
standards, specifications, approvals
UL/ETL listing / 300 V RatingYok
UL/ETL style / 600 V RatingYok
CE markingVar
RoHS conformityVar
standard for structured cablingCat7
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Aksesuarlar 3
Siemens 6XV1878-2T motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-0DE10-6AA0 | Aksesuar | |
| 6GK1901-0DM40-2AA5 | Aksesuar | |
| 6GK1901-0DE11-6AA0 | Aksesuar |
