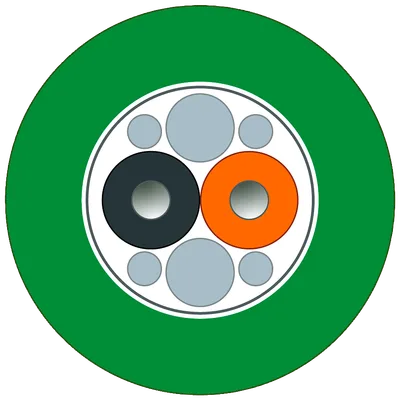

Siemens 6XV1874-2B
POF Trailing kablo 980/1000, PROFINET, trailing kablo, sold by the meter, minimum order quantity 20 m max. uzunluk 500 m.
product brand nameSIMATIC NET
version of the assembled FO cablesold by the meter
cable designationI-V4Y(ZN)11Y 2P 980/1000 FLEX UL
at 650 nm / maximum180 dB/km
at 660 nm / maximum275 dB/km
at 650 nm1 GHz·m
Ürün Hakkında
POF Trailing kablo 980/1000, PROFINET, trailing kablo, sold by the meter, minimum order quantity 20 m max. uzunluk 500 m.
Siemens 6XV1874-2B
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useCable for moving applications (e.g. use in cable carriers)
version of the assembled FO cablesold by the meter
cable designationI-V4Y(ZN)11Y 2P 980/1000 FLEX UL
optical data
at 650 nm / maximum180 dB/km
at 660 nm / maximum275 dB/km
at 650 nm1 GHz·m
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fiberPOF FOC 980/1000 µm
of the optical fibers980 µm
of the optical fiber sheath1000 µm
of the FOC core sheath2,2 mm
symmetrical deviation / of the outer diameter of the FOC core sheath0,1 mm
outer diameter / of the cable8 mm
of the fiber-optic cable corePolymethylmethacrylate (PMMA)
of the optical fiber sheathFluoridated special polymer
of the FOC core sheathPA
of the fiber-optic cable sheathPUR
of the strain reliefKevlar fibers
of the FOC core sheathorange/black
of cable sheathgreen
with single bend / minimum permissible40 mm
with multiple bends / minimum permissible55 mm
with continuous bending55 mm
number of bending cycles5000000
number of torsion cycles / with torsion by ± 360° on 1 m cable length10000
during installation / short-term400 N
during operation / maximum100 N
short-term shear force per length400 N/cm
continuous shear force per length20 N/cm
weight per length55 kg/km
ambient conditions
during operation-20... +70 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation5... 50 °C
fire behaviorflame-resistant acc. to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oilresistant
to greaseresistant
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
product component / rodent protectionYok
for POF FOC / for Industrial Ethernet / maximum50 m
standards, specifications, approvals
UL onayıVar; AWM STYLE 5422 80C VW-1
RoHS conformityVar
Aksesuarlar 13
Siemens 6XV1874-2B motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-0DA20-0AA0 | Aksesuar | |
| 6GK1901-0RB10-2AB0 | Aksesuar | |
| 6GK1901-0RP10-0AA0 | Aksesuar · Cabling system | |
| 6GK1900-1LP00-0AB0 | Aksesuar | |
| 6XV1843-5EH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CC0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AB0 | Aksesuar · Cables · network cable optical |
