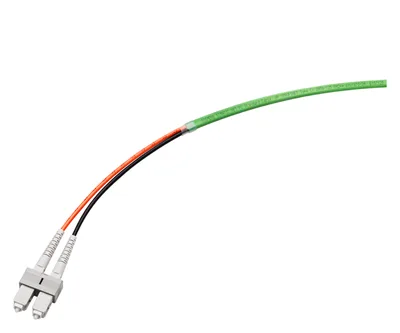

Siemens 6XV1873-6DN50
FO Trailing kablo GP 50/125, pre-assembled ile 2x2 SC connectors, insertion aid, uzunluk 50 m.
product brand nameSIMATIC NET
version of the assembled FO cablePreassembled with four SC connectors
cable designationAT-W(ZN)Y(ZN)Y 2G 50/125 OM2++
wire length50 m
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum0,7 dB/km
Ürün Hakkında
FO Trailing kablo GP 50/125, pre-assembled ile 2x2 SC connectors, insertion aid, uzunluk 50 m.
Siemens 6XV1873-6DN50
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFlexible cable for use in cable carriers for high mechanical loading, UL approval
version of the assembled FO cablePreassembled with four SC connectors
cable designationAT-W(ZN)Y(ZN)Y 2G 50/125 OM2++
wire length50 m
optical data
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum0,7 dB/km
at 850 nm600 GHz·m
at 1300 nm1200 GHz·m
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fiberMulti-mode gradient fiber 50/125 µm, OM 2
design of the FOC coreHollow core, filled, diameter 1400 µm
design of the fiber-optic cablesegmentable
of the optical fibers50 µm
of the optical fiber sheath125 µm
of the FOC core sheath2,9 mm
symmetrical deviation / of the outer diameter of the FOC core sheath0,1 mm
outer diameter / of the cable10,5 mm
symmetrical deviation / of the outer diameter of the line0,5 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathQuartz glass
of the FOC core sheathPVC
of the fiber-optic cable sheathPVC
of the strain reliefAramid fibers
of the FOC core sheathorange/black
of cable sheathgreen
with single bend / minimum permissible150 mm
with multiple bends / minimum permissible200 mm
number of bending cycles3500000
during installation / short-term2000 N
during operation / maximum800 N
short-term shear force per length700 N/cm
continuous shear force per length400 N/cm
weight per length90 kg/km
ambient conditions
during operation-25... +80 °C
during storage-25... +80 °C
during transport-25... +80 °C
during installation-5... +50 °C
fire behaviorflame-resistant acc. to IEC 60332-1-2 ve IEC 60332-3-22 (Cat. A)
to mineral oilconditional resistance
to greaseconditional resistance
radiological resistance / to UV radiationresistant
protection class IPIP20
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
product component / rodent protectionYok
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum5000 m
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum750 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum2000 m
for glass FOC / with PROFIBUS / maximum3000 m
standards, specifications, approvals
UL onayıVar; c(UL)us OFN FT4
RoHS conformityVar
