Siemens 6XV1831-2A
PROFIBUS FC standart kablo IS GP, bus kablo 2-wire, shielded, special configuration için quick assembly, teslimat ünite: max. 1000 m, minimum order quantity 20 m sold by the meter
product brand nameSIMATIC NET
cable designation02YSY (ST) CY 1x2x0,64/2,55 BL KF40 FR
wire lengthsold by the meter
at 9.6 kHz / maximum0,0025 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,022 dB/m
Ürün Hakkında
PROFIBUS FC standart kablo IS GP, bus kablo 2-wire, shielded, special configuration için quick assembly, teslimat ünite: max. 1000 m, minimum order quantity 20 m sold by the meter
Siemens 6XV1831-2A
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useUsed for intrinsically safe distributed I/O systems for permanent installation
cable designation02YSY (ST) CY 1x2x0,64/2,55 BL KF40 FR
wire lengthsold by the meter
electrical data
at 9.6 kHz / maximum0,0025 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,022 dB/m
at 16 MHz / maximum0,042 dB/m
rated value150 Ω
at 9.6 kHz270 Ω
at 38.4 kHz185 Ω
at 3 MHz … 20 MHz150 Ω
of the characteristic impedance at 9.6 kHz10 %
of the characteristic impedance at 38.4 kHz10 %
of the characteristic impedance at 3 MHz … 20 MHz10 %
loop resistance per length / maximum110 mΩ/m
shield resistance per length / maximum9,5 Ω/km
insulation resistance coefficient16000 GΩ·m
capacity per length / at 1 kHz28,5 pF/m
RMS value80 V
mechanical data
number of electrical cores2

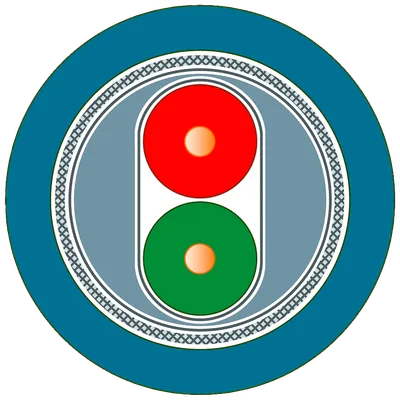

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnectVar
of AWG22 insulated conductor0,64 mm
of inner conductor0,64 mm
of the wire insulation2,55 mm
of the inner sheath of the cable5,4 mm
of cable sheath8 mm
symmetrical tolerance of the outer diameter / of cable sheath0,4 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cablePVC
of cable sheathPVC
of the insulation of data wiresred/green
of cable sheathblue
with single bend / minimum permissible37,5 mm
with multiple bends / minimum permissible75 mm
tensile load / maximum100 N
weight per length80 kg/km
ambient conditions
during operation-40... +75 °C
during storage-40... +75 °C
during transport-40... +75 °C
during installation-40... +75 °C
noteelectrical properties measured 20 °C
fire behaviorflame resistant according to IEC 60332-3-24 (Category C)
class of burning behaviour / according to EN 13501-6Eca
to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; CMG / CL3 / Sun Res
UL/ETL style / 600 V RatingVar
EAC approvalVar
CE markingVar
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total0,92 kg
during manufacturing0,8 kg
during operation0,02 kg
after end of life0,1 kg
