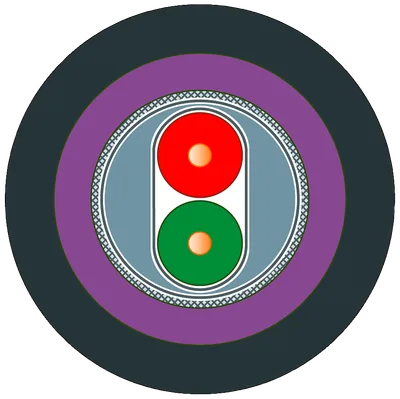

Siemens 6XV1830-3FH10
PROFIBUS FC UNDERGROUND kablo, Underground kablo 2-core shielded, sold by the meter teslimat ünite max. 1000 m minimum order quantity 20 m.
product brand nameSIMATIC NET
suitability for useUsed for buried cables
wire lengthsold by the meter
at 9.6 kHz / maximum0,0025 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,022 dB/m
Ürün Hakkında
PROFIBUS FC UNDERGROUND kablo, Underground kablo 2-core shielded, sold by the meter teslimat ünite max. 1000 m minimum order quantity 20 m.
Siemens 6XV1830-3FH10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useUsed for buried cables
cable designation02YSY (ST) CY2Y 1x2x0,64/2,55-150 SW KF 40
wire lengthsold by the meter
electrical data
at 9.6 kHz / maximum0,0025 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,022 dB/m
at 16 MHz / maximum0,042 dB/m
rated value150 Ω
at 9.6 kHz270 Ω
at 38.4 kHz185 Ω
at 3 MHz … 20 MHz150 Ω
of the characteristic impedance at 9.6 kHz10 %
of the characteristic impedance at 38.4 kHz10 %
of the characteristic impedance at 3 MHz … 20 MHz10 %
loop resistance per length / maximum110 mΩ/m
shield resistance per length / maximum9,5 Ω/km
capacity per length / at 1 kHz28,5 pF/m
RMS value80 V
mechanical data
number of electrical cores2
design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnectVar
of inner conductor0,65 mm
of the wire insulation2,55 mm
of the inner sheath of the cable5,4 mm
of cable sheath10,8 mm
of cable sheath / noteThe cable (diameter 8,0 mm +-0.4 mm) has an additional black outer cover (diameter 10,8 mm +-0.5 mm) as protection against damage if laid in the ground. because of outer diameter > 8 mm: Bus connectors can only be connected after removing the outer cover.
symmetrical tolerance of the outer diameter / of cable sheath0,5 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cablePVC
of cable sheathPE/PVC; PVC (sheath of the cable), PE (additional outer sheath)
of the insulation of data wiresred/green
of cable sheathBlack
with single bend / minimum permissible41 mm
with multiple bends / minimum permissible81 mm
tensile load / maximum100 N
weight per length117 kg/km
ambient conditions
during operation-40... +60 °C
during storage-40... +60 °C
during transport-40... +60 °C
during installation-40... +60 °C
noteelectrical properties measured 20 °C
fire behaviorinflammable
class of burning behaviour / according to EN 13501-6Fca
to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)
to greaseConditional resistance
to waterResistant
radiological resistance / to UV radiationresistant / Sunlight resistant acc. to UL 444 Sec. 7,12
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingYok
UL/ETL style / 600 V RatingYok
certificate of suitabilityCE, FCC, IC, cULus
EAC approvalVar
CE markingVar
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
