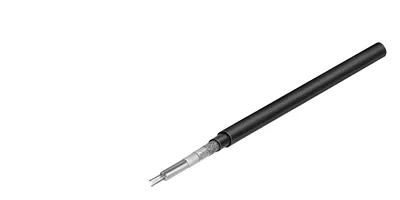

Siemens 6XV1830-0MH10
PROFIBUS marine kablo SIENOPYR, copper kablo için laying on ships ve OFFSHORE units, Sold by the meter teslimat ünite max. 1000 m/ min. 20 m.
product brand nameSIMATIC NET
cable designationM-02Y (ST) CH X 1 x 2 x 0,35.100 V
wire lengthsold by the meter
at 9.6 kHz / maximum0,003 dB/m
at 38.4 kHz / maximum0,005 dB/m
at 4 MHz / maximum0,022 dB/m
Ürün Hakkında
PROFIBUS marine kablo SIENOPYR, copper kablo için laying on ships ve OFFSHORE units, Sold by the meter teslimat ünite max. 1000 m/ min. 20 m.
Siemens 6XV1830-0MH10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useCable for fixed installation on ships ve offshore facilities in all enclosed spaces ve on open decks. This cable cannot be used for permanent installation in water.
cable designationM-02Y (ST) CH X 1 x 2 x 0,35.100 V
wire lengthsold by the meter
electrical data
at 9.6 kHz / maximum0,003 dB/m
at 38.4 kHz / maximum0,005 dB/m
at 4 MHz / maximum0,022 dB/m
at 16 MHz / maximum0,045 dB/m
rated value150 Ω
at 9.6 kHz250 Ω
at 38.4 kHz185 Ω
at 3 MHz … 20 MHz150 Ω
of the characteristic impedance at 9.6 kHz10 %
of the characteristic impedance at 38.4 kHz10 %
of the characteristic impedance at 3 MHz … 20 MHz10 %
loop resistance per length / maximum110 mΩ/m
insulation resistance coefficient16000 GΩ·m
RMS value100 V
mechanical data
number of electrical cores2
design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnectYok
of inner conductor0,67 mm
of the inner sheath of the cable8 mm
of cable sheath9,8 mm
of cable sheath / noteOuter diameter > 8 mm: Bus connectors can only be connected after removing the outer cover
symmetrical tolerance of the outer diameter / of cable sheath0,5 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cableHalogen-free polymer (HM4)
of cable sheathHalogen-free, cross-linked polymer
of the insulation of data wiresred/green
of cable sheathBlack
with single bend / minimum permissible98 mm
with multiple bends / minimum permissible196 mm
tensile load / maximum100 N
weight per length110 kg/km
ambient conditions
during operation-35... +80 °C
during storage-35... +80 °C
during transport-35... +80 °C
during installation-15... +80 °C
noteelectrical properties measured 20 °C
ambient condition / for operationAt ambient temperatures below -15 °C, the cable must not be subjected to any movements other than the normal vibration levels encountered on board ship
fire behaviorflame resistant according to IEC 60332-3-24, IEC 607542, IEC 61031, DIN VDE 0472 Part 805 Prüfart B
to mineral oilresistant to diesel fuel according to DIN VDE 51601, ASTM oil Yok. 2 according to DIN 53521, oil, NATOCode 0178, BWTL 91500031/2 according to VG 95214 Part 4, hydraulic fluid, NATOCode H515, BWTL 91500020 according to VG 95214 Part 4, cold cleaning solvent, BW-TL 68500017 according to VG 95214 Part 4, deionized water according to VG 95214 Part 4, deionized water with 3,5% NaCl
to greaseresistant
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeVar
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingYok
UL/ETL style / 600 V RatingYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Var
Germanische Lloyd (GL)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
