Detayları Gör
Siemens
6GK1411-1AC00
MFR #6GK1411-1AC00
SKU #YLSUPUJLQ5SX
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

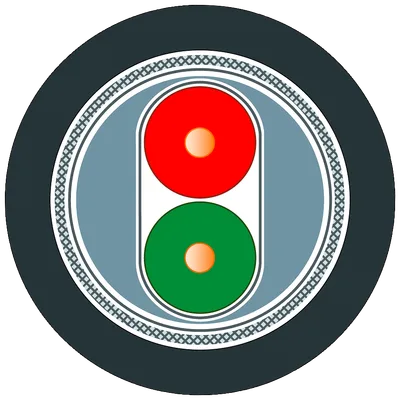

Siemens 6XV1830-0GH10
PROFIBUS FC FOOD bus kablo ile PE outer sheath için use in the food ve beverage industry 2-core shielded, sold by the meter teslimat ünite max. 1000 m minimum order quantity 20 m.
product brand nameSIMATIC NET
cable designation02YSY (ST) C2Y 1x2x0,64/2,55-150 KF 40
wire lengthsold by the meter
at 9.6 kHz / maximum0,0025 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,022 dB/m
Ürün Hakkında
PROFIBUS FC FOOD bus kablo ile PE outer sheath için use in the food ve beverage industry 2-core shielded, sold by the meter teslimat ünite max. 1000 m minimum order quantity 20 m.
Siemens 6XV1830-0GH10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor use in the food, beverages ve tobacco industries
cable designation02YSY (ST) C2Y 1x2x0,64/2,55-150 KF 40
wire lengthsold by the meter
electrical data
at 9.6 kHz / maximum0,0025 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,022 dB/m
at 16 MHz / maximum0,042 dB/m
rated value150 Ω
at 9.6 kHz270 Ω
at 38.4 kHz185 Ω
at 3 MHz … 20 MHz150 Ω
of the characteristic impedance at 9.6 kHz10 %
of the characteristic impedance at 38.4 kHz10 %
of the characteristic impedance at 3 MHz … 20 MHz10 %
loop resistance per length / maximum110 mΩ/m
shield resistance per length / maximum9,5 Ω/km
capacity per length / at 1 kHz28,5 pF/m
RMS value80 V
mechanical data
number of electrical cores2
design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnectVar
of inner conductor0,65 mm
of the wire insulation2,55 mm
of the inner sheath of the cable5,4 mm
of cable sheath8 mm
symmetrical tolerance of the outer diameter / of cable sheath0,4 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cablePVC
of cable sheathPE; Outer cover made of PE is especially suitable for the food processing industry
of the insulation of data wiresred/green
of cable sheathBlack
with single bend / minimum permissible30 mm
with multiple bends / minimum permissible60 mm
tensile load / maximum100 N
weight per length67 kg/km
ambient conditions
during operation-40... +60 °C
during storage-40... +60 °C
during transport-40... +60 °C
during installation-40... +60 °C
noteelectrical properties measured 20 °C
fire behaviorinflammable
class of burning behaviour / according to EN 13501-6Fca
to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingYok
UL/ETL style / 600 V RatingYok
EAC approvalVar
CE markingVar
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
