Siemens 6XV1820-6BN30

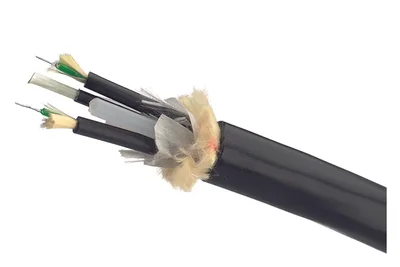

Flex. Fiber Optic kablo (62,5/125), Trailing kablo, splittable, Pre-assembled ile 4 BFOC connectors, uzunluk 30 m.
product brand nameSIMATIC NET
version of the assembled FO cableAssembled with four BFOC connectors
cable designationAT-W11Y(ZN)11Y 2 G 62,5/125 OM1
wire length30 m
at 850 nm / maximum3 dB/km
at 1300 nm / maximum0,8 dB/km
Ürün Hakkında
Flex. Fiber Optic kablo (62,5/125), Trailing kablo, splittable, Pre-assembled ile 4 BFOC connectors, uzunluk 30 m.
Siemens 6XV1820-6BN30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFlexible cable for installation in cable carriers indoors ve outdoors
version of the assembled FO cableAssembled with four BFOC connectors
cable designationAT-W11Y(ZN)11Y 2 G 62,5/125 OM1
wire length30 m
optical data
at 850 nm / maximum3 dB/km
at 1300 nm / maximum0,8 dB/km
at 850 nm300 GHz·m
at 1300 nm800 GHz·m
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fiberMultimode graded-index fiber 62,5/125 µm, OM 1
design of the FOC coreHollow core, filled, diameter 1400 µm
design of the fiber-optic cableSegmentable outer conductor
of the optical fibers62,5 µm
of the optical fiber sheath125 µm
of the FOC core sheath3,5 mm
outer diameter / of the cable12,9 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathQuartz glass
of the FOC core sheathPUR
of the fiber-optic cable sheathPUR
of the strain reliefAramid fibers, also GRP central element
of the FOC core sheathblack
of cable sheathBlack
with single bend / minimum permissible150 mm
with multiple bends / minimum permissible150 mm
number of bending cycles100000
during installation / short-term2000 N
during operation / maximum1000 N
weight per length130 kg/km
ambient conditions
during operation-30... +60 °C
during storage-30... +70 °C
during transport-30... +70 °C
during installation-30... +60 °C
fire behaviorflammable
to mineral oilacc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +100 °C, 168 h, pull speed 250 mm/min
to greaseresistant
radiological resistance / to UV radiationresistant
protection class IPIP20
product features, product functions, product components / general
halogen-freeVar
silicon-freeVar
product component / rodent protectionYok
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum4000 m
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum500 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum1000 m
for glass FOC / with PROFIBUS / maximum3000 m
standards, specifications, approvals
RoHS conformityVar
