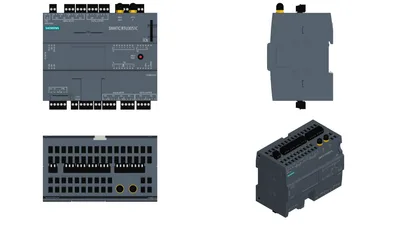

Siemens 6NH3112-5BB00-0XX0

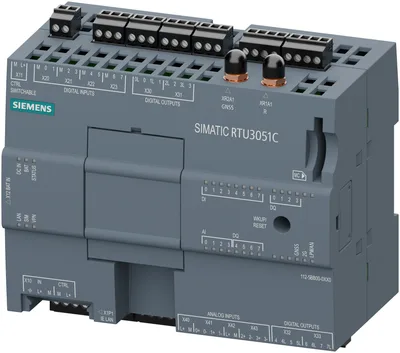

SIMATIC RTU3051C compact low-power RTU; battery veya solar-operated; bağlantı harici güç kaynağı 10,8 V to 28,8 V DC; dahili modem için LTE-M/NB-IoTv2; GNSS; bağlantı to TeleControl Server temel; loadable protocols: DNP3, IEC 60870-5-104, SINAUT ST7 veya MQTT; onboard I/Os: 8 DI, 8 DO, 4 AI; FTP client; Ethernet port, configuration/diagnostics via web server, time-of-day synchronization, SMS, email, SD card slot. observe national approvals!
product brand nameSIMATIC NET
for Industrial Ethernet10... 100 Mbit/s
— with downlink / maximum264 kbit/s
— with uplink / maximum210 kbit/s
— with downlink / maximum588 kbit/s
— with uplink / maximum1000 kbit/s
Ürün Hakkında
SIMATIC RTU3051C compact low-power RTU; battery veya solar-operated; bağlantı harici güç kaynağı 10,8 V to 28,8 V DC; dahili modem için LTE-M/NB-IoTv2; GNSS; bağlantı to TeleControl Server temel; loadable protocols: DNP3, IEC 60870-5-104, SINAUT ST7 veya MQTT; onboard I/Os: 8 DI, 8 DO, 4 AI; FTP client; Ethernet port, configuration/diagnostics via web server, time-of-day synchronization, SMS, email, SD card slot. observe national approvals!
Siemens 6NH3112-5BB00-0XX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
operating modeStandby mode (Sleep mode), Actualization mode, Communication mode
transfer rate
for Industrial Ethernet10... 100 Mbit/s
— with downlink / maximum264 kbit/s
— with uplink / maximum210 kbit/s
— with downlink / maximum588 kbit/s
— with uplink / maximum1000 kbit/s
— with downlink / maximum120 kbit/s
— with uplink / maximum160 kbit/s
interfaces
number of interfaces / according to Industrial Ethernet1
at the 1st interface / according to Industrial Ethernet1
for external antenna(s)2
for power supply1
for SIM cards1
for memory cards1
at the 1st interface / according to Industrial EthernetRJ45 port
for external antenna(s)SMA socket (50 ohms)
for power supply5-pole plugable terminal block
at connection 1 / connectablemobile wireless antenna
at connection 2 / connectableactive GNSS antenna
for SIM cardMini SIM card, with adapter Micro SIM card also
of the memory cardSD 1,0, SD 1,1, SDHC, Siemens SMC
storage capacity / of the memory card / maximum32 Gibyte
C-PLUGYok
signal inputs/outputs
number of electrical connections / for digital input signals8
type of electrical connection / for digital input signalspluggable screw terminal block
digital input versionSuitable for open-drain transistor veya switch, 2-wire-technique
number of electrical connections / as counter inputs / for digital input signals2
pulse duration / at counter input / minimum0,1 ms
pulse frequency / at counter input / maximum5000 Hz
number of electrical connections / for digital output signals8
type of electrical connection / for digital output signalspluggable screw terminal block
digital output version4DO bistable relay, 2-wire technology 4DO solid-state relay
output current / at digital output300 mA; Limiting continuous current, with solid-state relays 60 mA
number of analog inputs / integrated4
connector type / at the analog inputpluggable screw terminal block
type of analog input2-/3-/4-wire-technique
product function / parameterizable analog inputsVar; Current 0/4..20mA, Voltage 0..5/10V, Temperature (Pt1000) -80..+140°C
A/D resolution / at the analog input12 bit
wireless technology
SMSVar
GPRSVar
GPRS (Multislot Class 10)
LTE-MVar
NB-IoTVar
GSMVar
operating frequency / for GSM transmission850 MHz, 900 MHz, 1800 MHz, 1900 MHz
operating frequency / for LTE-M transmissionband 1 (2100 MHz), band 2 (1900 MHz), band 3 (1800 MHz), band 4 (1700 MHz), band 5 (850 MHz), band 8 (900 MHz), band 12 (700 MHz), band 13 (700 MHz), band 18 (850 MHz), band 19 (850 MHz), band 20 (800 MHz), band 26 (850 MHz), band 28 (700 MHz)
operating frequency / for NB-IoT transmissionband 1 (2100 MHz), band 2 (1900 MHz), band 3 (1800 MHz), band 5 (850 MHz), band 8 (900 MHz), band 12 (700 MHz), band 13 (700 MHz), band 18 (850 MHz), band 19 (850 MHz), band 20 (800 MHz), band 26 (800 MHz), band 28 (700 MHz)
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / external / at DC12... 24 V
supply voltage / external / at DC / rated value10,8... 28,8 V
type of output voltage / for the supply of external devicesDC 12 V veya 24 V
supply voltage / for GPS antenna / maximum3,8 V; Nominal 3,8 V (3,575 V @5 mA, 3,35 V @ 10 mA, 3,125 V @ 15 mA)
consumed current / notewithout connected consumers
— in standby mode / typical14 mA
— in update mode / typical35 mA
— in communication mode / typical83 mA
— in standby mode / typical0,28 mA
— in update mode / typical71 mA
— in communication mode / typical208 mA
output current / for GPS antenna / maximum15 mA
power loss [W]without connected consumers
in standby mode / typical0,34 W
in update mode / typical0,85 W
in communication mode / typical2 W
in standby mode / typical0,002 W
in update mode / typical0,51 W
in communication mode / typical1,5 W
ambient conditions
for vertical installation / during operation-40... +60 °C
for horizontally arranged busbars / during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 30 °C / without condensation / during operation / maximum95 %
protection class IPIP20; IP68 with protective housing (see accessories)
design, dimensions and weights
module formatCompact module
width130 mm
height100 mm
depth75 mm
net weight0,37 kg
35 mm DIN-rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / cloud connectivity
Message Queuing Telemetry Transport (MQTT)Var
HTTPVar
trigger managementVar
time stampingVar
product feature / for cloud connectivity / buffered message frame memoryVar
performance data
number of users/telephone numbers/email addresses / definable / maximum20
number of user groups / definable / maximum10
number of program block types46
number of configurable program blocks48
number of digital bit memories / maximum48
number of analog bit memories / maximum24
performance data / IT functions
as client / by means of FTP / maximum1
number of entries / in the FTP buffer / maximum12
as server / by means of HTTP / maximum2
as server / by means of HTTPS / maximum2; http ve https can be combined (maks. number of 2 connections cannot be exceeded). Maks. one connection via https is possible on the mobile wireless interface.
as email client / maximum1
number of free texts / for emails and SMS / maximum20
number of characters / per free text for emails or SMS / maximum160
number of entries / in the email buffer / maximum12
performance data / telecontrol
node stationYok
substationVar
TIM control centerYok
control center connectionIEC 60870-5-104, DNP3-capable control centers, SINAUT ST7cc/sc, ST7 ScadaConnect, TeleControl Server Basic
by means of a permanent connectionsupported
by means of demand-oriented connectionsupported
DNP3Var
IEC 60870-5Var
SINAUT ST1 protocolYok
SINAUT ST7 protocolVar
product function / data buffering if connection is abortedVar; number of telegrams for: IEC 60870: yaklaşık 5,000, DNP3: yaklaşık 10,900, SINAUT ST7: yaklaşık 7,700, TeleControl Server Basic: yaklaşık 10,900
data volume / as user data per station / in telecontrol mode / maximum256 Kibyte
product feature / buffered message frame memoryVar
performance data / teleservice
diagnostics function / online diagnostics with SIMATIC STEP 7Yok
program download with SIMATIC STEP 7Yok
remote firmware updateVar
remote configurationVar
product functions / management, configuration, engineering
requiredYok, configuration by using the dahili webserver
with Modbus TCPVar
with HART-IP protocolVar
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / security
operating mode / Virtual Private Network (VPN)Var; OpenVPN client
product function / with VPN connectionOpenVPN
type of encryption algorithms / with VPN connectionAES-128, AES-256
type of authentication procedure / with VPN connectioncertificate based
type of authentication / with Virtual Private Network / PSKYok
type of hashing algorithms / with VPN connectionSHA-256
number of possible connections / with VPN connection2; one simultaneous productive connection only
password protection for Web applicationsVar
password protection for teleservice accessVar
password protection for VPNVar
encrypted data transmissionVar
switch-off of non-required servicesVar
SysLogVar
product functions / time
NTPVar
product component / hardware real time clockVar
product feature / hardware real time clock w. battery backupVar
accuracy / of the hardware real time clock / per day / maximum1,8 s
from NTP-serverVar
from GPS-signalVar
from control centerVar
from mobile network providerVar
PCVar
manual settingVar
product functions / position detection
position detection with GPSVar
pass on position dataVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / cULus approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total37,97 kg
during manufacturing28,1 kg
during operation9,4 kg
after end of life0,47 kg
