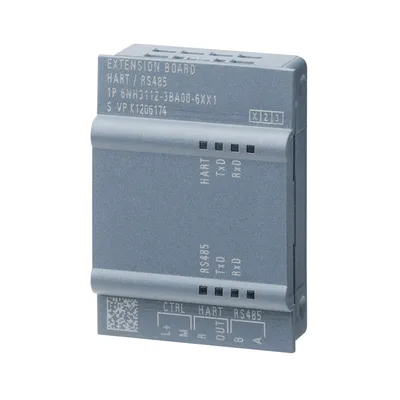

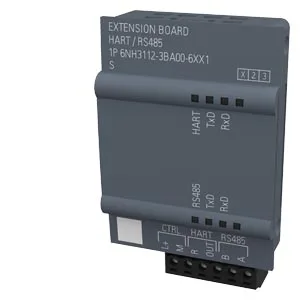

Siemens 6NH3112-3BA00-6XX1
Extension Board HART/RS485 için low-power RTU3000C family; bağlantı of 16 Modbus RTU devices veya of 16 HART devices in multidrop mode, max. 32 variables.
product brand nameSIMATIC NET
according to RS 2329600... 115200 bit/s
for power supplyinternal, via RTU3000C
output current / at digital output300 mA; Limiting continuous current
type of voltage / of the supply voltageDC
consumed current / notewithout connected consumers
Ürün Hakkında
Extension Board HART/RS485 için low-power RTU3000C family; bağlantı of 16 Modbus RTU devices veya of 16 HART devices in multidrop mode, max. 32 variables.
Siemens 6NH3112-3BA00-6XX1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
according to RS 2329600... 115200 bit/s
interfaces
for external data transmission / according to RS 2321
at interface 1 / for external data transmission6-pin plug-in terminal strip
for power supplyinternal, via RTU3000C
interface design 1 / noteFor Modbus RTU (9600... 115200) bit/s, for HART 1200 bit/s
signal inputs/outputs
output current / at digital output300 mA; Limiting continuous current
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
type of output voltage / for the supply of external devicesDC 12 V veya 24 V
consumed current / notewithout connected consumers
— in update mode / typical3 mA
— in update mode / typical5 mA
power loss [W]without connected consumers
in update mode / typical0,08 W
in update mode / typical0,04 W
ambient conditions
for vertical installation / during operation-40... +60 °C
for horizontally arranged busbars / during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 30 °C / without condensation / during operation / maximum95 %
protection class IPIP20; IP68 with protective housing (see accessories)
design, dimensions and weights
module formatPlug-in module
width38 mm
height62 mm
depth21 mm
net weight0,022 kg
35 mm DIN-rail mountingYok
wall mountingYok
product features, product functions, product components / general
with RS 485 interface / maximum30 m
performance data / telecontrol
control center connectionvia RTU3000C
Modbus RTUVar
HART protocolVar
protocol version / for HART communicationHART Multidrop
address range / of HART as masterfrom 0 to 63
address range / of Modbus RTU as masterfrom 1 to 247
product functions / management, configuration, engineering
requiredYok, configuration via RTU3000C
product functions / diagnostics
product function / web-based diagnosticsVar; over RTU3000C
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
