Siemens 6GT2801-5BA30

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

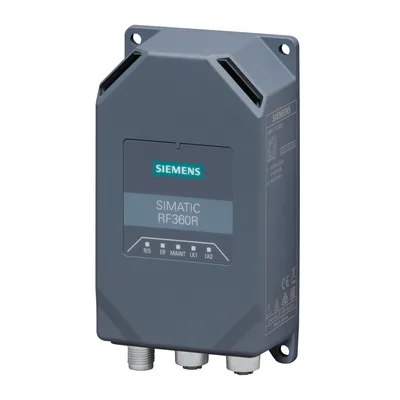

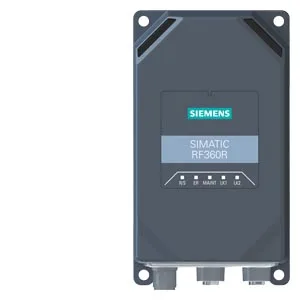

Siemens 6GT2801-5BA30

Successor 6GT2801-5BB30 start of delivery planned for 08/27 RF360R; for PROFINET, Ethernet, EtherNet/IP, OPC/UA

SiemensMFR # 6GT2801-5BA30SKU # YLSUTCWYYXM4T1C
product brand nameSIMATIC RF
operating frequency / rated value13,56 MHz
protocol / with radio transmissionRF300-specific, ISO 15693, ISO 18000-3
product feature / multitag-capableYok
for write access / per byte / typical0,13 ms
for read access / per byte / typical0,13 ms
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Successor 6GT2801-5BB30 start of delivery planned for 08/27 RF360R; for PROFINET, Ethernet, EtherNet/IP, OPC/UA

Siemens 6GT2801-5BA30

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMATIC RF
suitability for operationRF300 ve ISO 15693 transponder, for direct connection to Ethernet, PROFINET, OPC UA server dahili
radio frequencies
operating frequency / rated value13,56 MHz
protocol / with radio transmissionRF300-specific, ISO 15693, ISO 18000-3
transfer rate / with radio transmission / maximum106 kbit/s
product feature / multitag-capableYok
electrical data
for write access / per byte / typical0,13 ms
for read access / per byte / typical0,13 ms
interfaces
standard for interfaces / for communicationEthernet, PROFINET, XML, OPC/UA
type of electrical connection#NO_DATA
for external antenna(s)#NO_DATA
for supply voltageM12, 4-pin, socket, L-code
for communications interface2 x M12, 4-pin, D-coded
mechanical data
materialPA 12
colortitanium gray
tightening torque / of the screw for securing the equipment / maximum1,5 N·m
mounting distance / relating to metal surfaces / recommended / minimum0 mm
supply voltage, current consumption, power loss
rated value24 V
20,4... 28,8 V
at 24 V / typical0,15 A
ambient conditions
during operation-25... +55 °C
during storage-40... +70 °C
during transport-40... +70 °C
protection class IPIP67
shock resistanceEN 60721-3-7 Class 7 M2
shock acceleration500 m/s²
vibrational acceleration200 m/s²
design, dimensions and weights
width141 mm
height42 mm
depth80 mm
net weight0,41 kg
fastening method4 x M5 screws
product features, product functions, product components / general
display version5-color LED
protocol / is supported / Media Redundancy Protocol (MRP)Var
product function / of the PROFINET IO device / is supported / H-Sync forwardingYok
LLDPVar
PROFINET IO protocolVar
TCP/IPVar
SNMP v1Var
SNMP v2Yok
SNMP v3Var
DCPVar
EtherNet/IP protocolYok
OPC UAVar
product feature / silicon-freeVar
product functions / management, configuration, engineering
type of parameterizationHSP, GSDML, EDS, TO, WBM
type of programmingIdent profile, library with functions, OPC UA, XML
type of computer-switched communicationacyclic communication, TCP/IP
standards, specifications, approvals
certificate of suitabilityRadio acc. to R&TTE guidelines EN 300.330, EN 301489, CE, FCC, cULus, ATEX: EN 60079-0:2012+A11:2013, EN 60079-7:2015, EN60079-31:2014, IEC Ex: IEC 60079-0:2011, IEC 60079-31:2013, EN 60079-7:2015, UL HAZ.LOC: UL 60079-0, CSA C22.2 NO.60079-0, UL 60079-7, CSA C22.2 NO. 60079-7, UL 60079-31, CSA C22.2 NO. 60079-31
IECExYok
MTBF65 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total169,48 kg
during manufacturing71,5 kg
during operation97,11 kg
after end of life0,87 kg

Aksesuarlar 45

Siemens 6GT2801-5BA30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
6GK1901-0DB20-6AA0Aksesuar
6GK1901-0DM20-2AA5Aksesuar
6GK1901-1BB10-2AA0Aksesuar
6GK1906-0EB00Aksesuar
6XV1801-2BAksesuar · Cables · power cables
6XV1871-5BH10Aksesuar · Cables · network cable electrical
6XV1871-5BH20Aksesuar · Cables · network cable electrical
6XV1871-5BH30Aksesuar · Cables · network cable electrical
6XV1871-5BH50Aksesuar · Cables · network cable electrical
6XV1871-5BN10Aksesuar · Cables · network cable electrical
6XV1871-5BN12Aksesuar · Cables · network cable electrical
6XV1871-5BN15Aksesuar · Cables · network cable electrical
6XV1871-5BN20Aksesuar · Cables · network cable electrical
6XV1871-5BN30Aksesuar · Cables · network cable electrical
6XV1801-6DE50Aksesuar · Cables · power cables
6XV1801-6DH10Aksesuar · Cables · power cables
6XV1801-6DH15Aksesuar · Cables · power cables
6XV1801-6DH20Aksesuar · Cables · power cables
6XV1801-6DH30Aksesuar · Cables · power cables
6XV1801-6DH50Aksesuar · Cables · power cables
6XV1801-6DN10Aksesuar · Cables · power cables
6XV1801-6DN15Aksesuar · Cables · power cables
6XV1801-6GE50Aksesuar · Cables · power cables
6XV1801-6GH10Aksesuar · Cables · power cables
6XV1801-6GH15Aksesuar · Cables · power cables
6XV1801-6GH20Aksesuar · Cables · power cables
6XV1801-6GH30Aksesuar · Cables · power cables
6XV1801-6GH50Aksesuar · Cables · power cables
6XV1801-6GN10Aksesuar · Cables · power cables
6XV1801-6GN15Aksesuar · Cables · power cables
6XV1840-2AH10Aksesuar · Cables · network cable electrical
6XV1870-8AE30Aksesuar · Cables · network cable electrical
6XV1870-8AE50Aksesuar · Cables · network cable electrical
6XV1870-8AH10Aksesuar · Cables · network cable electrical
6XV1870-8AH15Aksesuar · Cables · network cable electrical
6XV1870-8AH20Aksesuar · Cables · network cable electrical
6XV1870-8AH30Aksesuar · Cables · network cable electrical
6XV1870-8AH50Aksesuar · Cables · network cable electrical
6XV1870-8AN10Aksesuar · Cables · network cable electrical
6XV1870-8AN15Aksesuar · Cables · network cable electrical
6XV1871-5TH20Aksesuar · Cables · network cable electrical
6XV1871-5TH30Aksesuar · Cables · network cable electrical
6XV1871-5TH50Aksesuar · Cables · network cable electrical
6XV1871-5TN10Aksesuar · Cables · network cable electrical
6XV1871-5TN15Aksesuar · Cables · network cable electrical
