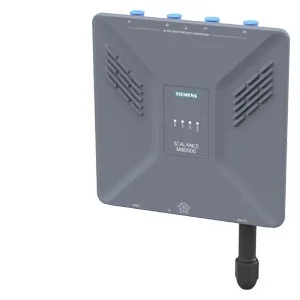

Siemens 6GK8553-0AB00-1AA1
SCALANCE MRB85533M Radio ünite (RU), IP65, için kablosuz IP communication from Ethernet- based applications via private 5G networks, n78 3,3…3,6 GHz, 24 dBm transmit güç, bağlantı to SIMATIC IPC1047E + SINEC Industrial 5G RAN via SFP+ in the fronthaul (FH), 4x N-Connect connections, 10 Gbps optical SFP+, 24 V DC, M12 L-encoded,- 30 °C…+60 °C, SSR: special sales açtırma! Observe national approvals!
product brand nameSCALANCE
number of interfaces / according to USB1; debug interface USB (Type C)
operating frequency3.300... 3.600 MHz
size of channel bandwidths20/50/100 MHz
type of modulationQPSK/16QAM/64QAM/256QAM
24 V
Ürün Hakkında
SCALANCE MRB85533M Radio ünite (RU), IP65, için kablosuz IP communication from Ethernet- based applications via private 5G networks, n78 3,3…3,6 GHz, 24 dBm transmit güç, bağlantı to SIMATIC IPC1047E + SINEC Industrial 5G RAN via SFP+ in the fronthaul (FH), 4x N-Connect connections, 10 Gbps optical SFP+, 24 V DC, M12 L-encoded,- 30 °C…+60 °C, SSR: special sales açtırma! Observe national approvals!
Siemens 6GK8553-0AB00-1AA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum1; SFP+
number of electrical connections / for external antenna(s)4; 4x4 MIMO, N-type antenna connectors for external connections
type of electrical connection / for external antenna(s)N socket, N bulkhead jack
number of interfaces / according to USB1; debug interface USB (Type C)
type of electrical connection / at the digital inputs/outputsM12 (4-pole, L-coded)
WAN connection
type of wireless network / is supported / 5G private networksVar
frequency band / is supported / 5G Standalone (SA)n78
wireless & modem
operating frequency3.300... 3.600 MHz
operating mode / time-division duplexing (TDD)Var
size of channel bandwidths20/50/100 MHz
transmit power / maximum0,25 W; 24 dBm per channel ve antenna port (with DPD enabled), PII > 18%
type of modulationQPSK/16QAM/64QAM/256QAM
supply voltage, current consumption, power loss
24 V
16,8... 31,2 V
type of voltage / of the supply voltageDC
at rated supply voltage / maximum1,5 A
power loss [W] / typical36,2 W
supply voltage / 1 / from M12 power Connector (L-coded) for redundant voltage supply24 V
ambient conditions
during operation-30... +60 °C
during storage-40... +70 °C
during transport-70... +90 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP65
design, dimensions and weights
designcompact
width0,258 m
height0,053 m
depth0,258 m
net weight3.382 kg
material / of the enclosurealuminum
fastening methodceiling, mast ve wall mounting; 4 M5 screws on the back for VESA, 4 mounting devices with d=5,5 mm for wall veya ceiling installation
standards, specifications, approvals
for EMCframe standards: ETSI EN 301 489-1 V2.2.3 ve basic standards: EN 55011:2016 + A1:2017 + A2: 2021 + A11:2020 CISPR 11:2019 (CISPR 11 (2015-06) + AMD 1 (2016-06) + AMD 2 (2019-01))
for emitted interferencebasic standards: EN 55032:2015 + A1: 2020 + A11: 2020 CISPR 32 EDITION 2,1: 2019, EN IEC 61000-6-3: 2021, EN IEC 61000-6-4: 2018
for interference immunitybasic standards: EN 55035:2017 + A11: 2020 CISPR 35:2016, EN IEC 61000-6-1: 2019, EN IEC 61000-6-2: 2019 (burst: 5 kHz ve 100 kHz)
certificate of suitabilityEN IEC 61000-6-2: 2019 (burst: 5 kHz ve 100 kHz)
according to IEEE 1588 v2-Precision Time ProtocolVar
SyncEVar
MTBF / at 40 °C25 a
