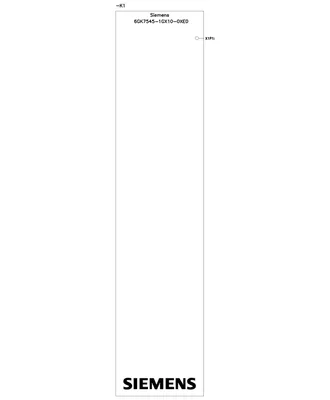

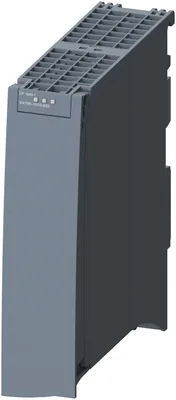

Siemens 6GK7545-1GX10-0XE0
Communications processor CP 1545-1 için connecting SIMATIC S7-1500 to Industrial Ethernet; TCP/IP, ISO, UDP, S7 communication, security (VPN, firewall), SNMPv1/v3, DHCP, FTP client/server, email, IPv4/IPv6, IEEE 802.1X (radius), time synchronization via NTP, bağlantı to cloud systems via MQTT, 1x RJ45 (10/100/1000 Mbps).
product brand nameSIMATIC NET
at the 1st interface10... 1000 Mbit/s
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
at 15 V3 %
power loss [W]3,75 W
Ürün Hakkında
Communications processor CP 1545-1 için connecting SIMATIC S7-1500 to Industrial Ethernet; TCP/IP, ISO, UDP, S7 communication, security (VPN, firewall), SNMPv1/v3, DHCP, FTP client/server, email, IPv4/IPv6, IEEE 802.1X (radius), time synchronization via NTP, bağlantı to cloud systems via MQTT, 1x RJ45 (10/100/1000 Mbps).
Siemens 6GK7545-1GX10-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface10... 1000 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet1
at the 1st interface / according to Industrial Ethernet1
at the 1st interface / according to Industrial EthernetRJ45 port
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
at 15 V3 %
from backplane bus / at DC / at 15 V / typical0,25 A
power loss [W]3,75 W
ambient conditions
for vertical installation / during operation-30... +40 °C
for horizontally arranged busbars / during operation-30... +60 °C
during storage-40... +70 °C
during transport-40... +70 °C
notewithout condensation veya icing
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altituderestrictions for installation altitudes > 2.000 m, see manual
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-1500 single width
width35 mm
height142 mm
depth129 mm
net weight0,26 kg
S7-1500 rail mountingVar
product features, product functions, product components / general
per CPU / maximum8
notedepending on CPU type
product functions / cloud connectivity
Message Queuing Telemetry Transport (MQTT)Var
Advanced Message Queuing Protocol (AMQP)Yok
trigger managementVar
time stampingVar
product feature / for cloud connectivity / buffered message frame memoryYok
number of data points per device / maximum500
performance data / open communication
by means of T blocks / maximum118; depending on the system upper limit
as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum65536 bayt
number of Multicast stations118
performance data / S7 communication
maximum118; depending on the system upper limit
performance data / multi-protocol mode
number of active connections / with multi-protocol mode118
performance data / IT functions
as client / by means of FTP / maximum32
as server / by means of FTP / maximum16
as server / by means of HTTP / maximum4
as email client / maximum1
data volume / as user data for email / maximum64 Kibyte
performance data / telecontrol
TCP/IPVar
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
SNMP v3Var
DCPVar
LLDPVar
requiredSTEP 7 Professional V19 (TIA Portal) veya üstü
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar; via S7-1500 CPU
product functions / routing
service / routing / noteIP routing up to 1 Mbps
static IP routingVar
static IP routing IPv6Yok
dynamic IP routingYok
dynamic IP routing IPv6Yok
RIP v1Yok
RIPv2Yok
RIPnG for IPv6Yok
OSPFv2Yok
OSPFv3 for IPv6Yok
VRRPYok
VRRP for IPv6Yok
BGPYok
PPPYok
PPoE via DSLYok
product functions / security
firewall versionstateful inspection
product function / with VPN connectionIPSec
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168, DES-56
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1, SHA-256, SHA-384, SHA-512
number of possible connections / with VPN connection16
IEEE 802.1x (radius)Var
password protection for Web applicationsYok
ACL - IP-basedYok
ACL - IP-based for PLC/routingYok
switch-off of non-required servicesVar
blocking of communication via physical portsYok
log file for unauthorized accessVar
product functions / time
product function / SICLOCK supportYok
product function / pass on time synchronizationVar
NTPVar
NTS for NTPVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / cULus approvalVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total140,88 kg
during manufacturing21,24 kg
during operation119,29 kg
after end of life0,35 kg
Aksesuarlar 1
Siemens 6GK7545-1GX10-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GT2002-1HD01 | Zorunlu ek ürün · Identification systems · RFID |
