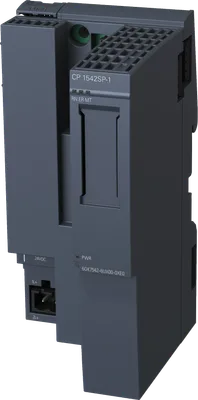

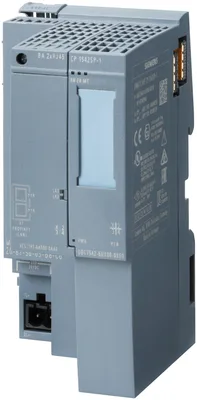

Siemens 6GK7542-6UX00-0XE0
Communications processor CP 1542SP-1 için bağlantı of an SIMATIC S7-ET 200SP to Industrial Ethernet; open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, Email, IPV4/IPV6, time-of-day synchronization via NTP, access to web server of CPU, bus adapter required.
product brand nameSIMATIC NET
at the 1st interface10... 100 Mbit/s
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage19,2... 28,8 V
power loss [W]6 W
Ürün Hakkında
Communications processor CP 1542SP-1 için bağlantı of an SIMATIC S7-ET 200SP to Industrial Ethernet; open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, Email, IPV4/IPV6, time-of-day synchronization via NTP, access to web server of CPU, bus adapter required.
Siemens 6GK7542-6UX00-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface10... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet1
at the 1st interface / according to Industrial Ethernet2
at the 1st interface / according to Industrial Ethernetvia ET 200SP bus adapter (RJ45, FC, SCRJ), dahili switch
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage19,2... 28,8 V
power loss [W]6 W
ambient conditions
for vertical installation / during operation-30... +50 °C
for horizontally arranged busbars / during operation-30... +60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
width60 mm
height117 mm
depth74 mm
net weight0,18 kg
35 mm top hat DIN rail mountingVar
product features, product functions, product components / general
per CPU / maximum2
note2 CPs can be pluged in per CPU, simultaneous operation with BA Send ve CM DP is possible
performance data / open communication
by means of T blocks / maximum32
as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum65536 bayt
performance data / S7 communication
maximum16
with OP connections / maximum16
performance data / multi-protocol mode
number of active connections / with multi-protocol mode32
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
SNMP v3Yok
DCPVar
LLDPVar
requiredSTEP 7 Professional V14 (TIA Portal) veya üstü
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar; via ET 200SP CPU
product functions / security
blocking of communication via physical portsVar
product functions / time
product function / SICLOCK supportVar
product function / pass on time synchronizationYok
NTPVar
NTP (secure)Yok
from NTP-serverVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total207,05 kg
during manufacturing19,13 kg
during operation187,74 kg
after end of life0,18 kg
Aksesuarlar 1
Siemens 6GK7542-6UX00-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6XV1812-8A | Aksesuar · Cables · power cables |
