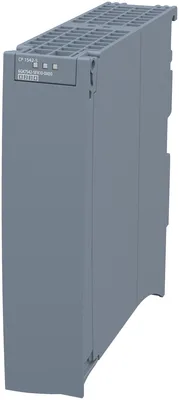

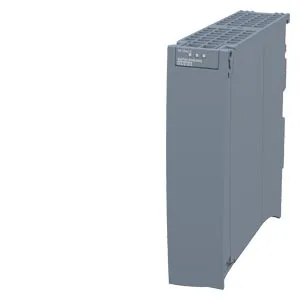

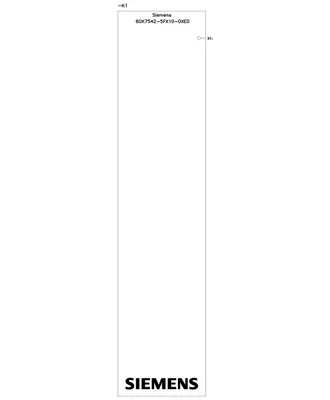

Siemens 6GK7542-5FX10-0XE0
communications processor CP 1542-5 için bağlantı of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master veya DP cihaz, S7 ve PG/OP communication, time synchronization, diagnostics, reduced quantity structure.
product brand nameSIMATIC NET
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
at 15 V3 %
power loss [W]3 W
during storage-40... +70 °C
Ürün Hakkında
communications processor CP 1542-5 için bağlantı of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master veya DP cihaz, S7 ve PG/OP communication, time synchronization, diagnostics, reduced quantity structure.
Siemens 6GK7542-5FX10-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface / according to PROFIBUS9,6 kbit/s... 12 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet0
at the 1st interface / according to PROFIBUS1
at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
at 15 V3 %
from backplane bus / at DC / at 15 V / typical0,2 A
power loss [W]3 W
ambient conditions
for vertical installation / during operation-30... +40 °C
for horizontally arranged busbars / during operation-30... +60 °C
during storage-40... +70 °C
during transport-40... +70 °C
notewithout condensation veya icing
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altituderestrictions for installation altitudes > 2.000 m, see manual
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-1500 single width
width35 mm
height142 mm
depth129 mm
net weight0,4 kg
S7-1500 rail mountingVar
product features, product functions, product components / general
per CPU / maximum8
notedepending on CPU type
performance data / PROFIBUS DP
DPV1Var
on DP master / operable32
of the address range of the inputs / as DP master / total2048 bayt
of the address range of the outputs / as DP master / total2048 bayt
of the address range of the inputs / per DP device244 bayt
of the address range of the outputs / per DP device244 bayt
DPV0Var
DPV1Var
of the address range of the inputs / as DP device / total240 bayt
of the address range of the outputs / as DP device / total240 bayt
performance data / S7 communication
maximum16; depending on the system upper limit
performance data / multi-protocol mode
number of active connections / with multi-protocol mode16
performance data / telecontrol
TCP/IPYok
product functions / management, configuration, engineering
requiredSTEP 7 Professional V18 (TIA Portal) veya üstü
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar; via S7-1500 CPU
product functions / time
product function / pass on time synchronizationVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / cULus approvalVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total115,52 kg
during manufacturing21,24 kg
during operation93,93 kg
after end of life0,35 kg
