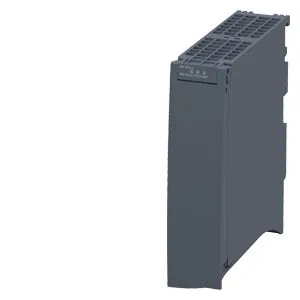

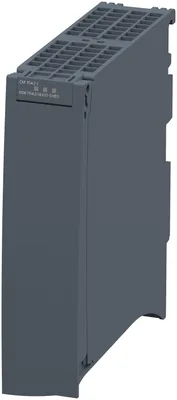

Siemens 6GK7542-1AX10-0XE0
CM 1542-1 communications modül için connecting SIMATIC S7-1500 to PROFINET as IO kontrolcü veya IO cihaz, TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast multicast, SNMPV1, time synchronization via NTP, 2xRJ45 (100 Mbps).
product brand nameSIMATIC NET
at the 1st interface100 Mbit/s
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
at 15 V3 %
power loss [W]3,3 W
Ürün Hakkında
CM 1542-1 communications modül için connecting SIMATIC S7-1500 to PROFINET as IO kontrolcü veya IO cihaz, TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast multicast, SNMPV1, time synchronization via NTP, 2xRJ45 (100 Mbps).
Siemens 6GK7542-1AX10-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet1
at the 1st interface / according to Industrial Ethernet2
at the 1st interface / according to Industrial EthernetRJ45 port
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
at 15 V3 %
from backplane bus / at DC / at 15 V / typical0,22 A
power loss [W]3,3 W
ambient conditions
for vertical installation / during operation-30... +40 °C
for horizontally arranged busbars / during operation-30... +60 °C
during storage-40... +70 °C
during transport-40... +70 °C
notewithout condensation veya icing
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altituderestrictions for installation altitudes > 2.000 m, see manual
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-1500 single width
width35 mm
height142 mm
depth129 mm
net weight0,4 kg
S7-1500 rail mountingVar
product features, product functions, product components / general
per CPU / maximum8
notedepending on CPU type
performance data / open communication
by means of T blocks / maximum64; depending on the system upper limit
as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum65536 bayt
number of Multicast stations6
performance data / S7 communication
maximum64; depending on the system upper limit
performance data / multi-protocol mode
number of active connections / with multi-protocol mode64
performance data / PROFINET communication / as PN IO controller
product function / PROFINET IO controllerVar
number of PN IO devices / on PROFINET IO controller / operable / total128
number of PN IO IRT devices / on PROFINET IO controller / operable64
number of external PN IO lines / with PROFINET / per rack10
as user data for input variables / as PROFINET IO controller / maximum8 Kibyte
as user data for output variables / as PROFINET IO controller / maximum8 Kibyte
as user data for input variables per PN IO device / as PROFINET IO controller / maximum1433 bayt
as user data for output variables per PN IO device / as PROFINET IO controller / maximum1433 bayt
as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum256 bayt
as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum256 bayt
performance data / PROFINET communication / as PN IO device
product function / PROFINET IO deviceVar
as user data for input variables / as PROFINET IO device / maximum8192 bayt
as user data for output variables / as PROFINET IO device / maximum8192 bayt
as user data for input variables / for each sub-module as PROFINET IO device256 bayt
as user data for output variables / for each sub-module as PROFINET IO device256 bayt
as user data for the consistency area for each sub-module256 bayt
number of submodules / per PROFINET IO-Device32
performance data / telecontrol
TCP/IPVar
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
DCPVar
LLDPVar
requiredSTEP 7 Professional V18 (TIA Portal) veya üstü
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar; via S7-1500 CPU
product functions / switch
product feature / switchVar
switch-managedYok
with IRT / PROFINET IO switchVar
configuration with STEP 7Var
product functions / routing
service / routing / noteIP routing up to 1 Mbps
static IP routingVar
static IP routing IPv6Yok
dynamic IP routingYok
dynamic IP routing IPv6Yok
RIP v1Yok
RIPv2Yok
RIPnG for IPv6Yok
OSPFv2Yok
OSPFv3 for IPv6Yok
VRRPYok
VRRP for IPv6Yok
BGPYok
PPPYok
PPoE via DSLYok
product functions / redundancy
ring redundancyVar
redundancy managerVar
protocol / is supported / Media Redundancy Protocol (MRP)Var
product functions / security
switch-off of non-required servicesVar
blocking of communication via physical portsYok
log file for unauthorized accessYok
product functions / time
product function / SICLOCK supportVar
product function / pass on time synchronizationVar
NTPVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / cULus approvalVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total124,91 kg
during manufacturing21,24 kg
during operation103,32 kg
after end of life0,35 kg
Aksesuarlar 1
Siemens 6GK7542-1AX10-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6XV1812-8A | Aksesuar · Cables · power cables |
