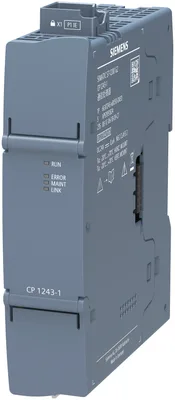

Siemens 6GK7243-1BX50-0XE0
CP 1243-1 - communications processor için expanding the SIMATIC S7-1200 G2 communication functions: network separation telecontrol protocols DNP3 mevcut soon: telecontrol protocol IEC 60870 ve Telecontrol temel Security (firewall, VPN) CloudConnect (MQTT)
product brand nameSIMATIC NET
at the 1st interface100 Mbit/s
for power supply1
type of voltage / of the supply voltageDC
power loss [W]2,5 W
protection class IPIP20
Ürün Hakkında
CP 1243-1 - communications processor için expanding the SIMATIC S7-1200 G2 communication functions: network separation telecontrol protocols DNP3 mevcut soon: telecontrol protocol IEC 60870 ve Telecontrol temel Security (firewall, VPN) CloudConnect (MQTT)
Siemens 6GK7243-1BX50-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet1
at the 1st interface / according to Industrial Ethernet1
for power supply1
at the 1st interface / according to Industrial EthernetRJ45 port
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / external / at DC / rated value24 V
supply voltage / external / at DC / rated value19,2... 28,8 V
from external supply voltage / at DC / at 24 V / typical0,1 A
power loss [W]2,5 W
ambient conditions
for vertical installation / during operation-20... +60 °C
for horizontally arranged busbars / during operation-20... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
width30 mm
height134 mm
depth100 mm
net weight0,18 kg
35 mm DIN-rail mountingVar
wall mountingVar
product features, product functions, product components / general
per CPU / maximum3
performance data / open communication
by means of T blocks / maximum40
performance data / S7 communication
maximum40
performance data / IT functions
as email client / maximum1
performance data / telecontrol
substationVar
DNP3Var
product function / data buffering if connection is abortedVar
number of data points per device / maximum500
product functions / management, configuration, engineering
SNMP v1Var
SNMP v3Var
DCPVar
LLDPVar
product function / is supported / identification linkVar
product functions / diagnostics
product function / web-based diagnosticsVar; via S7-1200 G2 CPU
product functions / time
NTPVar
from NTP-serverVar
from control centerVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / Environmental Product Declaration
total76,58 kg
during manufacturing8,9 kg
during operation67,4 kg
after end of life0,28 kg
Aksesuarlar 3
Siemens 6GK7243-1BX50-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7292-2AF50-0XA0 | Aksesuar · spare part | |
| 6GK7243-1BX50-0AP1 | Aksesuar | |
| 6GK7243-1BX50-0AP2 | Aksesuar |
