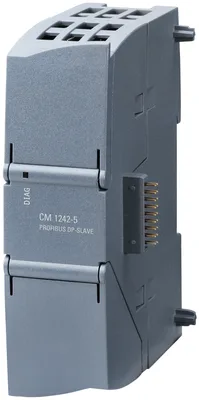

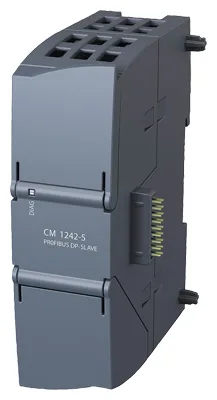

Siemens 6GK7242-5DX30-0XE0
communications modül CM 1242-5; için bağlantı of SIMATIC S7-1200 to PROFIBUS as DP slave modül.
product brand nameSIMATIC NET
for power supply0
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
power loss [W]0,75 W
during storage-40... +70 °C
Ürün Hakkında
communications modül CM 1242-5; için bağlantı of SIMATIC S7-1200 to PROFIBUS as DP slave modül.
Siemens 6GK7242-5DX30-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface / according to PROFIBUS9,6 kbit/s... 12 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet0
at the 1st interface / according to PROFIBUS1
for power supply0
at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
from backplane bus / at DC / at 5 V / typical0,15 A
power loss [W]0,75 W
ambient conditions
for vertical installation / during operation0... 45 °C
for horizontally arranged busbars / during operation0... 55 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

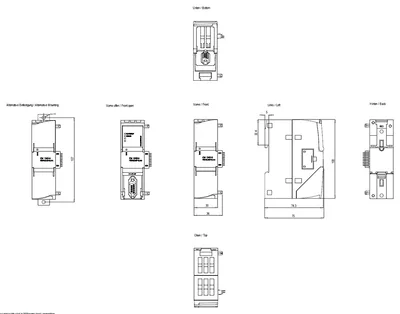

design, dimensions and weights
module formatCompact module S7-1200 single width
width30 mm
height100 mm
depth75 mm
net weight0,115 kg
35 mm DIN-rail mountingVar
S7-300 rail mountingYok
wall mountingVar
product features, product functions, product components / general
per CPU / maximum3
performance data / PROFIBUS DP
DPV0Var
DPV1Var
of the address range of the inputs / as DP device / total240 bayt
of the address range of the outputs / as DP device / total240 bayt
performance data / telecontrol
TCP/IPYok
product functions / management, configuration, engineering
requiredSTEP 7 Basic/Professional
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / marine classification / header
Marine classification association / American Bureau of Shipping Europe Ltd. (ABS)Var
Marine classification association / French marine classification society (BV)Var
Marine classification association / Det Norske Veritas (DNV)Var
Marine classification association / Lloyds Register of Shipping (LRS)Var
Marine classification association / Nippon Kaiji Kyokai (NK)Var
Marine classification association / Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total89,58 kg
during manufacturing14,29 kg
during operation75,11 kg
after end of life0,18 kg
Aksesuarlar 1
Siemens 6GK7242-5DX30-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6XV1812-8A | Aksesuar · Cables · power cables |
