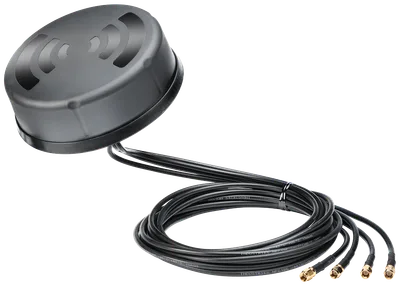

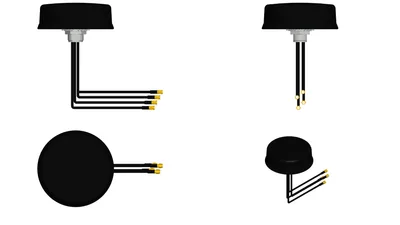

Siemens 6GK5897-4PY00-0HA0
Please observe national approvals: www.siemens.com/mobilenetwork-approvals 5G/4G/3G/2G networks in frekans range from 617 to 5925 MHz 4 antenna elements; omnidirectional characteristic antenna gain: 1..4 dBi; dahil 4x 5 m kablo ile SMA plug-in konnektör; IP65/IP67; -30..+70 °C exact specification ve national approvals to be observed
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks
operating frequency / 1617... 960 MHz
operating frequency / 21452... 2700 MHz
operating frequency / 33300... 5925 MHz
impedance50 Ω
Ürün Hakkında
Please observe national approvals: www.siemens.com/mobilenetwork-approvals 5G/4G/3G/2G networks in frekans range from 617 to 5925 MHz 4 antenna elements; omnidirectional characteristic antenna gain: 1..4 dBi; dahil 4x 5 m kablo ile SMA plug-in konnektör; IP65/IP67; -30..+70 °C exact specification ve national approvals to be observed
Siemens 6GK5897-4PY00-0HA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks
radio frequencies
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS, GSM
operating frequency / 1617... 960 MHz
operating frequency / 21452... 2700 MHz
operating frequency / 33300... 5925 MHz
electrical data
with linear radiationtypical maximum gain measured on metallic floor area Ø 0,35 m with cable length 0,3 m
with linear radiation / in operating frequency area 1 / typical1 dB
with linear radiation / in operating frequency area 2 / typical4 dB
with linear radiation / in operating frequency area 3 / typical4 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum2,5
number of electrical connections / of the antenna4
type of electrical connection / of the antennaSMA Connector
design of plug-in connectionmale
mechanical data
of outer shellPC+ABS
colorblack
ambient conditions
during operation-30... +70 °C
during storage-40... +85 °C
protection class IPIP65/67
design, dimensions and weights
height53 mm
diameter153 mm
net weight1340 g
fastening methodfrom outside in 32 mm drill hole, one stainless steel nut
mast mountingYok
flat roof mountingVar
wall mountingYok
roof mountingVar
directly on the deviceYok
cable designationJ195
wire length / of antenna cable5 m
product features, product functions, product components / general
product feature / silicon-freeYok
standards, specifications, approvals
RoHS conformityVar
