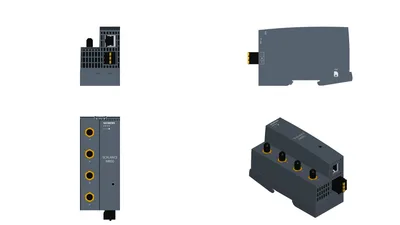

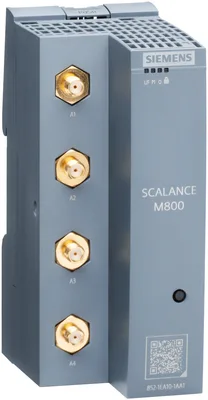

Siemens 6GK5852-1EA10-1BA1
SCALANCE MUB852-1 (B1) 5G router, IP20, için kablosuz IP communication from Ethernet-based applications via public 3G/4G/5G mobile radio networks ve private 5G networks, VPN (in combination ile SINEMA RC cihaz lisans), firewall, NAT, IPv6, bağlantı to SINEMA RC, 4 SMA connections, 1x nano SIM slot, 1x10/100/1000 Mbps RJ45 port, 24 V DC 0 to +55 °C, region sürüm B1 observe national approvals! siemens.com/mobile-approvals CERT ID: EL5G16R-20-M1-RJ-E4-2
product brand nameSCALANCE
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
for external antenna(s)4
for power supply1
for external antenna(s)SMA antenna socket (50 ohms)
for power supply3-pin terminal strip
Ürün Hakkında
SCALANCE MUB852-1 (B1) 5G router, IP20, için kablosuz IP communication from Ethernet-based applications via public 3G/4G/5G mobile radio networks ve private 5G networks, VPN (in combination ile SINEMA RC cihaz lisans), firewall, NAT, IPv6, bağlantı to SINEMA RC, 4 SMA connections, 1x nano SIM slot, 1x10/100/1000 Mbps RJ45 port, 24 V DC 0 to +55 °C, region sürüm B1 observe national approvals! siemens.com/mobile-approvals CERT ID: EL5G16R-20-M1-RJ-E4-2
Siemens 6GK5852-1EA10-1BA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
with UMTS transmission / with downlink / maximum42 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum1000 Mbit/s
for LTE transmission / with uplink / maximum200 Mbit/s
for 5G transmission / with downlink / maximum1000 Mbit/s
for 5G transmission / with uplink / maximum500 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum1
number of electrical/optical connections / for gigabit Ethernet / maximum1
for network components or terminal equipment1
for external antenna(s)4
for power supply1
for external antenna(s)SMA antenna socket (50 ohms)
for power supply3-pin terminal strip
memory
number of slots / for Micro-SIM card1
product component / eSIM integratedYok
design of the removable storage / CLPYok
WAN connection
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS
type of mobile wireless service / is supportedHSDPA, HSUPA, HSPA+
5G Standalone (SA)n1, n3, n5, n8, n28, n41, n77, n78, n79
5G Non-Standalone (NSA)n41, n78, n79
LTEB1, B3, B5, B8, B34, B38, B39, B40, B41
UMTSB1, B5, B8
supply voltage, current consumption, power loss
at DC / at 24 V0,3 A
at DC / at 24 V / typical7,2 W
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
ambient conditions
during operation0... 55 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
depth74 mm
height114 mm
width50 mm
net weight200 g
fastening methodmounting on DIN rail
35 mm DIN-rail mountingVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
type of authentication / with Virtual Private Network / PSKYok
IPsec tunnel and transport modeYok
main modeYok
quick modeYok
IETF profile / with Virtual Private Network / X.509v3 certificateYok
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
for EMCETSI EN 301 489-1, ETSI EN 301 489-19, ETSI EN 301 489-52, EN 55011, NAMUR NE21
EC Declaration of ConformityVar
CE markingVar
