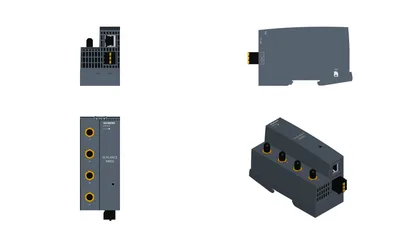

Siemens 6GK5852-1EA10-1AA1
SCALANCE MUB852-1 (A1) 5G router, IP20, için kablosuz IP communication from Ethernet-based applications via public 3G/4G/5G mobile radio networks ve private 5G networks, VPN (in combination ile SINEMA RC cihaz lisans) firewall, NAT, IPv6, bağlantı to SINEMA RC, 4 SMA connections, 1x nano SIM slot, 1x10/100/1000 Mbps RJ45 port, 24 V DC 0 to +55 °C, region sürüm A1 observe national approvals! siemens.com/mobile-approvals CERT ID: EL5G16R-20-M1-RJ-E4-1
product brand nameSCALANCE
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
for external antenna(s)4
for power supply1
for external antenna(s)SMA antenna socket (50 ohms)
for power supply3-pin terminal strip
Ürün Hakkında
SCALANCE MUB852-1 (A1) 5G router, IP20, için kablosuz IP communication from Ethernet-based applications via public 3G/4G/5G mobile radio networks ve private 5G networks, VPN (in combination ile SINEMA RC cihaz lisans) firewall, NAT, IPv6, bağlantı to SINEMA RC, 4 SMA connections, 1x nano SIM slot, 1x10/100/1000 Mbps RJ45 port, 24 V DC 0 to +55 °C, region sürüm A1 observe national approvals! siemens.com/mobile-approvals CERT ID: EL5G16R-20-M1-RJ-E4-1
Siemens 6GK5852-1EA10-1AA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
with UMTS transmission / with downlink / maximum42 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum1000 Mbit/s
for LTE transmission / with uplink / maximum200 Mbit/s
for 5G transmission / with downlink / maximum1000 Mbit/s
for 5G transmission / with uplink / maximum500 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum1
number of electrical/optical connections / for gigabit Ethernet / maximum1
for network components or terminal equipment1
for external antenna(s)4
for power supply1
for external antenna(s)SMA antenna socket (50 ohms)
for power supply3-pin terminal strip
memory
number of slots / for Micro-SIM card1
product component / eSIM integratedYok
design of the removable storage / CLPYok
WAN connection
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS
type of mobile wireless service / is supportedHSDPA, HSUPA, HSPA+
5G Standalone (SA)n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75(DL), n77, n78, n79
5G Non-Standalone (NSA)n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n66, n71, n77, n78, n79
LTEB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(DL), B48, B66, B71
UMTSB1, B2, B4, B5, B6, B8, B19
supply voltage, current consumption, power loss
at DC / at 24 V0,3 A
at DC / at 24 V / typical7,2 W
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
ambient conditions
during operation0... 55 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
depth74 mm
height114 mm
width50 mm
net weight200 g
fastening methodmounting on DIN rail
35 mm DIN-rail mountingVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
type of authentication / with Virtual Private Network / PSKYok
IPsec tunnel and transport modeYok
main modeYok
quick modeYok
IETF profile / with Virtual Private Network / X.509v3 certificateYok
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
for EMCETSI EN 301 489-1, ETSI EN 301 489-19, ETSI EN 301 489-52, EN 55011, NAMUR NE21
EC Declaration of ConformityVar
CE markingVar
