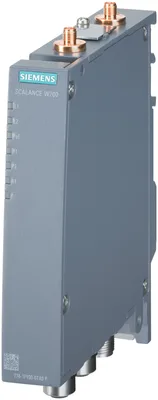

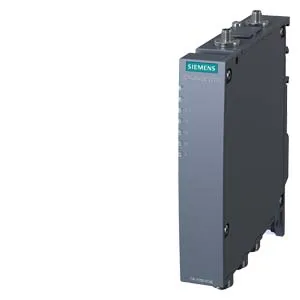

Siemens 6GK5774-1FY00-0TA0
Please observe national approvals: www.siemens.com/wireless-approvals W774-1 M12 EEC, 1 radio, 2 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE dahili 2-port anahtar, redundant 24 V DC,M12 A-coded IP30, -30... 65 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, observe national approvals! CERT ID: MSN-W1-M12-E2, scope of besleme: manuals on CD-ROM, German/English, M12 sealing caps, için çalışma outside of USA/Israel
product brand nameSCALANCE
with WLAN / maximum300 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
for power supply1
for redundant voltage supply1
for power supplyM12 interface (4-pole, A-coded)
Ürün Hakkında
Please observe national approvals: www.siemens.com/wireless-approvals W774-1 M12 EEC, 1 radio, 2 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE dahili 2-port anahtar, redundant 24 V DC,M12 A-coded IP30, -30... 65 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, observe national approvals! CERT ID: MSN-W1-M12-E2, scope of besleme: manuals on CD-ROM, German/English, M12 sealing caps, için çalışma outside of USA/Israel
Siemens 6GK5774-1FY00-0TA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
with WLAN / maximum300 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
interfaces
for network components or terminal equipment2
for power supply1
for redundant voltage supply1
for network components or terminal equipmentM12 interface (4-pole, D-coded), PoE
for power supplyM12 interface (4-pole, A-coded)
memory
C-PLUGVar
KEY-PLUGVar
interfaces / wireless
number of radio cards / permanently installed1
transmission mode / for multiple input multiple output (MIMO)2x2
number of spatial streams2
number of electrical connections / for external antenna(s)2
type of electrical connection / for external antenna(s)R-SMA (socket)
product feature / external antenna can be mounted directly on deviceVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
at DC / at 24 V / typical0,25 A
at DC / at 24 V / typical6 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical6 W
from M12 Power Connector (A-coded) for redundant power supply16,8 V
from M12 Power Connector (A-coded) for redundant power supply31,2 V
ambient conditions
during operation-30... +65 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum100 %
ambient condition / for operationWhen used under hazardous conditions (Zone 2), the SCALANCE W774-1 M12 EEC product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of least IP 54 in compliance with EN 60529.
protection class IPIP30
design, dimensions and weights
width26 mm
height156 mm
depth127 mm
width / of the enclosure / without antenna26 mm
height / of the enclosure / without antenna147 mm
depth / of the enclosure / without antenna127 mm
net weight0,52 kg
product feature / conformal coatingVar
fastening methodwall mounting only if flat mounted
S7-300 rail mountingVar
S7-1500 rail mountingVar
35 mm DIN-rail mountingVar
wall mountingVar
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4,9... 5,8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeVar
product function / client ModeVar
number of SSIDs4
iPCF Access PointVar; Only in combination with the 'KEY-PLUG W780 iFeatures'
iPCF clientVar; Only in combination with the 'KEY-PLUG W740 iFeatures'
iPCF-MC Access PointYok
iPCF-MC clientVar; Only in combination with the 'KEY-PLUG W740 iFeatures'
number of iPCF-capable radio modules1
product function / iREFVar; Only in combination with the 'KEY-PLUG W780 iFeatures' veya 'KEY-PLUG W740 iFeatures'
number of iREF-capable radio modules1
product function / iPRPVar; In combination with the 'KEY-PLUG W780 iFeatures' only
product functions / management, configuration, engineering
number of manageable IP addresses / in client8
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
operation with IWLAN controllerYok
operation with Enterasys WLAN controllerYok
forced roaming on IP down with IWLANVar
forced roaming on link down with IWLANVar
WDSVar
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPVar
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisVar
link checkYok
connection monitoring IP-AliveYok
localization via AeroscoutVar
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANVar
product functions / DHCP
DHCP clientVar
DHCP serverVar
DHCP Option 82Var
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
product functions / security
ACL - MAC-basedVar
management security, ACL-IP basedVar
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
TKIP/AESVar
SSHVar
RADIUSVar
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 Yok. 60950-1
EC Declaration of ConformityVar
CE markingVar
C-TickVar
E1 approvalVar
railway application in accordance with EN 50155Var
railway application in accordance with EN 50121-4Var
fire protection in accordance with EN 45545-2Var
NEMA TS2Yok
IEC 61375Yok
IEC 61850-3Yok
NEMA4XYok
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
Power-over-Ethernet according to IEEE802.3at for type 2Var
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Var
DNV GLVar
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
Polski Rejestr Statkow (PRS)Var
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 Yok.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480
certificate of suitability / CCC / for hazardous zone according to GB standardVar; GB3836.1, GB3836.8
as markingEx nA IIC T4 Gc
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total195,92 kg
during manufacturing29,7 kg
during operation166,06 kg
after end of life0,16 kg
