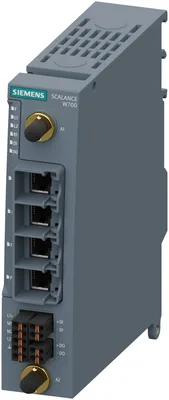

Siemens 6GK5763-1AL00-7DC0
Please observe national approvals: www.siemens.com/wireless-approvals sürüm, SCALANCE WAM763-1 ME, 1 radio, 2,4/5 GHz, IEEE 802.11ax (Wi-Fi 6), 2 R-SMA connections, iFeatures support via CLP, 1201 Mbps (gross), 4x10/100/1000 Mbps RJ45 ports, redundant 24 V DC, klemens bloğu, IP30, -30..+60 °C, CLP slot, DI/DO, klemens bloğu, observe national approvals! CERT ID: MSAX-W1-RJ-E2 çalışma in Egypt ve Israel. scope of besleme: kapak CLP slot, covers antenna connections, 3x klemens bloğu.
product brand nameSCALANCE
with WLAN / maximum1201 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
for power supply1
for redundant voltage supply1
for power supply5-pole terminal block
Ürün Hakkında
Please observe national approvals: www.siemens.com/wireless-approvals sürüm, SCALANCE WAM763-1 ME, 1 radio, 2,4/5 GHz, IEEE 802.11ax (Wi-Fi 6), 2 R-SMA connections, iFeatures support via CLP, 1201 Mbps (gross), 4x10/100/1000 Mbps RJ45 ports, redundant 24 V DC, klemens bloğu, IP30, -30..+60 °C, CLP slot, DI/DO, klemens bloğu, observe national approvals! CERT ID: MSAX-W1-RJ-E2 çalışma in Egypt ve Israel. scope of besleme: kapak CLP slot, covers antenna connections, 3x klemens bloğu.
Siemens 6GK5763-1AL00-7DC0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
with WLAN / maximum1201 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum / note4
number of electrical/optical connections / for gigabit Ethernet / maximum4
for network components or terminal equipment4
for power supply1
for redundant voltage supply1
for network components or terminal equipmentRJ45 socket
for power supply5-pole terminal block
memory
CLPVar
CLP iFeaturesVar
interfaces / wireless
number of radio cards / permanently installed2
transmission mode / for multiple input multiple output (MIMO)2x2
number of spatial streams2
number of electrical connections / for external antenna(s)2
type of electrical connection / for external antenna(s)R-SMA (socket)
product feature / external antenna can be mounted directly on deviceVar
signal inputs/outputs
number of digital inputs1
number of digital outputs1
type of electrical connection / at the digital inputs/outputs2-pole terminal block in her biri case
input voltage / at digital input / at DC-30... +30 V
output voltage / at digital output / at DC / maximum24 V; 0,5 A
operational current / of the signaling contacts / at DC / at 30 V / maximum0,008 A
supply voltage, current consumption, power loss
type of voltage / of the supply voltageredundant power supply, 24 V DC, 5-pole terminal block
at DC / at 24 V0,55 A
at DC / at 24 V / typical0,33 A
at DC / at 24 V / sleep mode / maximum0,013 A
at DC / at 24 V13,2 W
at DC / at 24 V / typical8 W
at DC / at 24 V / sleep mode / maximum0,3 W
supply voltage / 1 / rated value24 V
supply voltage / 1 / rated value16,8... 31,2 V
type of voltage / 1 / of the supply voltageDC
supply voltage / 2 / rated value24 V
supply voltage / 2 / rated value16,8... 31,2 V
type of voltage / 2 / of the supply voltageDC
ambient conditions
during operation-30... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum90 %
protection class IPIP30
design, dimensions and weights
width35 mm
height157 mm
depth137 mm
width / of the enclosure / without antenna35 mm
height / of the enclosure / without antenna152,5 mm
depth / of the enclosure / without antenna137 mm
net weight0,65 kg
fastening methodwall mounting, DIN rail, mounting rail S7-300, mounting rail S7-1500, with adapter: 90° installation on DIN rail
S7-300 rail mountingVar
S7-1500 rail mountingVar
35 mm DIN-rail mountingVar
wall mountingVar
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4,9... 5,8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeVar
product function / client ModeVar
number of SSIDs8
iPCF Access PointYok; iPCF-2 is not compatible with iPCF. See documentation for function description.
iPCF-2 access pointVar; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' veya 'SCALANCE CLP 2GB W700 Client iFeatures'
iPCF clientYok
iPCF-2 clientVar; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' veya 'SCALANCE CLP 2GB W700 Client iFeatures'
iPCF-MC Access PointYok
product function / iPRPVar
product functions / management, configuration, engineering
number of manageable IP addresses / in client2
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
WDSYok
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPVar
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisVar
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANVar
number of VLANs / maximum24
product functions / DHCP
DHCP clientVar
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
redundancy procedure MSTPVar
product functions / security
management security, ACL-IP basedYok
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
WPA3Var
TKIP/AESVar
RADIUS clientVar
SSHVar
with SSL4096 bit
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
EC Declaration of ConformityVar
CE markingVar
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
IEEE 802.11acVar
IEEE 802.11axVar
IEEE 802.11rVar
MTBF26 a
reference temperature40 °C
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc
from CSA and ULUL121201, CAN/CSA C22.2 Yok.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total390,86 kg
during manufacturing29,7 kg
during operation361 kg
after end of life0,16 kg
