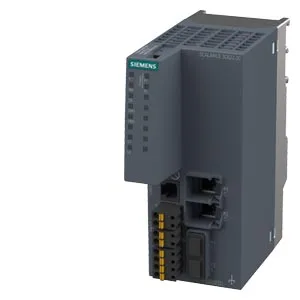

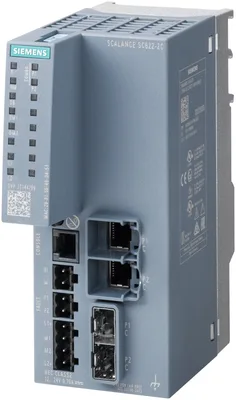

Siemens 6GK5622-2GS00-2AC2
SCALANCE SC622-2C Industrial Security Appliance; için koruma of devices ve networks in discrete manufacturing ve the process industry için koruma of the industrial communication ile firewall; further functions: network separation according to PROFIsafe; adres conversion (NAT/NAPT); bağlantı to SINEMA RC; 2x combo port electrical veya optical; 10/100/1000 Mbit/s RJ45 veya 1000 Mbit/s SFP.
product brand nameSCALANCE
transfer rate10, 100, 1000 Mbit/s
for signaling contact1
for power supply1
for redundant voltage supply1
for signaling contact2-pole terminal block
Ürün Hakkında
SCALANCE SC622-2C Industrial Security Appliance; için koruma of devices ve networks in discrete manufacturing ve the process industry için koruma of the industrial communication ile firewall; further functions: network separation according to PROFIsafe; adres conversion (NAT/NAPT); bağlantı to SINEMA RC; 2x combo port electrical veya optical; 10/100/1000 Mbit/s RJ45 veya 1000 Mbit/s SFP.
Siemens 6GK5622-2GS00-2AC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum2
number of electrical connections / for SFP+ / integrated1
number of combo ports / with RJ45 interface for optical plug-in transceiver1
for signaling contact1
for power supply1
for redundant voltage supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
design of the removable storage / C-PLUGVar
signal inputs/outputs
for digital input signals1
for digital input signals2-pole terminal block
for digital output signals2-pole terminal block
operating voltage / of the signaling contacts / at DC / rated value24 V
operational current / of the signaling contacts / at DC / maximum0,1 A
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value9,36 W
supply voltage / 1 / rated value9,6... 31,2 V
consumed current / 1 / maximum0,39 A
type of voltage / 2 / of the supply voltageDC
supply voltage / 2 / rated value24 V
power loss [W] / 2 / rated value9,36 W
supply voltage / 2 / rated value / minimum9,6 V
supply voltage / 2 / rated value / maximum31,2 V
consumed current / 2 / maximum0,39 A
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width60 mm
height145 mm
depth125 mm
net weight0,58 kg
fastening methodFixing bolt with additional screw protection
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product features, product functions, product components / general
product function / DynDNS clientVar
product function / for PROFIsafe networks / suitable for network separationVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TelnetYok
HTTPYok
HTTPSVar
TFTPVar
FTPVar
SFTPVar
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
type of configurationWBM, CLI, SNMP
PROFINET conformity classA
product functions / diagnostics
SysLogVar
packet filter logVar
audit logVar
system logVar
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicYok
number of VLANs / maximum257
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
DHCP Option 66Var
DHCP Option 67Var
product functions / routing
product function / static IP routingVar
protocol / is supported / VRRPVar
protocol / is supported / VRRP for IPv6Var
product function / static IP routing IPv6Var
protocol / is supported / OSPFv2Var
protocol / is supported / OSPFv3 for IPv6Var
product functions / security
firewall versionstateful inspection
product function / with VPN connectionOpenVPN (as client for SINEMA RC)
password protectionVar
bandwidth limitationYok
NAT/NAPTVar
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterVar
broadcast blockingVar
protocol / is supported / SSHVar
product functions / redundancy
standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
passive listeningVar
product functions / time
protocol / is supported / NTPVar
NTP-clientVar
NTP-serverVar
protocol / is supported / SNTPVar
SNTP clientVar
SNTP serverVar
product feature / hardware real time clock w. battery backupVar
standards, specifications, approvals
standard / for FMFM19US0167X
UKCA markingVar
for safety / from CSA and ULUL 60950 E115352 / CSA C22.2 no. 60950-1-03, CSA C22.2 no. 213-M1987 (available soon)
for emitted interferenceEN 61000-6-4: 2007
for interference immunityEN 61000-6-2: 2005
certificate of suitabilityAS/NZS 2064 (Class A), EN 61000-6-2, EN 61000-6-4
CE markingVar
CCCVar
MTBF34,99 a
standardEN/IEC 61709
reference temperature40 °C
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total281,4 kg
during manufacturing31,33 kg
during operation249,6 kg
after end of life0,47 kg
accessories
C-PLUGVar
