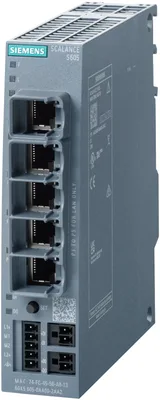

Siemens 6GK5605-0AA00-2AA2
SCALANCE S605 LAN router; IP20; için performing secure uzak access to system components via VPN (via SINEMA uzak Connect); further functions: adres conversion (NAT/NAPT), 5-port anahtar, 1x dijital giriş, 1x dijital çıkış, 5x10/100 Mbps RJ45 port, 24 V DC, -40... +70 °C
product brand nameSCALANCE
transfer rate10, 100 Mbit/s
for power supply1
for redundant voltage supply1
for power supply5-pole terminal block
design of the removable storage / C-PLUGVar
Ürün Hakkında
SCALANCE S605 LAN router; IP20; için performing secure uzak access to system components via VPN (via SINEMA uzak Connect); further functions: adres conversion (NAT/NAPT), 5-port anahtar, 1x dijital giriş, 1x dijital çıkış, 5x10/100 Mbps RJ45 port, 24 V DC, -40... +70 °C
Siemens 6GK5605-0AA00-2AA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate10, 100 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum5
for power supply1
for redundant voltage supply1
for power supply5-pole terminal block
design of the removable storage / C-PLUGVar
signal inputs/outputs
for digital input signals1
for digital output signals1
for digital input signals2-pole terminal block
for digital output signals2-pole terminal block
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value4 W
supply voltage / 1 / rated value10,8... 28,8 V
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageNon-replaceable melting fuse (F 2 A5 / 32 V)
consumed current / at DC / at 24 V / typical0,2 A
ambient conditions
during operation-40... +70 °C
during storage-40... +80 °C
during transport-40... +80 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

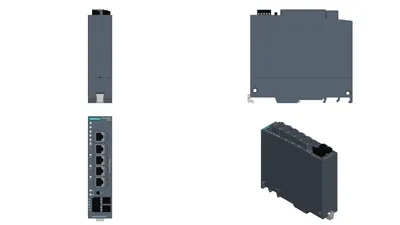

design, dimensions and weights
designcompact
width35 mm
height147 mm
depth127 mm
net weight0,4 kg
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
HTTPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
type of configurationWeb Based Management, CLI, SNMP, SCT (Configuration support for certificate generation)
product functions / diagnostics
SysLogVar
packet filter logVar
audit logVar
system logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
product function / static IP routingVar
protocol / is supported / VRRP for IPv6Yok
product functions / security
firewall versionstateful inspection
product function / with VPN connectionOpenVPN (as client for SINEMA RC)
password protectionVar
bandwidth limitationYok
NAT/NAPTVar
product functions / time
protocol / is supported / NTPVar
product component / hardware real time clockVar
product feature / hardware real time clock w. battery backupYok
standards, specifications, approvals
for safety / from CSA and ULUL 61010 E223122
for emitted interferenceEN 61000-6-4
for interference immunityEN 61000-6-2
certificate of suitabilityEMC, RoHS
CE markingVar
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
DNV GLYok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Royal Institution of Naval Architects (RINA)Yok
standards, specifications, approvals / hazardous environments
certificate of suitability / CCC / for hazardous zone according to GB standardYok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total141,25 kg
during manufacturing15,64 kg
during operation125,19 kg
after end of life0,42 kg
accessories
C-PLUGYok
KEY-PLUGVar
accessoriesoptional KEY-PLUG
