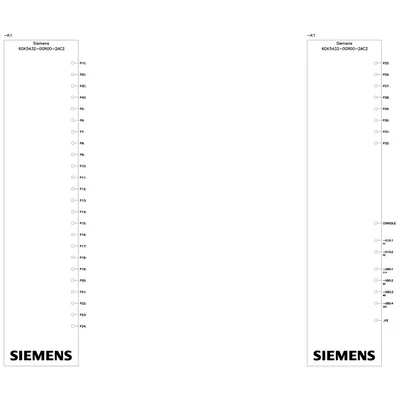

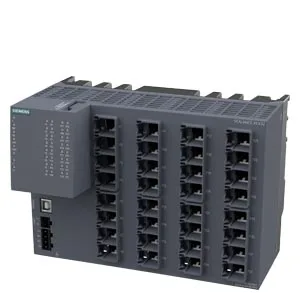

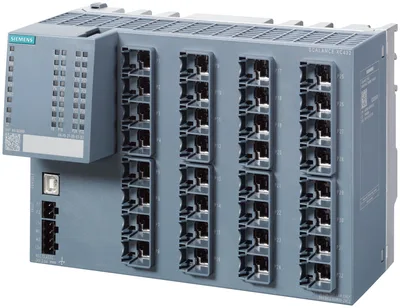

Siemens 6GK5432-0GR00-2AC2
SCALANCE XC432 managed Layer 3 IE anahtar, 32x 10/100/1000 Mbps RJ45 port, LED diagnostics, error-signaling kontak ile select/set buton, PROFINET IO cihaz; network management; redundancy functions; office features (RSTP, VLAN, IGMP,..); CLP included in scope of besleme; assembly: DIN rail/S7 montaj rail
product brand nameSCALANCE
product type designationXC432
transfer rate10, 100, 1000 Mbit/s
with securing collar32
for SFP0
for operator console1
Ürün Hakkında
SCALANCE XC432 managed Layer 3 IE anahtar, 32x 10/100/1000 Mbps RJ45 port, LED diagnostics, error-signaling kontak ile select/set buton, PROFINET IO cihaz; network management; redundancy functions; office features (RSTP, VLAN, IGMP,..); CLP included in scope of besleme; assembly: DIN rail/S7 montaj rail
Siemens 6GK5432-0GR00-2AC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXC432
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment32; RJ45 with securing collar
with securing collar32
for SFP0
interfaces / other
for operator console1
for signaling contact1
for power supply2
for operator consoleUSB (2,0 type B, USB-to-serial adapter)
for signaling contact2-pole terminal block
for power supply2 x 2-pole terminal block
CLPVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value43,2 W
power loss [W] / at DC / at 24 V / typical25,92 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum1,8 A
consumed current / at DC / at 24 V / typical1,08 A
type of electrical connection / 1 / for power supply2 x 2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 10 A / 250 V
ambient conditions
during operation-40... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
operating condition / fanless operationVar
protection class IPIP20
design, dimensions and weights
designcompact
width210 mm
height147 mm
depth125 mm
net weight2,04 kg
19-inch installationYok
35 mm DIN-rail mountingVar
wall mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
number of automatically learnable MAC addresses16382
number of QoS queues / per port8
QoS according to IEEE 802.1QVar
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum9194 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
SFTPVar
BOOTPVar
NETCONFYok
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicVar
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product function / VXLAN according to RFC 7348Var
product functions / DHCP
DHCP serverVar
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / routing
service / routing / noteIP routing dahili
static IP routingVar
static IP routing IPv6Yok
dynamic IP routingVar
dynamic IP routing IPv6Yok
RIPv2Var
RIPnG for IPv6Yok
OSPFv2Var
OSPFv3 for IPv6Yok
VRRPVar
VRRP for IPv6Yok
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
High-availability Seamless Redundancy (HSR)Var
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Var
passive listeningVar
STP/RSTPVar
STPVar
RSTPVar
MSTPVar
RSTP big network supportVar
LACPVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
IEEE 802.1x (radius)Var
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
IEEE 1588 v2 transparent forwardingVar
NTPVar
SNTPVar
not less than100 ns
typical50 ns
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1; CSA C22.2 Yok. 213-M1987
standards, specifications, approvals / hazardous environments
CCC / for hazardous zone according to GB standardVar
standards, specifications, approvals / other
railway application in accordance with EN 50125-3Var; Section 4,2: Class AX (up to 2000m); section 4,3: T1: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C, T2: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C, TX: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used --> only for variants with optical connections; In addition, depending on the installation position, the derating according to the manual must be taken into account; section 4,4: T1: Containers C.C. / Buildings N.C.C ve C.C., T2: Containers C.C. / Buildings N.C.C ve C.C, T3: Containers C.C. / Buildings N.C.C ve C.C; section 4,11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 61010-2-10; section 4,13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4,14: yes; section 4,15: yes, according to manual.
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total1244,3 kg
during manufacturing122,74 kg
during operation1120,64 kg
after end of life0,91 kg
product functions / general
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing122,74 kg
global warming potential [CO2 eq] / during operation1120,64 kg
global warming potential [CO2 eq] / after end of life0,91 kg
global warming potential [CO2 eq] / total1244,3 kg
