Siemens 6GK5408-8GS00-2AM2

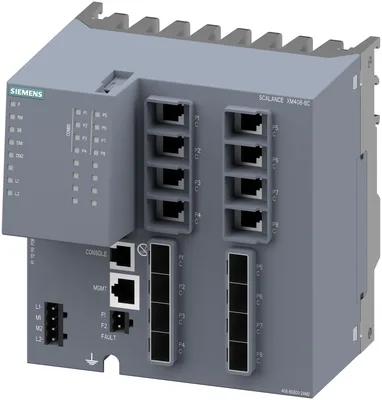

See SIOS ID 109983816 modular IE anahtar; 8x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP; contains 8 combo ports; in total 8 ports can be used; expandable to 24 ports electrical veya optical; assembly: DIN rail/S7 montaj rail, PROFINET IO cihaz; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-PLUG in scope of besleme; layer 3 ile Key-Plug plug mevcut.
product brand nameSCALANCE
product type designationXM408-8C
transfer rate10, 100, 1000 Mbit/s
with securing collar8
with securing collar16
with securing collar / with PoE16
Ürün Hakkında
See SIOS ID 109983816 modular IE anahtar; 8x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP; contains 8 combo ports; in total 8 ports can be used; expandable to 24 ports electrical veya optical; assembly: DIN rail/S7 montaj rail, PROFINET IO cihaz; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-PLUG in scope of besleme; layer 3 ile Key-Plug plug mevcut.
Siemens 6GK5408-8GS00-2AM2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXM408-8C
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment8; RJ45 with securing collar
with securing collar8
for SFP8; 100 Mbit/s veya 1000 Mbit/s SFP plug-in transceiver
number of combo ports / with RJ45 interface for optical plug-in transceiver8; 100 Mbit/s veya 1000 Mbit/s SFP plug-in transceiver
interfaces / for communication / plug-in
with securing collar16
with securing collar / with PoE16
for multimode24
for single mode (LD)24
for single mode (LH+)24
for single mode (ELH200)24
for multimode24
for single mode (LD)24
for single mode (LH)24
for single mode (LH+)24
for single mode (ELH)24
for SFP24
interfaces / other
for operator console1
for signaling contact1
for power supply1
for operator consoleRJ11
for management purposesRJ45
for signaling contact2-pole terminal block
number of extender expansion interfaces2
C-PLUGVar
product feature / hot-swappable interface modulesVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
per port / maximum30 W
total / maximum360 W
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value48 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum2 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 15 A / 125 V
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designmodular
width140 mm
height147 mm
depth125 mm
net weight1,15 kg
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
telegram length / for Ethernet / maximum9216 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
BOOTPVar
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedVar
VLAN - IP-basedVar
VLAN dynamicVar
number of VLANs / maximum255
number of VLANs - dynamic / maximum255
product functions / DHCP
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / routing
service / routing / noteIP routing in combination with KEY-PLUG XM-400
static IP routingVar
static IP routing IPv6Var
dynamic IP routingVar
dynamic IP routing IPv6Var
RIPv2Var
RIPnG for IPv6Var
OSPFv2Var
OSPFv3 for IPv6Var
VRRPVar
VRRP for IPv6Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
passive listeningVar
LACPVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
IEEE 802.1x (radius)Var
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
NTPVar
SNTPVar
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'Yok' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Chinese Classification Society (CCS)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Var
product functions / general
MTBF28 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
