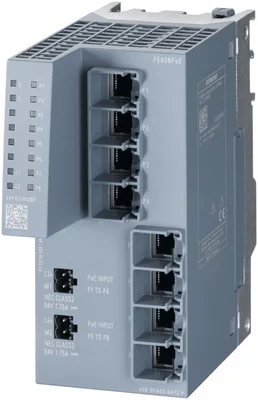

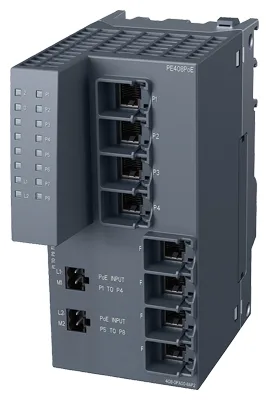

Siemens 6GK5408-0PA00-8AP2
See SIOS ID 109983816 SCALANCE XM-400 managed modular IE anahtar; extension by 8x 10/100/1000 Mbit/s RJ45 ile en çok 8 ports PoE according to IEEE802.3AT; için PoE separate güç kaynağı required.
product brand nameSCALANCE
product type designationPE408PoE
transfer rate10, 100, 1000 Mbit/s
with securing collar / with PoE8
for power supply2-pole terminal block
number of extender expansion interfaces2
Ürün Hakkında
See SIOS ID 109983816 SCALANCE XM-400 managed modular IE anahtar; extension by 8x 10/100/1000 Mbit/s RJ45 ile en çok 8 ports PoE according to IEEE802.3AT; için PoE separate güç kaynağı required.
Siemens 6GK5408-0PA00-8AP2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationPE408PoE
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment8
for Power-over-Ethernet / for network components or terminal equipment8
with securing collar / with PoE8
interfaces / other
for power supply2-pole terminal block
number of extender expansion interfaces2
product feature / hot-swappable interface modulesVar
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
per port / maximum30 W
total / maximum180 W
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value54 V
power loss [W] / 1 / rated value4,8 W
supply voltage / 1 / voltage range51,3... 56,7
consumed current / 1 / maximum0,2 A
type of electrical connection / 1 / for power supply2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 4 A / 60 V
ambient conditions
during operation-40... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designSIMATIC S7-1500 device design
width70 mm
height147 mm
depth125 mm
net weight0,65 kg
19-inch installationYok
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingVar
S7-1500 rail mountingVar
product functions / management, configuration, engineering
PROFINET conformity classB
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
railway application in accordance with EN 50121-4Var
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'Yok' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Chinese Classification Society (CCS)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Var
product functions / general
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Aksesuarlar 1
Siemens 6GK5408-0PA00-8AP2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
