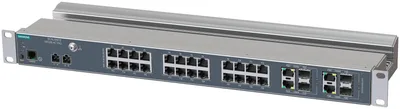

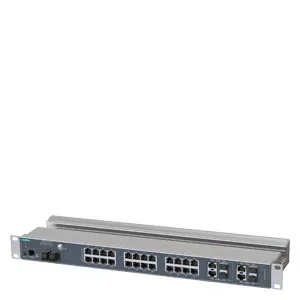

Siemens 6GK5328-4FS00-2RR3
SCALANCE XR328-4C WG; managed IE switch; 19" rack; 24 x 10/100 Mbit/s electrical ports; 4 x 1000 Mbit/s combo ports electrical or optical; LED diagnostics; reset button; console port; PROFINET device; network management function; redundancy manager; no UL/FM approval; power supply 24 V DC; IEC 62443-4-2 certified;
product brand nameSCALANCE
product type designationXR328-4C WG
transfer rate10, 100, 1000 Mbit/s
number of 10/100 Mbit/s RJ45 ports24
for operator console1
for power supply1
Ürün Hakkında
SCALANCE XR328-4C WG; managed IE switch; 19" rack; 24 x 10/100 Mbit/s electrical ports; 4 x 1000 Mbit/s combo ports electrical or optical; LED diagnostics; reset button; console port; PROFINET device; network management function; redundancy manager; no UL/FM approval; power supply 24 V DC; IEC 62443-4-2 certified;
Siemens 6GK5328-4FS00-2RR3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXR328-4C WG
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment28; RJ45
number of 10/100 Mbit/s RJ45 ports24
number of combo ports / with RJ45 interface for optical plug-in transceiver4; 1000 Mbit/s SFP plug-in transceiver veya 100 Mbit/s via SCALANCE SFP991-1 (LD) A
interfaces / other
for operator console1
for power supply1
for power supply2 x 2-pole terminal block
supply voltage, current consumption, power loss
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value12 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,5 A
type of electrical connection / 1 / for power supply2 x 2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 5 A / 60 V
ambient conditions
during operation0... 60 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP30
design, dimensions and weights
design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width483 mm
height44 mm
depth127 mm
net weight2,8 kg
material / of the enclosuremetal
19-inch installationVar
35 mm DIN-rail mountingYok
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
port mirroringVar
multiport mirroringYok
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETII
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
BOOTPVar
GMRPYok
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicVar
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure MSTPYok
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
STP/RSTPVar
STPVar
RSTPVar
MSTPYok
RSTP big network supportVar
LACPYok
product functions / security
IEEE 802.1x (radius)Var
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
product functions / time
SICLOCK supportVar
NTPVar
SNTPVar
IEEE 1588 profile defaultYok
standards, specifications, approvals
CE markingVar
UKCA markingVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class B)
for immunity to EMCEN 61000-6-2
standards, specifications, approvals / other
railway application in accordance with EN 50155Yok
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total438,45 kg
during manufacturing109,07 kg
during operation328,83 kg
after end of life0,55 kg
product functions / general
MTBF43 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing109,07 kg
global warming potential [CO2 eq] / during operation328,83 kg
global warming potential [CO2 eq] / after end of life0,55 kg
global warming potential [CO2 eq] / total438,45 kg
