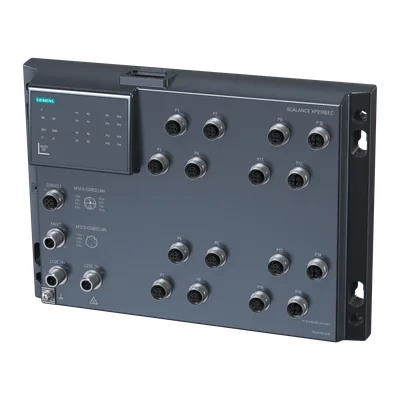

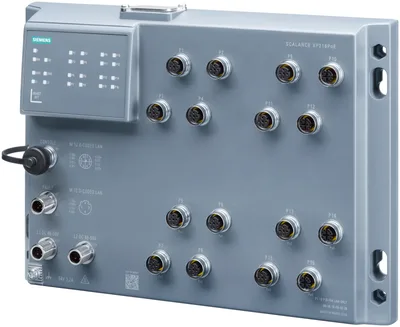

Siemens 6GK5216-0HA00-2ES6
SCALANCE XP216EEC, managed IE anahtar, ile railway approval IEC 62443-4-2 certified; (EN 50155, EN45545); 12x 10/100 Mbit/s M12 ports, 4x 10/100/1000 Mbit/s M12 ports IP65, LED diagnostics, error sinyalizasyon kontak, yedekli besleme besleme, PROFINET IO cihaz, network management, can be operated in redundant ring, incl. dust caps, dahil elektronik manuel on CD-ROM, C-PLUG optional.
product brand nameSCALANCE
product type designationXP216EEC
transfer rate10, 100, 1000 Mbit/s
for operator console1
for signaling contact1
for power supply2
Ürün Hakkında
SCALANCE XP216EEC, managed IE anahtar, ile railway approval IEC 62443-4-2 certified; (EN 50155, EN45545); 12x 10/100 Mbit/s M12 ports, 4x 10/100/1000 Mbit/s M12 ports IP65, LED diagnostics, error sinyalizasyon kontak, yedekli besleme besleme, PROFINET IO cihaz, network management, can be operated in redundant ring, incl. dust caps, dahil elektronik manuel on CD-ROM, C-PLUG optional.
Siemens 6GK5216-0HA00-2ES6
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXP216EEC
transfer rate
transfer rate10, 100, 1000 Mbit/s

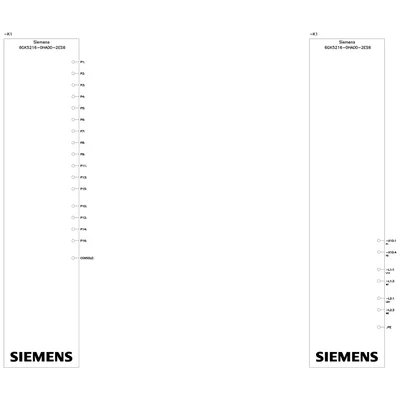

interfaces / for communication / integrated
for network components or terminal equipment16; M12
number of 10/100 Mbit/s M12-ports (D-coded)12
number of 10/100/1000 Mbit/s M12-ports (X-coded)4
interfaces / other
for operator console1
for signaling contact1
for power supply2
for operator console5-pole M12 socket (A-coded)
for signaling contact5-pole M12 plug (B-coded)
for power supply4-pole M12 plug (A-coded)
C-PLUGVar
product function / device replacement with replacement of the storage mediumVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V; XP-200EEC with EN 50155 supports the voltage range 16,8... 30 V DC
power loss [W] / 1 / rated value8 W
consumed current / 1 / at rated supply voltage / maximum0,4 A
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,335 A
type of electrical connection / 1 / for power supply4-pole M12 plug (A-coded)
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage5 A / 60 V
ambient conditions
during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
noteEEC variants with EN 50155 support for 10 minutes: -40 °C... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP65

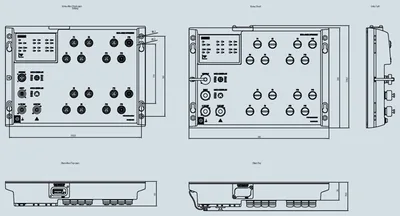

design, dimensions and weights
designcompact
width280 mm
height200 mm
depth49 mm
net weight2,5 kg
product feature / conformal coatingVar
material / of the enclosureAluminum
fastening methodET200pro module carrier
wall mountingVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
QoS according to DSCPVar
Cut Through switching methodYok
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
SMTP serverYok
port mirroringVar
multiport mirroringVar
CoSVar
with IRT / PROFINET IO switchYok
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETII
telegram length / for Ethernet / maximum1518 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
SFTPVar
BOOTPVar
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP serverVar
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
NTPVar
SNTPVar
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
railway application in accordance with EN 50155Var; OT4, ST1, H1, S2, C1, L4, PC2
railway application in accordance with EN 50121-4Var
railway application in accordance with EN 50124-1Var
fire protection in accordance with EN 45545-2Var; Class HL1 - HL3
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total283,14 kg
during manufacturing61,47 kg
during operation220,84 kg
after end of life0,27 kg
product functions / general
MTBF39 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing61,47 kg
global warming potential [CO2 eq] / during operation220,84 kg
global warming potential [CO2 eq] / after end of life0,27 kg
global warming potential [CO2 eq] / total283,14 kg
