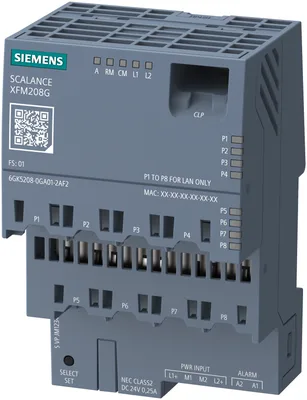

Siemens 6GK5208-0GA01-2AF2
SCALANCE XFM208G flat managed layer 2 IE switch; 8 x 1 Gbps RJ45 ports; redundant 24 V DC power supply; temperature range -40 °C to +60 °C; SINEC OS; PROFINET IO device CC-B; CLP slot; DIN-rail mounting;
product brand nameSCALANCE
product type designationXFM208G
transfer rate10, 100, 1000 Mbit/s
with securing collar8
for signaling contact1
for power supply1
Ürün Hakkında
SCALANCE XFM208G flat managed layer 2 IE switch; 8 x 1 Gbps RJ45 ports; redundant 24 V DC power supply; temperature range -40 °C to +60 °C; SINEC OS; PROFINET IO device CC-B; CLP slot; DIN-rail mounting;
Siemens 6GK5208-0GA01-2AF2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXFM208G
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment8; RJ45
with securing collar8
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
CLPVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value6,5 W
power loss [W] / at DC / at 24 V / typical6 W
supply voltage / 1 / voltage range19,2... 31,2
consumed current / 1 / maximum0,27 A
consumed current / at DC / at 24 V / typical0,25 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 1,5 A / 250 V
ambient conditions
during operation-40... +60 °C
during storage-40... +70 °C
during transport-40... +85 °C
noteduring transport >1 year maks. +40°C
ambient temperature / in horizontal mounting position / during operation-40... +60 °C; Starting -40 °C; The maximum ambient temperature during operation depends on the operating height ve the plug-in transceivers, see also manual.
installation altitude / at height above sea level / maximum4000 m
at 25 °C / without condensation / during operation / maximum95 %
operating condition / fanless operationVar
protection class IPIP20

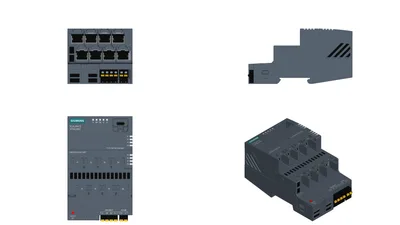

design, dimensions and weights
designflat
width75 mm
height120 mm
depth64 mm
net weight0,221 kg
material / of the enclosurePolycarbonate (PC-GF10)
fastening method35 mm DIN rail according to EN 60715
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
type of cable outletcable outlet bottom
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
QoS according to DSCPVar
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONYok
SMTP serverYok
port mirroringVar
multiport mirroringYok
Encapsulated Remote Traffic Mirroring (ERTM)Yok
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum2048 bayt
TelnetYok
HTTPVar
HTTPSVar
TFTPVar
FTPVar
SFTPVar
BOOTPYok
NETCONFVar
GMRPVar
DCPVar
LLDPVar
EtherNet/IPYok
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicVar
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP serverYok
DHCP clientVar
DHCP Option 82Yok
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Yok
Media Redundancy Protocol for Planned Duplication (MRPD)Yok
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerYok
high speed redundancy protocol (HRP) with standby redundancyYok
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Yok
redundancy procedure MSTPVar
passive listeningVar
eRSTPYok
STP/RSTPVar
STPYok
RSTPVar
MSTPVar
LACPYok
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
product conformity / according to IEEE 802.1X-port based Network Access ControlVar
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
RADIUSVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientYok
NTPVar
SNTPVar
IEEE 1588 profile defaultYok
standards, specifications, approvals
CE markingVar
UKCA markingVar
Regulatory Compliance Mark (RCM)Var
product conformity / according to EMC-guideline2014/30/EU
for EMC interference emissionEN 61000-6-4
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULin preparation
standards, specifications, approvals / other
RoHS conformityVar
IT security for industrial automation systems / according to IEC 62443-4-2:2019Yok
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteavailable soon
standards, specifications, approvals / Environmental Product Declaration
Siemens eco profile (SEP)available soon
product functions / general
MTBF47 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkVar
Aksesuarlar 76
Siemens 6GK5208-0GA01-2AF2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0AQ10 | Aksesuar | |
| 6GK5980-3BC00-0AA5 | Aksesuar · Cables · serial cable | |
| 6GK5980-2FA00-0AA0 | Aksesuar | |
| 6ES7194-4GA00-0AA0 | Aksesuar · Module rack | |
| 6GK1907-0DC00-6AA5 | Aksesuar | |
| 6GK1907-0DB10-6AA3 | Aksesuar | |
| 6GK1907-0DC10-6AA3 | Aksesuar | |
| 6GK1908-0DC10-6AA3 | Aksesuar | |
| 6GK1901-0DB20-6AA8 | Aksesuar | |
| 6GK1901-0DB20-6AA0 | Aksesuar | |
| 6XV1801-5AH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN15 | Aksesuar · Cables · power cables | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5MH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DE10-6AA0 | Aksesuar | |
| 6GK1901-0DE20-6AA0 | Aksesuar | |
| 6GK1901-0DM20-2AA5 | Aksesuar | |
| 6GK1901-0DM30-2AA5 | Aksesuar | |
| 6XV1801-2A | Aksesuar · Cables · power cables | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1876-2A | Aksesuar · Cables · network cable electrical | |
| 6XV1876-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DE11-6AA0 | Aksesuar | |
| 6GK1901-0DE21-6AA0 | Aksesuar |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
İlgili Aramalar
Siemens 6GK5208-0GA01-2AF2 fiyatSiemens 6GK5208-0GA01-2AF2 teklif alSiemens 6GK5208-0GA01-2AF2 satın al6GK5208-0GA01-2AF2 fiyat6GK5208-0GA01-2AF2 stok durumuSiemens yedek parçaSiemens 6GK5208-0GA01-2AF2 muadilSiemens 6GK5208-0GA01-2AF2 teknik özellikler
