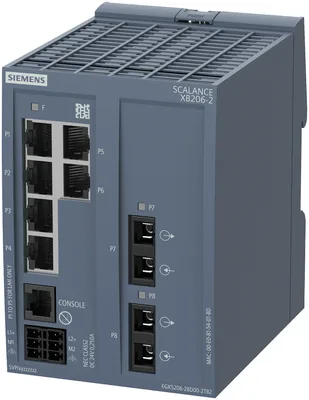

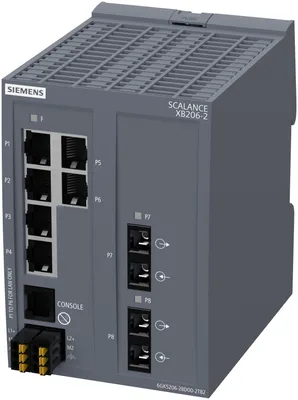

Siemens 6GK5206-2BD00-2TB2
SCALANCE XB206-2 managed Layer 2 IE anahtar 6x 10/100 Mbps RJ45 ports 2x MM FO SC port 1x console port, diagnostics LED yedekli besleme besleme; IEC 62443-4-2 certified; sıcaklık range 0 °C to +60 °C; DIN-rail montaj; PROFINET IO cihaz; EtherNet/IP-compliant; default EtherNet/IP
product brand nameSCALANCE
product type designationXB206-2 (E/IP def.)
transfer rate10, 100 Mbit/s
for multimode2
for operator console1
for power supply1
Ürün Hakkında
SCALANCE XB206-2 managed Layer 2 IE anahtar 6x 10/100 Mbps RJ45 ports 2x MM FO SC port 1x console port, diagnostics LED yedekli besleme besleme; IEC 62443-4-2 certified; sıcaklık range 0 °C to +60 °C; DIN-rail montaj; PROFINET IO cihaz; EtherNet/IP-compliant; default EtherNet/IP
Siemens 6GK5206-2BD00-2TB2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXB206-2 (E/IP def.)
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment6; RJ45
for multimode2
transmission method / of the optical interface100BaseFX
interfaces / other
for operator console1
for power supply1
for operator consoleRJ11
for management purposesRJ45
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value7,2 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,3 A
type of electrical connection / 1 / for power supply6-pole terminal block
product component / 1 / fusing at power supply inputVar
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width80 mm
height117 mm
depth109 mm
net weight0,35 kg
material / of the enclosurePolycarbonate (PC-GF10)
35 mm DIN-rail mountingVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
telegram length / for Ethernet / maximum1632 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
SFTPVar
BOOTPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP clientVar
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / PROFINET system redundancyYok
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
passive listeningVar
product functions / security
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
SNTPVar
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / hazardous environments
CCC / for hazardous zone according to GB standardVar
standards, specifications, approvals / other
RoHS conformityVar
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total266,77 kg
during manufacturing40,94 kg
during operation225,32 kg
after end of life0,51 kg
product functions / general
MTBF55 a
warranty period5 a
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing40,94 kg
global warming potential [CO2 eq] / during operation225,32 kg
global warming potential [CO2 eq] / after end of life0,51 kg
global warming potential [CO2 eq] / total266,77 kg
